PUSHEN ZQ-V Conical Mandrel Bending Tester Taper Shaft Bending Tester Taper Shaft Φ 3.1~ 38mm

Name: PUSHEN ZQ-V Conical Mandrel Bending Tester Taper Shaft Bending Tester Taper Shaft Φ 3.1~ 38mm
Brand: Pushen
SKU: NB019519
Price: 662.0 USD
Availability: InStock

$ 662.00Ex works

The cone shaft is used to test the anti-cracking performance of coatings with different curvatures. The size of the cone shaft is Φ 3.1~ 38mm, the volume is small and the weight is light, which is convenient for laboratory and field use.

Model

ZQ-V

Get Quote

Category : Bend Tester

Brand : Pushen

SKU : NB019519

Service :The delivery and service By NBCLab.Com

Overview

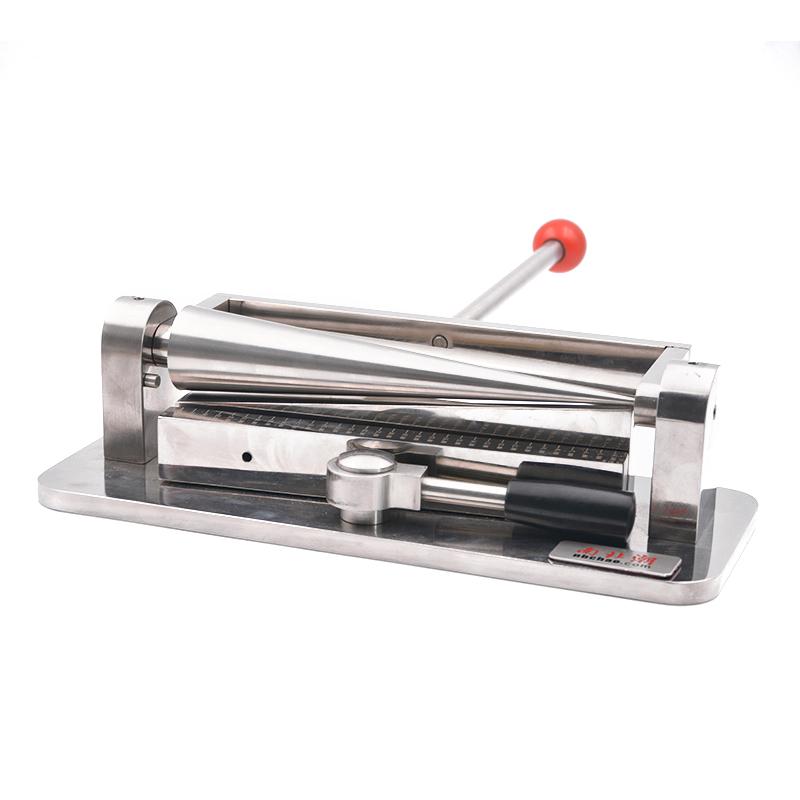

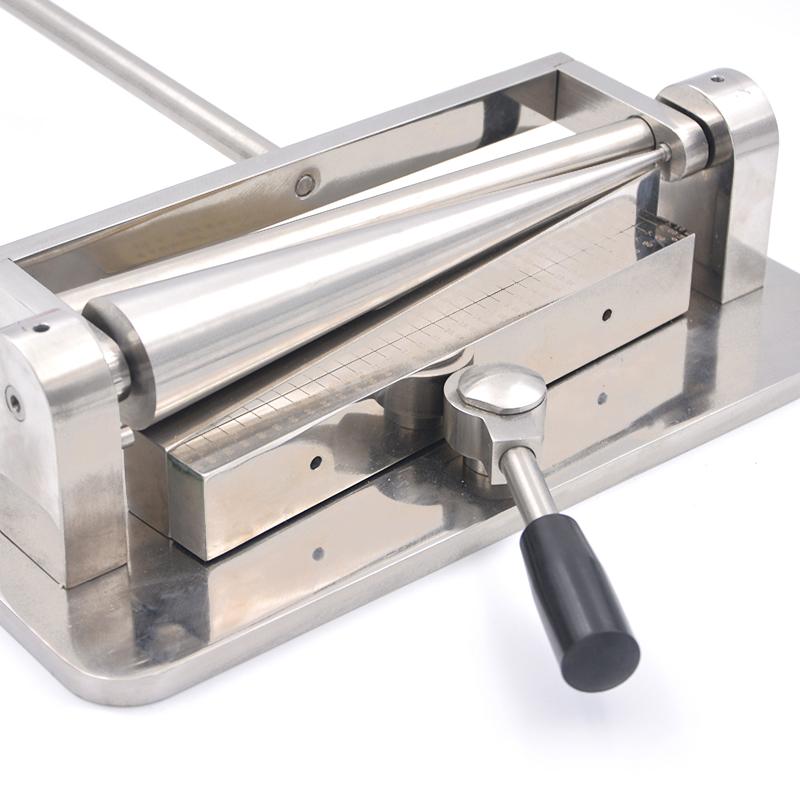

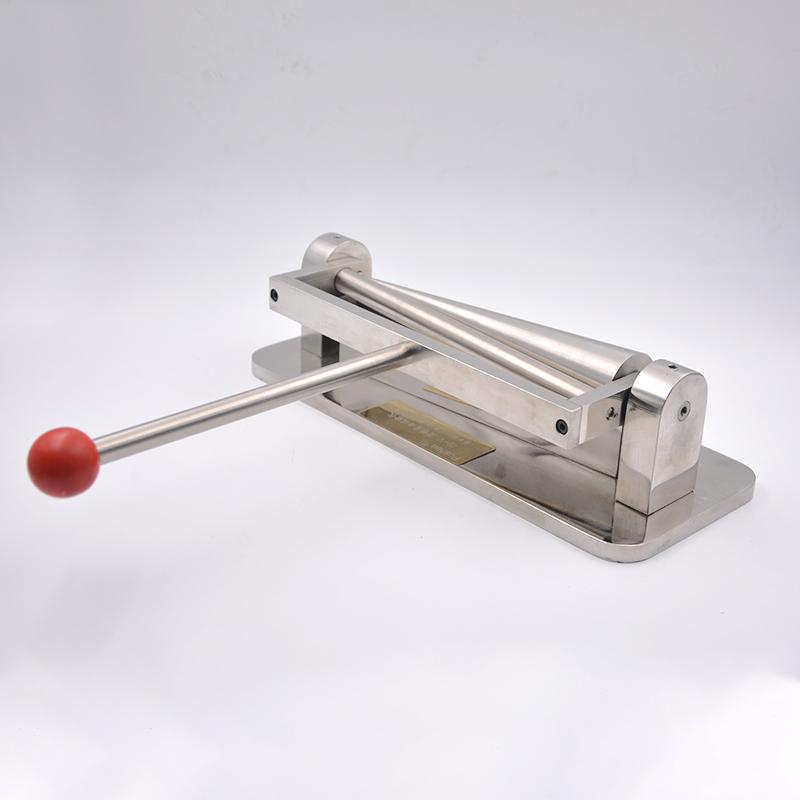

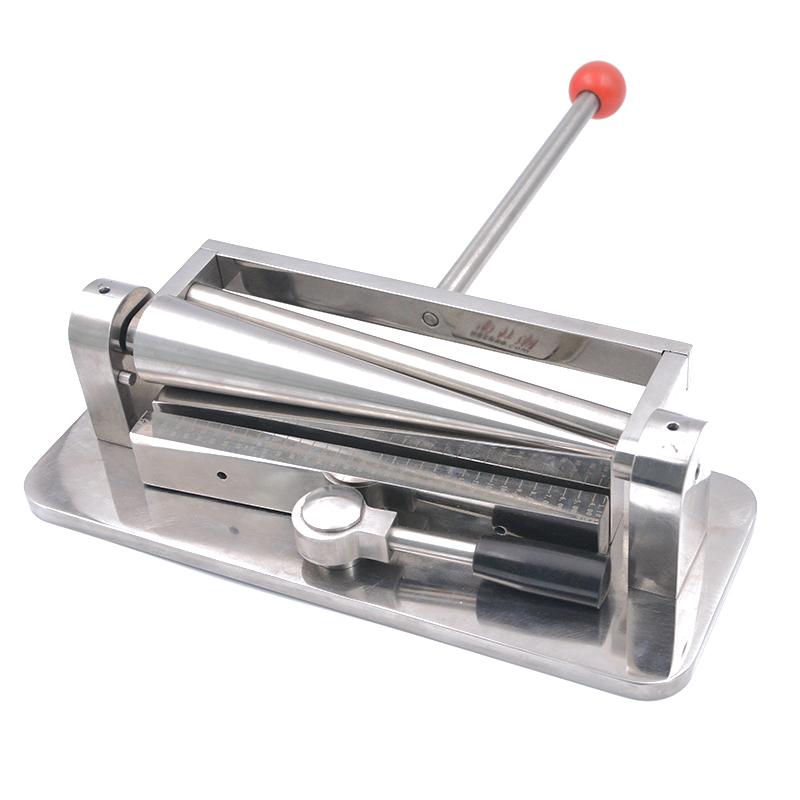

The ZQ-V Conical Mandrel Bending Tester is a device from the PUSHEN brand for measuring coating resilience. It checks for cracking, flaking or Miscellaneous damage of coatings according to the scale ruler by placing the test plate on a cone of known diameter and bending. The instrument is designed and manufactured according to GB11185-89 and ISO6860-1984 standards, and is small in size and light in weight. It is suitable for testing in laboratories and construction sites.

Features

1. Simple and fast measurement of coating resilience method; 2. Small size, light weight, easy to carry and use; 3. Suitable for laboratory and construction site; 4. Different curvature of cone shaft to test coating performance.

Principle

The instrument uses different curvature of the tapered shaft to bend the coating plate around the shaft under standard conditions to test its performance against cracking or disbonding from the metal baseplate.

Standards

GB/T 11185、ISO 6860

Steps

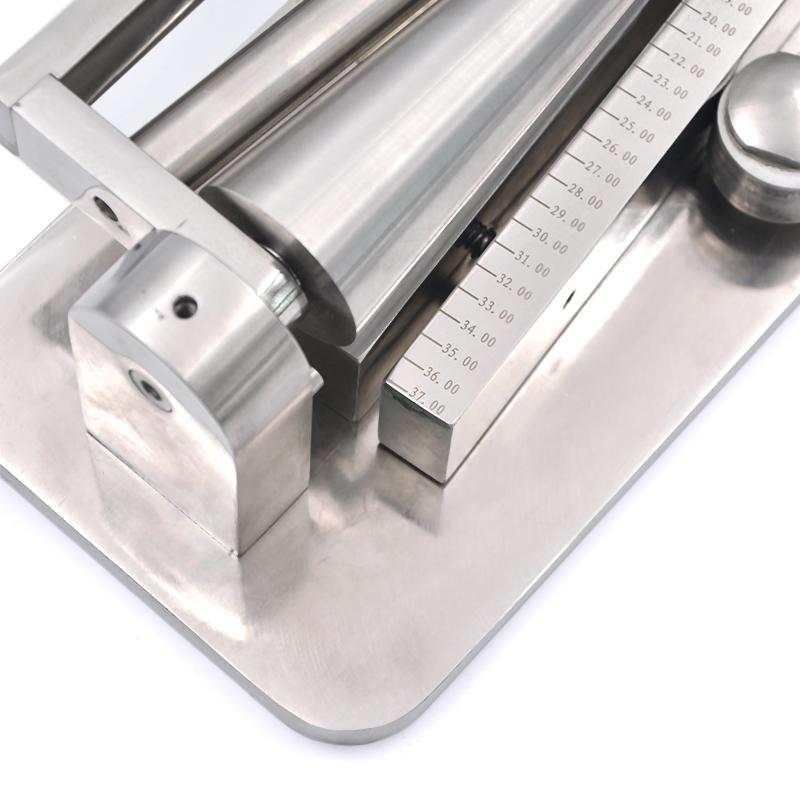

1. Bend the test plate on a cone of known diameter; 2. Check the cracking, flaking or Miscellaneous damage of the coating according to the scale.

Notice

• Ensure that the test board is placed correctly; • Test under standard conditions; • Regularly check the accuracy of the instrument scale.

Taper shaft Size
Φ3.1~38mm
Dimension
300*120*340mm
Shipment weight
10kg
Meet the standard
GB/T 11185、ISO 6860

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
