Overview

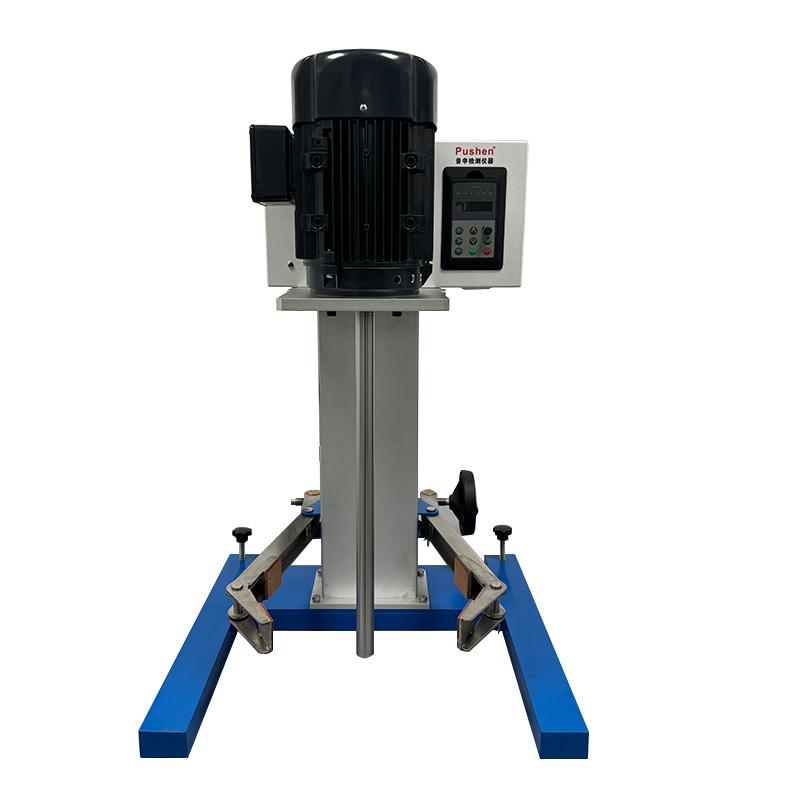

The WJ-1.1A Stirring Disperser is a laboratory equipment of the PUSHEN brand for dispersing and stirring liquid materials at low speeds. The machine uses frequency conversion electromechanical technology, operates quietly and with low noise, and is equipped with electric lifting function.
Features
1. Adopt frequency conversion electromechanical, quiet operation and low noise
2. Easy operation of electric lift
3. Motor Power 1100W, sufficient power
4. Speed range 0-3000rpm to meet different process requirements
5. Travel 400mm, adapt to different container heights
6. The diameter of the dispersion matte disc is 120mm, and the dispersion effect is good
Principle
The device drives the spindle swirl/spin through a variable frequency motor to drive the impeller to stir and disperse in the liquid material. The electric lifting system can adjust the position of the impeller in the container, and achieve dispersion and stirring effects of different intensities by adjusting the Rotation speed.
Applications
Laboratory liquid material dispersion, laboratory liquid material mixing
Standards
GB/T 21868.3、ISO 8780-3
Steps
1. Connect the 220V AC 50Hz power supply
2. Adjust impeller height as needed
3. Set the appropriate Rotation speed parameters
4. Start the equipment for dispersion or mixing operations
5. Turn off the power after the job is completed
Notice
• Power supply voltage meets 220V AC 50Hz requirements before use
• Pay attention to safety during operation and avoid contact with swirling/spinning parts
• Speed range according to material characteristics
• Regularly check the operating status of the equipment
• Keep the equipment clean to avoid material residue
