Overview

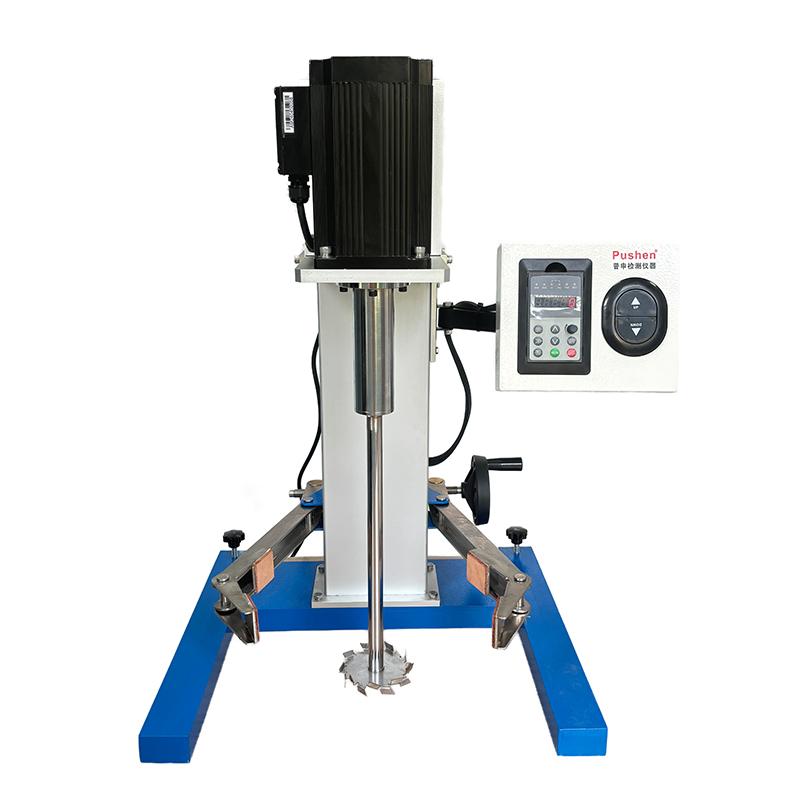

WJ mixing and dispersing multi-purpose machine is a laboratory equipment of PUSHEN brand, model WJ-2.2 (Taiwan motor), which is used for dispersing and stirring liquid materials at medium and low speed in the laboratory. The equipment adopts frequency conversion electromechanical, which runs quietly and has low noise, and is equipped with electric lifting function.
Features
1. Adopt frequency conversion electromechanical, quiet operation and low noise
2. Easy operation of electric lift
3. Motor Power 2200W, Processing capacity 0~ 20L
4. Speed range 300~ 6000rpm, adapt to different process requirements
5. impeller diameter φ 120mm, lifting Travel 400mm
6. Power supply voltage 220V AC 50Hz, Dimension 590 * 550 * 850mm, host weight 45kg
Principle
The WJ stirring and dispersing multi-purpose machine drives the spindle swirl/spin through the frequency conversion electromechanical drive, and the impeller produces shear and dispersion in the liquid material to achieve uniform mixing of the material. The electric lifting mechanism can adjust the position of the impeller in the container to adapt to different processing needs.
Standards
GB/T 21868.3、ISO 8780-3
Steps
1. Connect the power supply and ensure that the voltage is 220V AC 50Hz.
2. Put the material into the container, Processing capacity does not exceed 20L
3. Use the electric lift to adjust the impeller position to the appropriate height
4. Set the speed regulation range between 300 and 6000 rpm, and start the equipment to disperse or stir
5. Turn off the power after the operation is completed and clean the equipment
Notice
• Power supply voltage meets 220V AC 50Hz requirements to avoid overload
• Processing capacity should not exceed 20L to prevent equipment overload
• Keep within the range of 300~ 6000rpm when adjusting the speed to avoid exceeding the limit
• Check whether the electric lifting function is normal before operation to ensure safety
• Regularly clean and maintain equipment to extend service life
