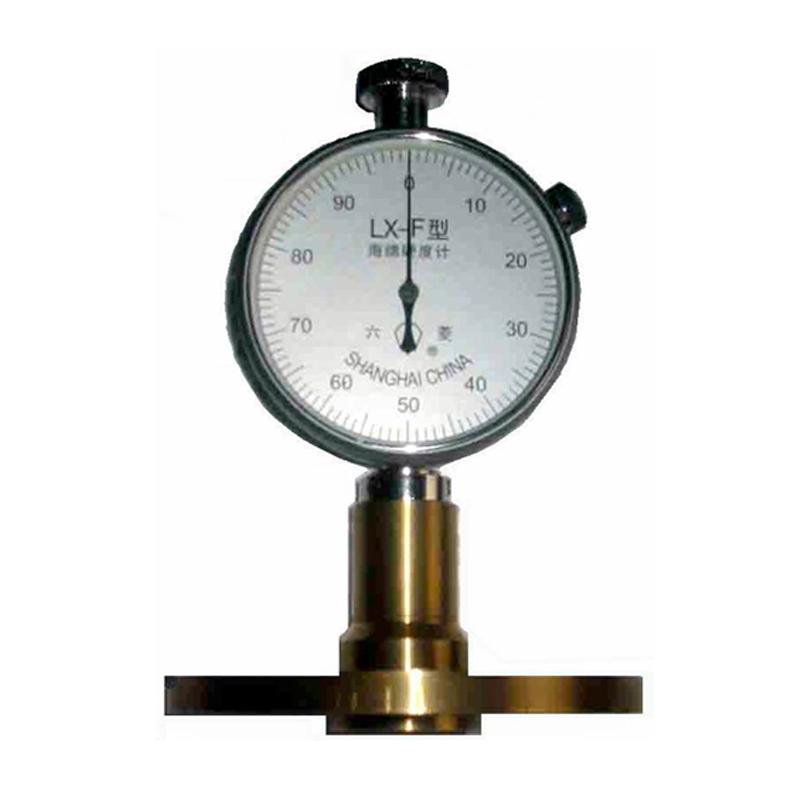

LIULING LX-F Sponge hardness Gauge Self-weight type, pressing needle Travel 0~ 2.5mm

Name: LIULING LX-F Sponge hardness Gauge Self-weight type, pressing needle Travel 0~ 2.5mm
Brand: LiuLing
SKU: NB019828
Price: 558.0 USD
Availability: InStock

$ 558.00Ex works

Travel range of crimping needle 0~ 2.5mm, resolution 1HF, using self-weight as load, suitable for the determination of hardness of materials.

Model

LX-F

Get Quote

Category : Shore Durometer

Brand : LiuLing

SKU : NB019828

Service :The delivery and service By NBCLab.Com

Overview

LX-F sponge hardness gauge is a self-weighing instrument specially customized by LIULING brand for the measurement of foam hardness of materials. It implements the Japanese enterprise standard FO series 744G model. It is suitable for measuring the Hardness of soft foam materials and polyurethane foam products. When used, the pressure foot directly contacts the sample, and uses its own weight as the force load.

Features

1. Adopt self-weight design, using the instrument's own weight as the force load, easy to operate. 2. Customized for soft foam materials, suitable for Hardness measurement of polyurethane foam products. 3. Implement the Japanese enterprise standard FO series 744G model to ensure measurement accuracy.

Principle

The hardness gauge directly contacts the surface of the sample by pressing the foot, uses the weight of the instrument as the force load, and applies pressure to the material within the Travel range of the crimper, and converts it into the Hardness value according to the pressing depth or resistance, expressed in HF units.

Specifications

Travel range of the crimp: 0~ 2.5mm, resolution: 1HF, Measurement range: 0~ 100HF, measurement error ： +/- 1HF, pressure at the end of the crimp: 0.55~ 4.30N (56.1gf~ 438.5gf).

Pin Travel Range
0mm~2.5mm
resolution
1HF
Measurement Range
0HF~100HF
Precision
±1HF
crimp end force
0.55N~4.30N (56.1gf~438.5gf)
