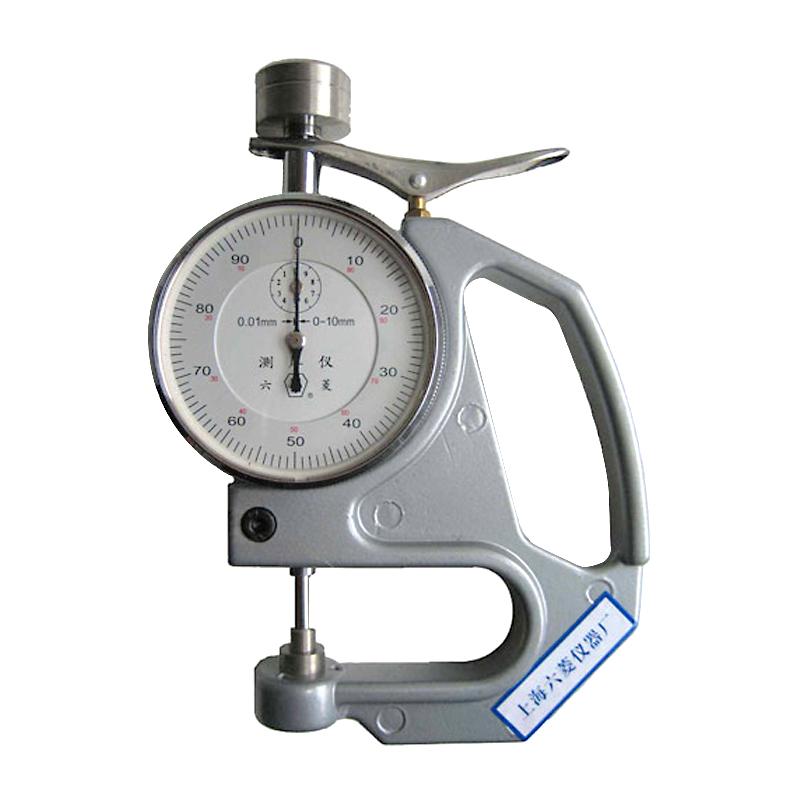

LIULING CH-10-A Hand rubber thickness Gauge Dial large span measurement

Name: LIULING CH-10-A Hand rubber thickness Gauge Dial large span measurement
Brand: LiuLing
SKU: NB019831
Price: 257.0 USD
Availability: InStock

$ 257.00Ex works

Measurement range 0~ 10mm, accuracy ≤ 0.02mm, probe center to the maximum measurement depth 130mm, Dial reading, portable handheld design, suitable for on-site rapid detection.

Model

CH-10-A

Get Quote

Category : Thickness Gauge

Brand : LiuLing

SKU : NB019831

Service :The delivery and service By NBCLab.Com

Overview

This thickness gauge is an instrument for measuring the thickness of rubber and plastic products. It has the characteristics of simple structure, convenient use and reliable mass. The measurement depth is 130mm. The large-span thickness gauge has only one specification of hand type, which is easy to carry around and handheld for measurement. It is suitable for on-site measurement in the workshop.

Features

1. Simple structure, easy to use and reliable mass 2. The measurement depth is 130mm long span 3. Easy to carry, handheld measurement 4. Suitable for on-site measurement in the workshop

Principle

The thickness gauge applies a pressure of 22kPa +/- 5kPa (corresponding to 176g +/- 20g mass) through the upper probe to measure the thickness of materials such as rubber and plastic products, and displays the measurement results through Dial readings.

Applications

Rubber and plastic products

Standards

HG/T 2041-2009、HG/T 2198-2011、HG/T 2382-1992

Steps

1. Handheld thickness gauge 2. Place the probe on the surface of the material to be tested Step 3 Apply appropriate pressure 4. Read the thickness value displayed by the pointer

Notice

• Make sure the probe is clean before measurement • Applying pressure should meet the range of 22kPa +/- 5kPa • Avoid use in humid or corrosive environments • Periodically calibrate instrument accuracy

Measurement Range
0~10mm
Measurement accuracy
≤ 0.02mm
reading display
Dial
Graduation
0.01mm
Pressure and mass required
22kPa ± 5kPa (176g ± 20g)
The diameter of the upper probe
10Mm flat
Probe center to maximum measurement depth
130mm
execution standard
HG/T 2041-2009

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
