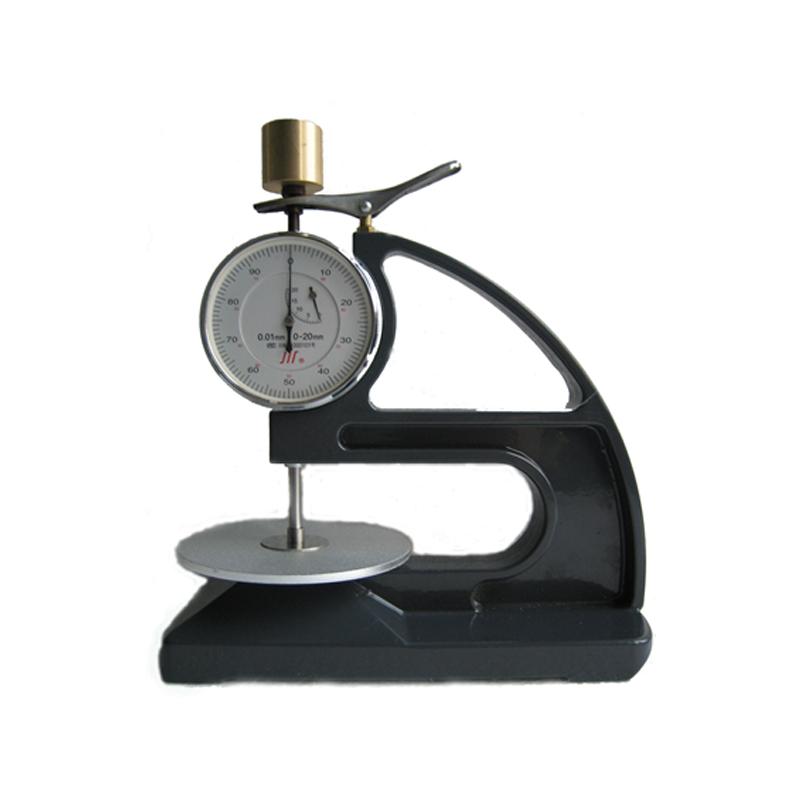

LIULING CH-20 Benchtop percentile special Gauge thickness Gauge Dial rubber plastic thickness measurement

Name: LIULING CH-20 Benchtop percentile special Gauge thickness Gauge Dial rubber plastic thickness measurement
Brand: LiuLing
SKU: NB019836
Price: 445.0 USD
Availability: InStock

$ 445.00Ex works

Measurement range 0~ 20mm, accuracy ≤ 0.02mm, Graduation 0.01mm, providing two pressure options, probe diaMeter Φ 4mm plane, the table is made of stainless steel to ensure stable and reliable measurement.

Model

CH-20 (hands)

Get Quote

Category : Thickness Gauge

Brand : LiuLing

SKU : NB019836

Service :The delivery and service By NBCLab.Com

Overview

LIULING CH-20 (pointer) Benchtop Percent Special Gauge Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. It has the characteristics of simple structure, convenient use and reliable mass.

Features

1. Simple structure 2. Easy to use 3. Reliable mass

Principle

The thickness of rubber and plastic products is measured by applying specific pressure to the sample through the probe, and the measurement results are displayed using Dial readings.

Applications

Rubber and plastic products

Standards

HG/T 2041-2009、HG/T 2198-2011、HG/T 2382-1992

Steps

1. Select the desired pressure and mass configuration 2. Place the sample on the workbench 3. Use the probe for measurement 4. Read the thickness value displayed by the pointer

Notice

• Select the appropriate pressure configuration according to the measurement requirements • Make sure the workbench and probe are clean • Keep the instrument stable during measurement • Periodically calibrate instrument accuracy

Measurement Range
0-20mm
Measurement accuracy
≤0.02mm
reading display
Dial
Graduation
0.01mm
Pressure and mass required
① 10kPa +/- 2kPa (13g +/- 2g) plus 6g heavy hammer; ② 22kPa +/- 5kPa (28g +/- 6g) plus 20g heavy hammer
Probe diameter
Φ 4mm plane
execution standard
HG/T 2041-2009
workbench
Φ 23mm stainless steel flat plus Φ 80mm tray

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
