LIULING CH-20 Benchtop Percent NonwOven Thickness Gauge Dial 0.01mm Graduation

Name: LIULING CH-20 Benchtop Percent NonwOven Thickness Gauge Dial 0.01mm Graduation
Brand: LiuLing
SKU: NB019838
Price: 471.0 USD
Availability: InStock

$ 471.00Ex works

Measurement range 0-20mm, accuracy ≤ 0.02mm, Graduation 0.01mm, probe diaMeter Φ 56.42mm plane, in line with HG/T 2041-2009 standard, easy to operate.

Model

CH-20

Get Quote

Category : Thickness Gauge

Brand : LiuLing

SKU : NB019838

Service :The delivery and service By NBCLab.Com

Overview

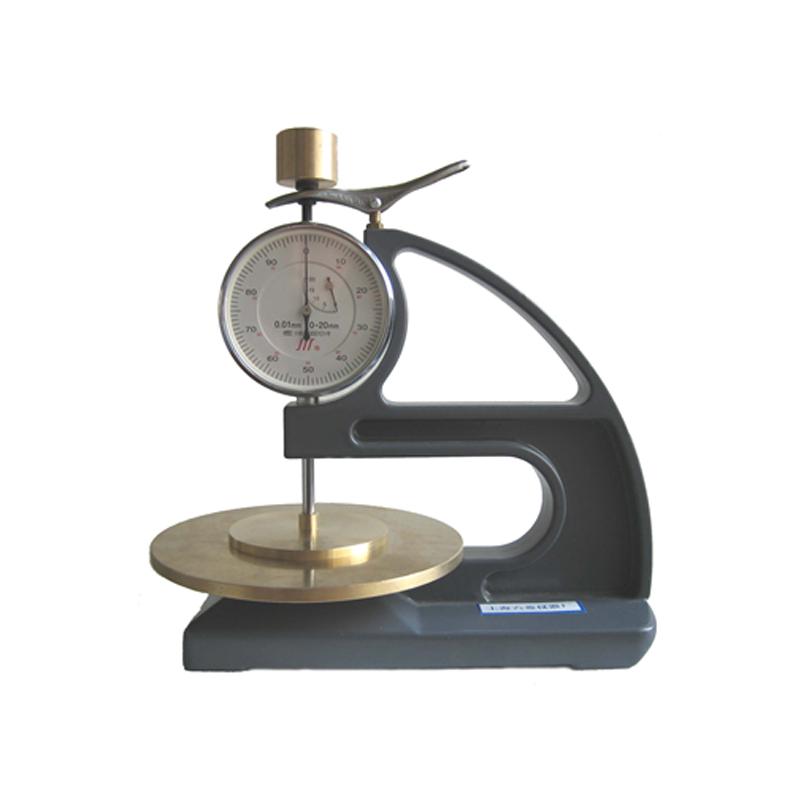

LIULING CH-20 Benchtop Percent Nonwoven Thickness Gauge is an instrument for measuring the thickness of nonwoven fabrics. It has the characteristics of simple structure, convenient use and reliable mass.

Features

1. Simple structure 2. Easy to use 3. Reliable mass

Principle

The thickness gauge with reference to the implementation of FZ/T 60001-1991 nonwoven fabric thickness measurement standard, the thickness measurement of the nonwoven fabric by applying pressure probe.

Standards

FZ/T 60004-1991、HG/T 2041-2009

Steps

1. Place the non-woven fabric sample on the workbench 2. Adjust the probe to contact the sample 3. Read the thickness value displayed by the pointer

Notice

• Make sure that the probe diameter is a 56.42mm plane (2500mm2) • Maintain pressure within the range of 0.5kPa +/- 0.03kPa (128gf +/- 7gf) • Measurement range limited to 0~ 20mm • Measurement accuracy should be ≤ 0.02mm

Measurement Range
0-20mm
Measurement accuracy
≤0.02mm
reading display
Dial
Graduation
0.01mm
Pressure and mass required
0.5kPa±0.03kPa (128gf±7gf)
Probe diameter
56.42Mm flat surface (2500mm ²)
execution standard
HG/T 2041-2009
workbench
110Mm flat surface

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
