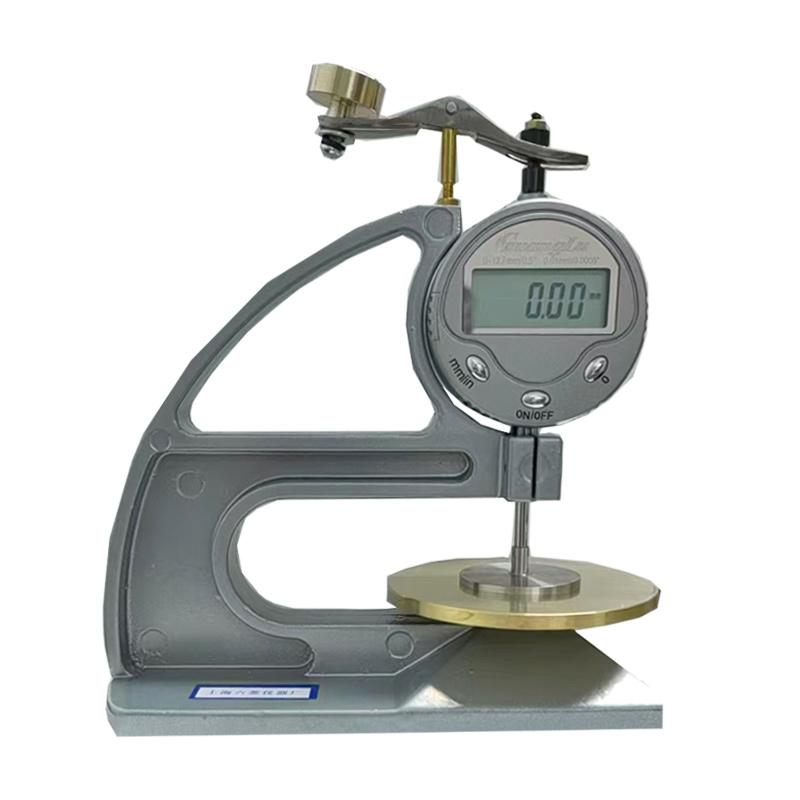

LIULING CH-12.7-SX Benchtop digital sponge thickness Gauge, low density soft foam precision measurement

Name: LIULING CH-12.7-SX Benchtop digital sponge thickness Gauge, low density soft foam precision measurement
Brand: LiuLing
SKU: NB019839
Price: 519.0 USD
Availability: InStock

$ 519.00Ex works

Measurement range 0~ 12.7mm, accuracy ≤ 0.02mm, probe diaMeter Φ 35.68mm, suitable for low density soft foam materials, simple and reliable structure.

Model

CH-12.7-SX

Get Quote

Category : Thickness Gauge

Brand : LiuLing

SKU : NB019839

Service :The delivery and service By NBCLab.Com

Overview

LIULING CH-12.7-SX Benchtop Digital Sponge Thickness Gauge is a precision instrument specially designed for the measurement of the thickness of sponge (low density, soft foam) products and foam materials. It is suitable for sponge products or samples made of natural Latex and synthetic Latex as the main raw materials. Linear size measurement of soft and hard foam material sheets, blocks or Miscellaneous shape samples.

Features

1. Simple structure 2. Easy to use 3. Reliable mass

Principle

The instrument performs thickness measurement with reference to the National Standard of the People's Republic of China UDC 678.4.031: 531.7 GB 9889-88 Linear Dimension Determination of Latex Sponge, GB/T 6342-1996 ISO 1923-1981 "Foam and Rubber - Linear Dimension Determination" by applying a specific pressure to the probe.

Applications

Sponge articles, foam sheets, blocks or Miscellaneous shape specimens

Standards

HG/T 2041-2009、GB 9889－88、GB/T 6342-1996、ISO 1923－1981

Steps

1. Place the sample to be tested on the measurement platform 2. Use the probe to apply 10g +/- 1g pressure (100Pa +/- 10Pa) 3. Read the thickness value displayed on the digital display screen

Notice

• Measuring pressure within 10g +/- 1g • The diameter of the probe is φ 35.68mm, and the measurement area is about 10 cm ² • Measurement range is limited to 0~ 12.7mm, accuracy ≤ 0.02mm • Only suitable for low density soft samples such as sponges and foams

Measurement Range
0-12.7mm
Measurement accuracy
≤0.02mm
reading display
digital display
Graduation
0.01mm
weight
10G +/- 1g (pressure is 100Pa +/- 10Pa)
Probe diameter
35.68Mm (measurement area of about 10cm ²)
execution standard
HG/T 2041-2009
