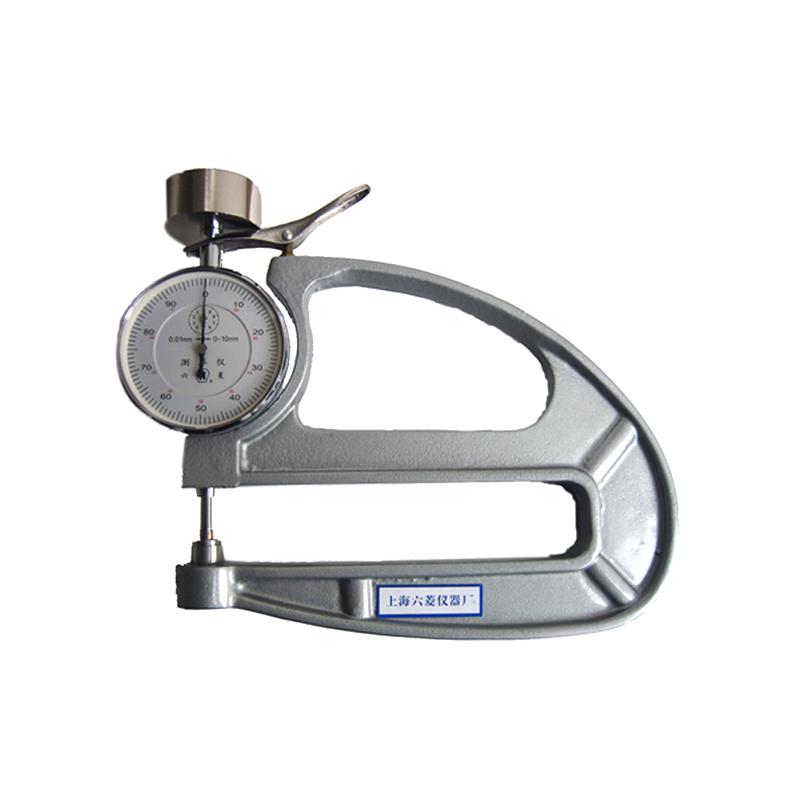

LIULING CH-10-A (Large) Hand Large Span Rubber Thickness Gauge Dial Measurement accuracy 0.02mm

Name: LIULING CH-10-A (Large) Hand Large Span Rubber Thickness Gauge Dial Measurement accuracy 0.02mm
Brand: LiuLing
SKU: NB019840
Price: 315.0 USD
Availability: InStock

$ 315.00Ex works

Measurement range 0-10mm, accuracy 0.02mm, probe center to the maximum measurement into the depth of 130mm, easy to carry handheld measurement.

Model

CH-10-A (Large)

Get Quote

Category : Thickness Gauge

Brand : LiuLing

SKU : NB019840

Service :The delivery and service By NBCLab.Com

Overview

LIULING CH-10-A (Large) Hand Large Span Rubber Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. It has the characteristics of simple structure, convenient use and reliable mass. The large span thickness gauge with a measurement depth of 130mm has only one specification of hand, which is easy to carry and hand-held measurement, and is suitable for on-site measurement in workshops.

Features

1. Simple structure, easy to use and reliable mass 2. Large span design for measurement depth up to 130mm 3. Easy to carry, handheld measurement 4. Suitable for on-site measurement in the workshop

Principle

The thickness gauge applies a pressure of 22kPa +/- 5kPa to the sample through the probe to measure the thickness of rubber and plastic products. The Dial reading shows that the Graduation is 0.01mm.

Applications

Rubber and plastic products

Standards

HG/T 2041-2009、HG/T 2198-2011、HG/T 2382-1992

Steps

1. Handheld thickness gauge 2. Place the probe on the surface of the sample to be tested Step 3 Apply appropriate pressure 4. Read the thickness value displayed by the pointer

Notice

• Measurement range limited to 0~ 10mm • Measurement accuracy should be kept at ≤ 0.02mm • The pressure needs to be controlled within the range of 22kPa +/- 5kPa • The diameter of the probe is φ 6mm flat • Probe center to the maximum measurement depth of 130mm

Measurement Range
0-10mm
Measurement accuracy
≤0.02mm
reading display
Dial
Graduation
0.01mm
weight
22kPa±5kPa (63g±7g)
Probe diameter
Φ 6mm plane
execution standard
HG/T 2041-2009
Probe center to maximum measurement depth
130mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
