Overview

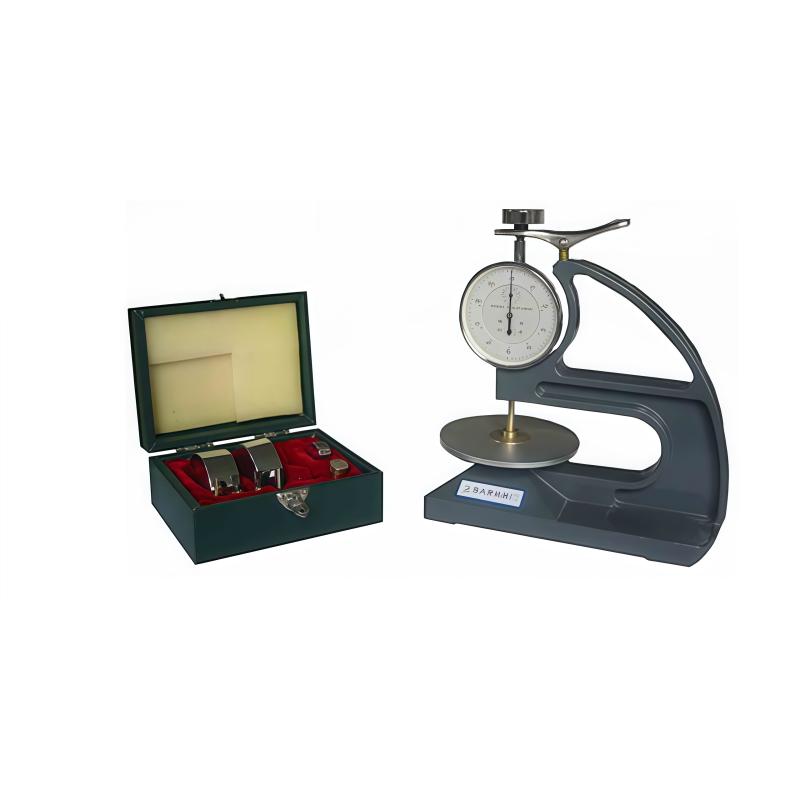

LIULING CH-10-C Wire and cable multi-head thickness gauge is mainly used for measuring the thickness of cable, wire, flexible wire insulation and sheath materials and the thickness of vulcanized rubber and plastic products. It has the characteristics of simple structure, convenient use and reliable mass.
Features
1. Simple structure
2. Easy to use
3. Reliable mass
Principle
The thickness gauge applies a specific pressure to the material to be tested through the probe, and displays the thickness value through the Dial reading, enabling accurate measurement of the thickness of cable, wire insulation and sheath materials, as well as vulcanized rubber and plastic products.
Applications
Cable, wire, flexible wire insulation and sheath material thickness measurement, vulcanized Rubber thickness measurement, plastic product thickness measurement
Standards
GB/T 2951.1-1997、HG/T 2041-2009
Steps
1. Select the appropriate probe diameter
2. Align the probe with the material under test
3. Apply the required pressure
4. Read the thickness value displayed by the pointer
Notice
• Check whether the probe is in good condition before use
• Ensure that the pressure applied meets the specified requirements
• Keep your line of sight perpendicular to the pointer when reading
• Regularly calibrate instruments to ensure Measurement accuracy
