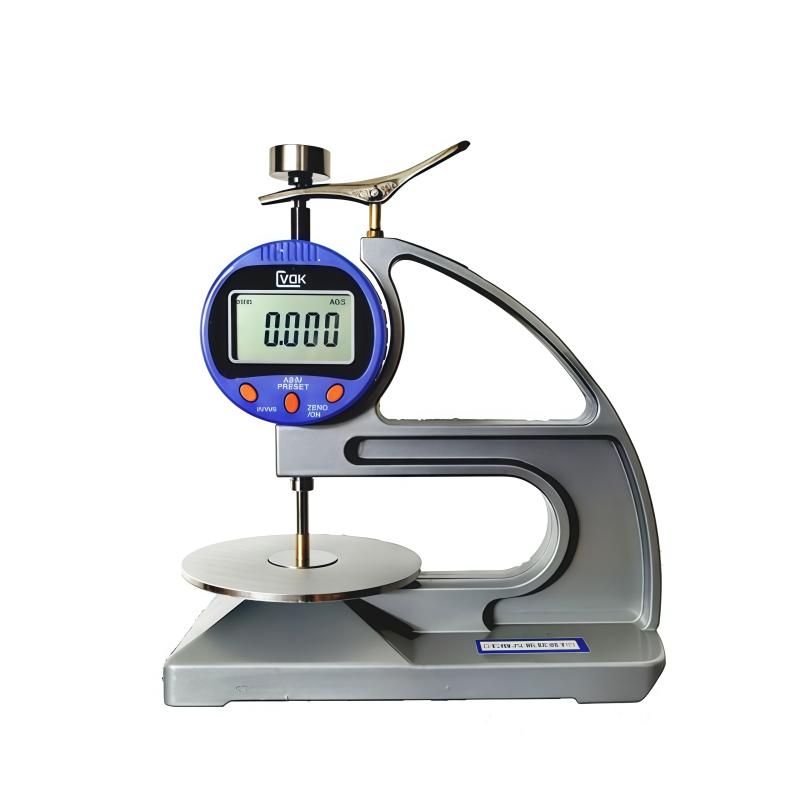

LIULING CH-12.7-BTSX Benchtop digital emulsion thickness Gauge 0.001mm High Accuracy measurement

Name: LIULING CH-12.7-BTSX Benchtop digital emulsion thickness Gauge 0.001mm High Accuracy measurement
Brand: LiuLing
SKU: NB019845
Price: 503.0 USD
Availability: InStock

$ 503.00Ex works

Measurement range 0-12.7 mm, Graduation up to 0.001mm, using flat probe design to ensure accurate and reliable test data, suitable for all kinds of material thickness detection.

Model

CH-12.7-BTSX

Get Quote

Category : Thickness Gauge

Brand : LiuLing

SKU : NB019845

Service :The delivery and service By NBCLab.Com

Overview

The thickness gauge is an instrument for measuring emulsion, rubber, paper and other thicknesses. It has the characteristics of simple structure, convenient use and reliable mass. It can be used for sample measurement in physical laboratories.

Features

1. Simple structure 2. Easy to use 3. Reliable mass 4. Digital display of readings 5. High Accuracy Graduation 0.001mm

Principle

The instrument measures the thickness of the sample through the pressure contact between the upper probe and the lower table, and displays the measurement results digitally.

Applications

Emulsion, rubber, paper and other materials thickness measurement, physical laboratory sample determination

Standards

HG/T 2041-2009、HG/T 2198-2011、HG/T 2382-1992

Steps

1. Place the specimen on the lower bench 2. Bring the upper probe into contact with the sample 3. Read the thickness value on the digital display screen

Notice

Measuring pressure to 22kPa +/- 5kPa (44g +/- 10g) • Keep the upper and lower probes clean • Check instrument calibrated before use • Avoid over-range use

Measurement Range
0~12.7mm
reading display
digital display
Graduation
0.001mm
Pressure and mass required
22kPa±5kPa（44g±10g）
upper probe diameter
Φ 5mm (flat surface)
Meet the standard
HG/T 2041-2009
Lower table diameter
Φ 23mm flat with Φ 80mm tray
