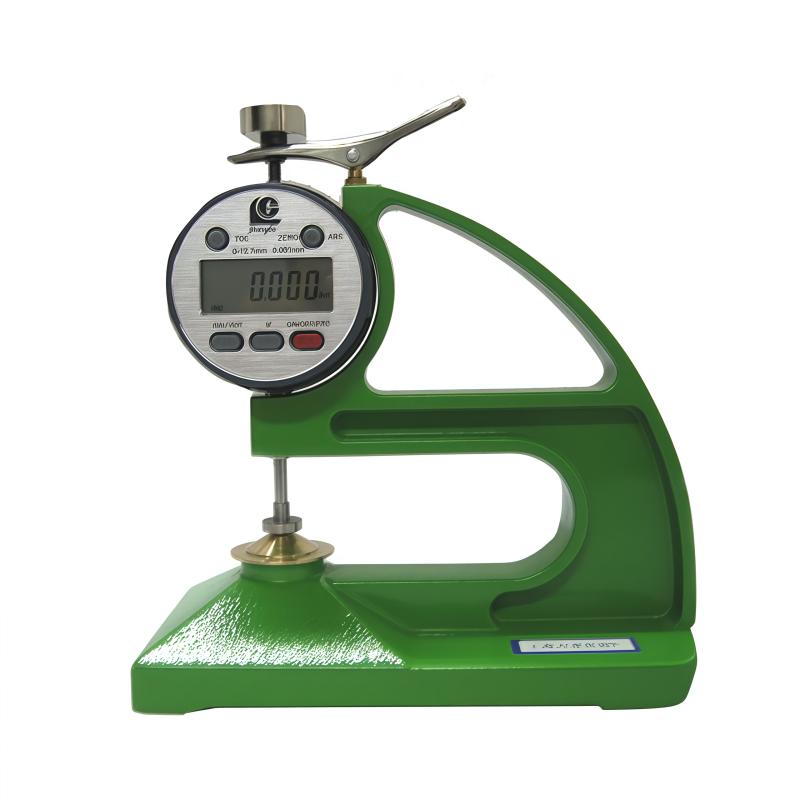

Plastic film thickness is determined by mechanical measurement method, but it is not suitable for embossed films and sheets. The instrument refers to the implementation of the national standard GB/T6672-2001, which is modified to adopt the international standard ISO4593-1993.
Features
1. Measurement range 0~ 12.7mm
2. Measurement accuracy ≤ 0.005mm
3. Digital display of readings
4. Graduation 0.001mm
5. The adjustable range of the end force of the probe is 0.1-0.5N (equivalent to 10.2gf-51gf)
6. Probe diameter φ 5mm (flat)
7. The upper measurement surface is SR15mm-SR50mm radius of curvature, and the lower probe is flat
Principle
The thickness gauge adopts the mechanical measurement method and applies a specific force to the sample through the probe for thickness measurement.
Standards
GB/T6672-2001 MOD ISO 4593-1993
Measurement Range 0mm~12.7mm
Measurement accuracy ≤0.005mm
reading display digital display
Graduation 0.001mm
Force at the end of the probe When the upper measurement surface is SR15mm-SR50mm radius of curvature and the lower probe is flat, the force exerted by the probe on the sample is 0.1-0.5N; equivalent to 10.2gf-51gf
Probe diameter Φ 5mm (flat surface)
execution standard GB/T6672-2001 MOD ISO 4593-1993
