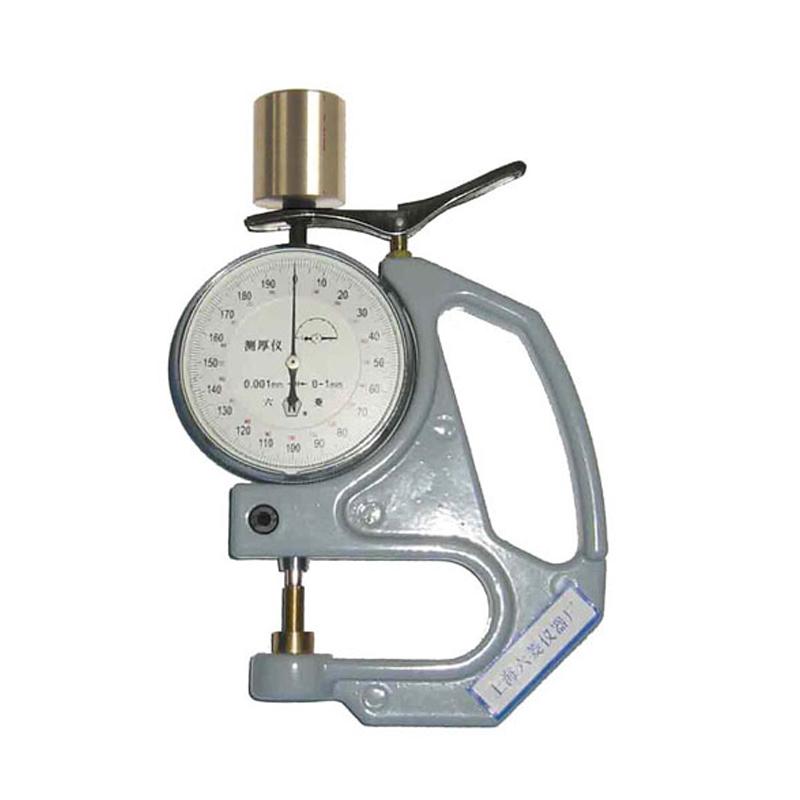

LIULING CH-1-N Pressure sensitive adhesive Adhesive tape hand thickness Gauge Dial Measurement accuracy 0.007mm

Name: LIULING CH-1-N Pressure sensitive adhesive Adhesive tape hand thickness Gauge Dial Measurement accuracy 0.007mm
Brand: LiuLing
SKU: NB019849
Price: 248.0 USD
Availability: InStock

$ 248.00Ex works

Measurement accuracy of 0.007mm, Graduation of 0.001mm, probe diaMeter Φ 5mm, maximum measurement depth 45mm, suitable for on-site rapid thickness detection.

Model

CH-1-N

Get Quote

Category : Thickness Gauge

Brand : LiuLing

SKU : NB019849

Service :The delivery and service By NBCLab.Com

Overview

LIULING CH-1-N Pressure sensitive adhesive tape hand thickness gauge is a mechanical measurement method to determine the thickness of pressure sensitive adhesive tape under standard conditions. This thickness gauge refers to the national standard GB/T 7125 "Pressure sensitive adhesive tape and adhesive tape thickness test method", which is equivalent to ASTM D 3652M American standard.

Features

1. Pressure sensitive adhesive thickness measured by mechanical measurement 2.Maximum measurement depth is 45mm 3. Measurement accuracy is high, up to ≤ 0.007mm 4. Dial reading shows Graduation of 0.001mm 5. Two measurement diameter options are available: φ 5mm and φ 14mm

Principle

The thickness gauge adopts mechanical measurement method to make contact measurement of Pressure sensitive adhesive tape through the probe under specific pressure, and accurately determine its thickness value.

Applications

Workshop site measurement Pressure sensitive adhesive tape thickness

Standards

GB/T 7125-1999 MOD ASTM D3652 M-1993

Steps

1. Select the measurement diameter (φ 5mm or φ 14mm) 2. Configure the corresponding mass according to the measurement diameter (96g when φ 5mm, 765g when φ 14mm) 3. Place the probe on the surface of the Pressure sensitive adhesive tape to be tested 4. Read the thickness value displayed by the pointer

Notice

• Before measurement, confirm that the measurement diameter is selected correctly • Configure the corresponding mass parameters according to the measurement diameter • Make sure the probe is in full contact with the tape surface during measurement Maintain the measurement environment in accordance with standard conditions • Regularly calibrate instruments to ensure Measurement accuracy

Measurement Range
0mm~1mm
Measurement accuracy
≤0.007mm
reading display
Dial
Graduation
0.001mm
Pressure and mass required
① When the measurement diameter is Φ 5mm, 48kPa (96g); ② When the measurement diameter is Φ 14mm, 48kPa (765g)
Probe diameter
Φ 5mm (flat surface)
execution standard
GB/T7125-1999 MOD ASTM D3652 M-1993
