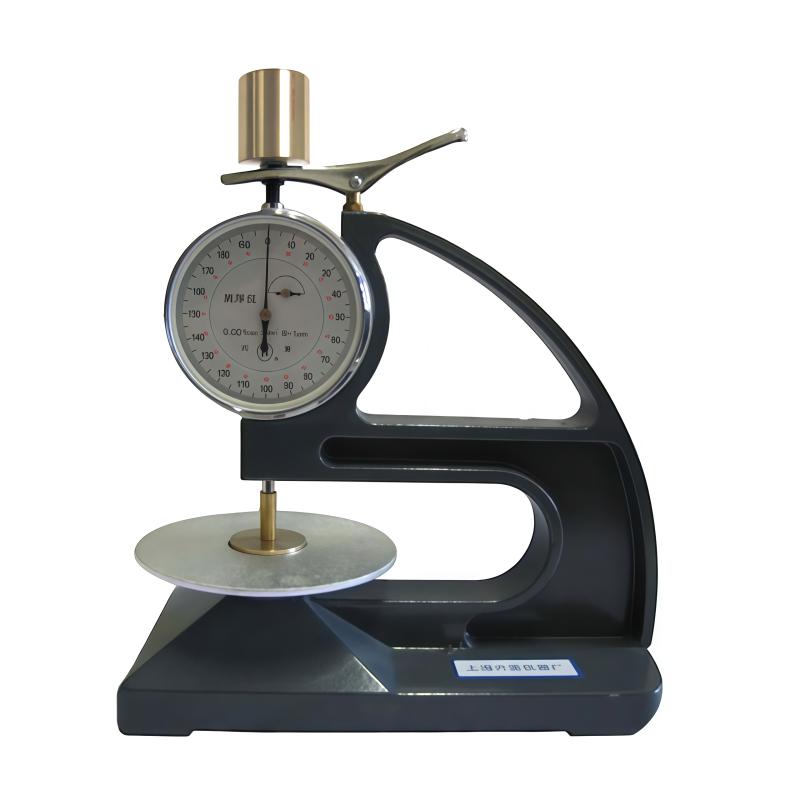

LIULING CH-1-NT Pressure sensitive adhesive Benchtop thickness Gauge, thickness Measurement accuracy 0.007mm

Name: LIULING CH-1-NT Pressure sensitive adhesive Benchtop thickness Gauge, thickness Measurement accuracy 0.007mm
Brand: LiuLing
SKU: NB019850
Price: 264.0 USD
Availability: InStock

$ 264.00Ex works

Measurement accuracy of 0.007mm, Graduation of 0.001mm, probe diaMeter of Φ 5mm plane, maximum measurement depth of 80mm, in line with national standards.

Model

CH-1-NT

Get Quote

Category : Thickness Gauge

Brand : LiuLing

SKU : NB019850

Service :The delivery and service By NBCLab.Com

Overview

LIULING CH-1-NT Pressure sensitive adhesive tape Benchtop thickness gauge uses mechanical measurement to determine the thickness of pressure sensitive adhesive tape under standard conditions. This instrument refers to the national standard GB/T 7125 "Pressure sensitive adhesive tape and adhesive tape thickness test method", and is equivalent to ASTM D 3652M American standard.

Features

1. Measurement range 0~ 1mm, accuracy ≤ 0.007mm 2. Dial reading display, Graduation 0.001mm 3. Two measurement diameter options are available: φ 5mm and φ 14mm 4. Suitable for workshop on-site measurement, the maximum measurement depth is 80mm

Principle

This thickness gauge adopts mechanical measurement method to measure the thickness change of Pressure sensitive adhesive tape surface by standard pressure. Apply the corresponding pressure and mass according to the selected probe diameter during measurement.

Applications

Pressure sensitive adhesive thickness measurement

Standards

GB/T 7125-1999 MOD ASTM D3652 M-1993

Steps

1. Select the probe diameter (φ 5mm or φ 14mm) 2. Apply the corresponding pressure and mass according to the probe diameter 3. Place the probe on the surface of the Pressure sensitive adhesive 4. Read the thickness value displayed by the pointer

Notice

• Make sure the instrument is in standard condition before measurement • Correct selection of pressure and mass parameters according to probe diameter • The probe should be in full contact with the measured surface during measurement • Regularly calibrate instruments to ensure Measurement accuracy • Maximum measurement depth does not exceed 80mm

Measurement Range
0mm~1mm
Measurement accuracy
≤0.007mm
reading display
Dial
Graduation
0.001mm
Pressure and mass required
① When the measurement diameter is Φ 5mm, 48kPa (96g); ② When the measurement diameter is Φ 14mm, 48kPa (765g)
Probe diameter
Φ 5mm (flat surface)
execution standard
GB/T7125-1999 MOD ASTM D3652 M-1993

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
