Overview

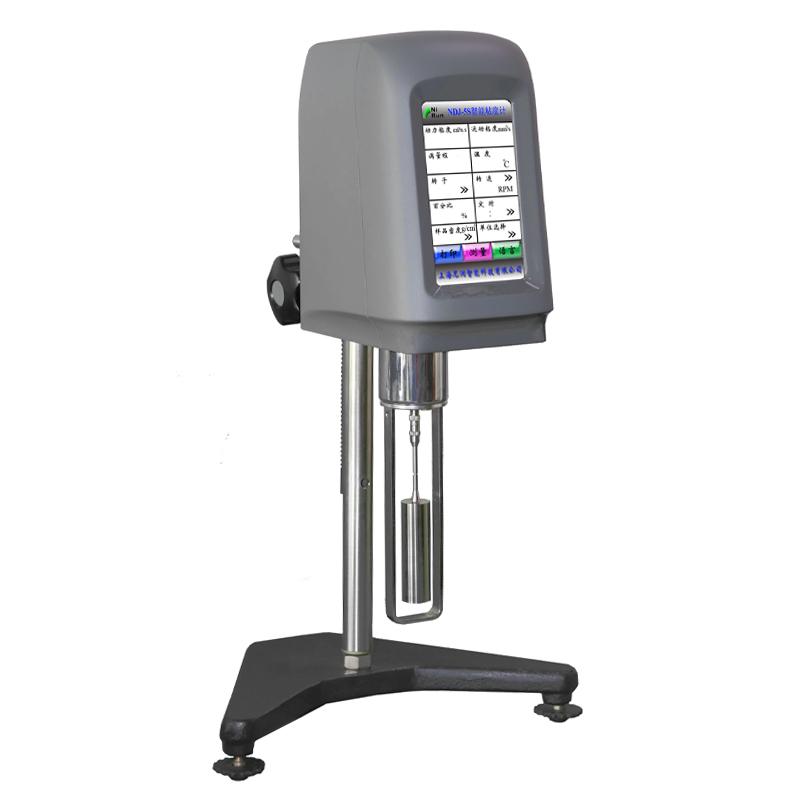

NIRUN NDJ-8ST Touchscreen Viscometer is a precision viscosity measurement instrument with 5 inch Touchscreen operation, with anti-static housing and PC lift rod design, supports automatic conversion of dynamic viscosity and kinematic viscosity and interchange of various Viscosity units.
Features

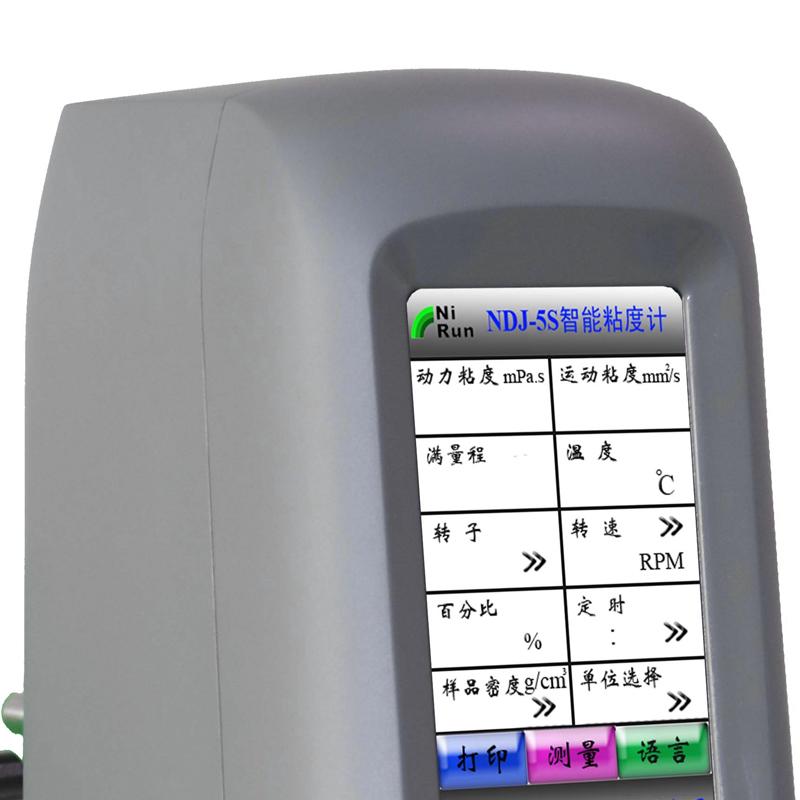

1.5-Inch Touchscreen is easy to operate and displays rich information
2. Anti-static shell, PC lifting rod
3. RTD temperature sensor optional
4. ARM chip processor, faster data processing speed

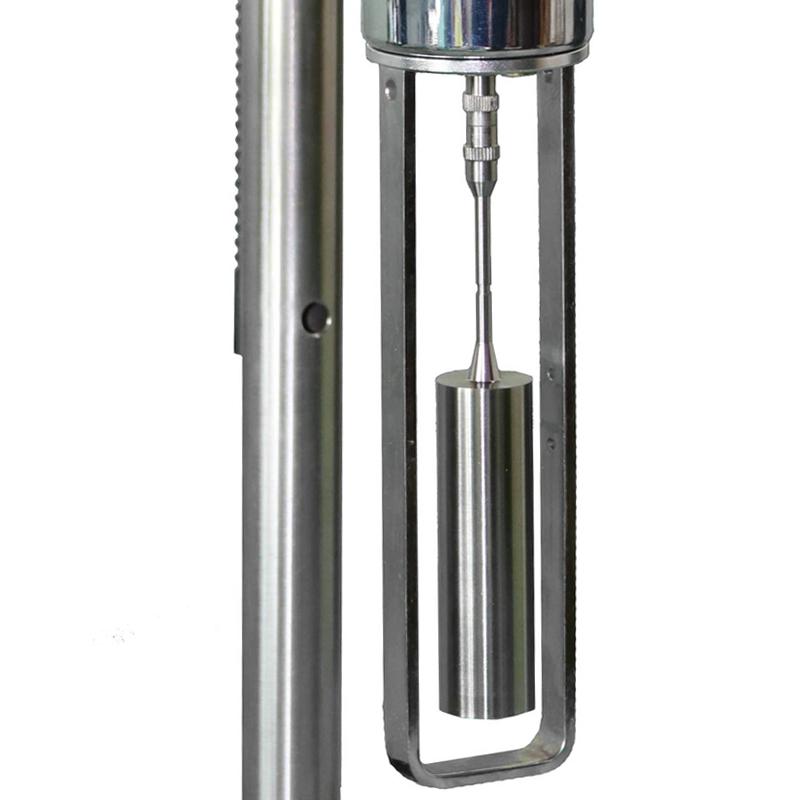

5. Durable new small shaft design
6. Powerful human-machine interaction interface
7. Automatic conversion of dynamic viscosity and kinematic viscosity
8. Viscosity unit interchangeability
9. Random with operation help, viscosity coefficient correction
10. The viscosity value shows continuous change
11. Measurement range beyond the alarm sound prompt
12. Computer full-scale linear correction
13. AC Power Adapter 100V-240V, good anti-interference
Principle
The instrument measures the viscosity value by swirling/spinning the rotor in the sample, measuring the fluid resistance, using the ARM chip to process the data quickly, and displays the continuously changing viscosity value in real time, supporting automatic conversion and unit interchange.
Applications
Inks, glues, emulsions, solvent Adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, products, juices
Steps
1. Connect the Power Adapter and turn it on
2. Choose the right rotor and Rotation speed
3. Immerse the rotor in the sample
4. Set parameters and start measurement via Touchscreen
5. Read the displayed viscosity value
6. If you need to correct it, use the random help function
Notice
• Power supply voltage in AC100V-240V range
• Measurement range to avoid alarm
• Check whether the rotor is in good condition before use
• Keep sample temperature stable during measurement
• Periodic linear calibration to ensure accuracy
