Overview

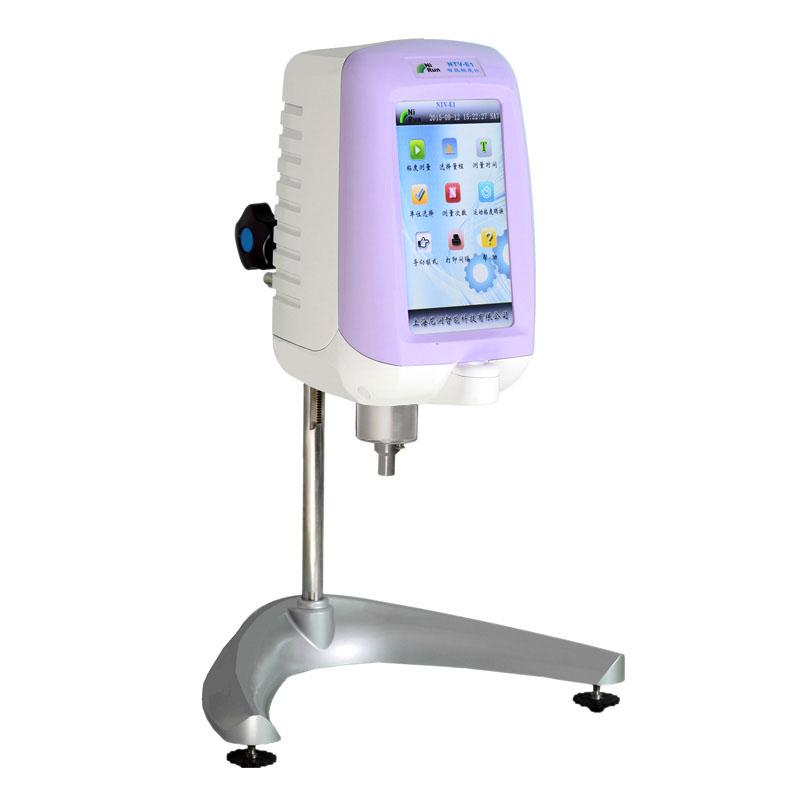

NIRUN NTV-S1 Smart Touch Digital Viscometer is a precision measuring instrument with 7 inch wide Touchscreen operation, anti-static housing and metal lifting rod design, built-in RTD temperature sensor, support for a variety of Viscosity units and Data storage methods.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Anti-static shell, metal lifting rod design
3. Built-in RTD temperature sensor
4. ARM chip processor, faster data processing speed
5. Durable new small shaft design
6. Powerful human-machine interaction interface
7. Gigabit network port data communication transmission, fast and reliable data transmission
8. Support external U disk Data storage; single point, continuous, timing three storage methods optional
9. Password protection for temperature and viscosity correction coefficients, allowing users to correct temperature and viscosity correction coefficients by themselves with reliable and accurate data
10. Support stepless speed measurement viscosity, input any Rotation speed, directly reflect the full scale under each rotor, convenient for users to select test conditions
11.Automatic conversion of dynamic viscosity and kinematic viscosity
12. Viscosity unit interchangeability
13. Interchange of a variety of user-friendly operation styles
14. Random with powerful operation wizard help
15. Viscosity values show continuous change
16. Measurement range beyond the alarm sound prompt
17. Computer full-scale linear correction
18. AC Power Adapter 100V-240V, good anti-interference
Principle
The Viscometer swirls/spins viscosity measurements in liquids via a rotor, a built-in RTD temperature sensor monitors temperature in real time, and an ARM chip processes data quickly for continuous display and automatic conversion of viscosity values.
Applications
Inks, emulsions, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, products, fruit juices
Steps
1. Connect Power Adapter (100V-240V)
2. Select Operating language (e.g. Chinese) via Touchscreen
3. Install suitable rotor (1 #, 2 #, 3 #, 4 #or optional 0 #)
4. Rotation speed (0.1~ 60rpm) and Measurement mode
5. Start measurement, the viscosity value is displayed continuously
6. Data can be stored through USB interface or U disk, support single point, continuous, regular storage
7. The measurement is completed, if there is an alarm prompt beyond the range
Notice
• Power supply voltage within 100V-240V range before use
• Select the appropriate rotor and Rotation speed to avoid exceeding the Measurement range (1~ 600000mPa · s)
• Viscometer placed smoothly during measurement to avoid vibration interference
Measurement accuracy （ +/- 1% F. S) and reproducibility （ +/- 0.2% F. S)
• Pay attention to the compatibility of the U disk when storing data to prevent data loss
• Avoid damage when cleaning the rotor and keep the equipment drying
