Overview

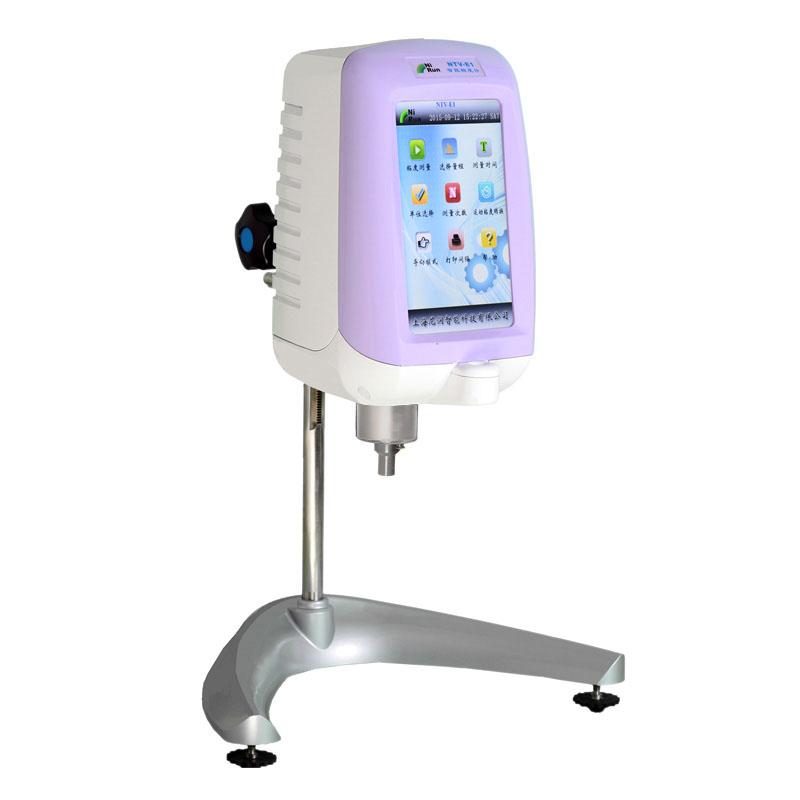

NIRUN NTV-S3 Smart Touch Digital Viscometer is a precision measuring instrument with 7 inch wide Touchscreen, anti-static housing, metal lifting rod design and built-in RTD temperature sensor, viscosity measurement range 6~ 80000000mPa · s, support Viscosity unit interchange and dynamic viscosity and kinematic viscosity automatic conversion.
Features
1, 7 inch wide Touchscreen, easy to operate, rich display information
2. Anti-static shell, metal lifting rod design
3. Built-in RTD temperature sensor
4. ARM chip processor, faster data processing speed
5. Durable new small shaft design
6. Powerful human-machine interaction interface
7. Gigabit network port data communication transmission, fast and reliable data transmission
8, Support external U disk Data storage; single point, continuous, timing three storage options
9. Password protection for temperature and viscosity correction coefficients, allowing users to correct temperature and viscosity correction coefficients by themselves with reliable and accurate data
10. Support stepless speed measurement viscosity, input any Rotation speed, directly reflect the full scale under each rotor, convenient for users to select test conditions
11. Automatic conversion of dynamic viscosity and kinematic viscosity
12. Viscosity unit interchangeability
13. A variety of user-friendly operation style interfaces are exchanged
14. Random with powerful operation wizard help
15. The viscosity value shows continuous change
16. Measurement range is exceeded by alarm
17. Computer full-scale linear correction
18, AC Power Adapter 100V-240V, good anti-interference
Principle
The Viscometer measures viscosity through the resistance of the rotor as it swirls/spins in the liquid, uses an ARM chip processor to process data quickly, has a built-in RTD temperature sensor to monitor temperature in real time, supports stepless speed measurement and full scale linear correction, ensuring Measurement accuracy and Reliability.
Applications
Inks, emulsions, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, products, fruit juices
Steps
1. Connect the Power Adapter and turn it on
2. Select the required rotor and install it
3. Measurement parameters (such as Rotation speed, unit, etc.) set through Touchscreen
4. Immerse the rotor in the liquid to be tested
5, start measurement, observe the continuous change of viscosity value
6. Save data as needed (single point, continuous or timed)
7, after the measurement is completed, clean the rotor and shut down
Notice
• Power supply voltage in AC100V-240V range
• Check whether the rotor is intact and nondestructive before measurement
• Avoid use when exceeding the Measurement range to prevent alarm prompts
Periodically calibrate temperature and viscosity correction factors to ensure accuracy
• Clean the rotor in time after use to prevent contamination
• Pay attention to the compatibility and security of the U disk when storing data
