Overview

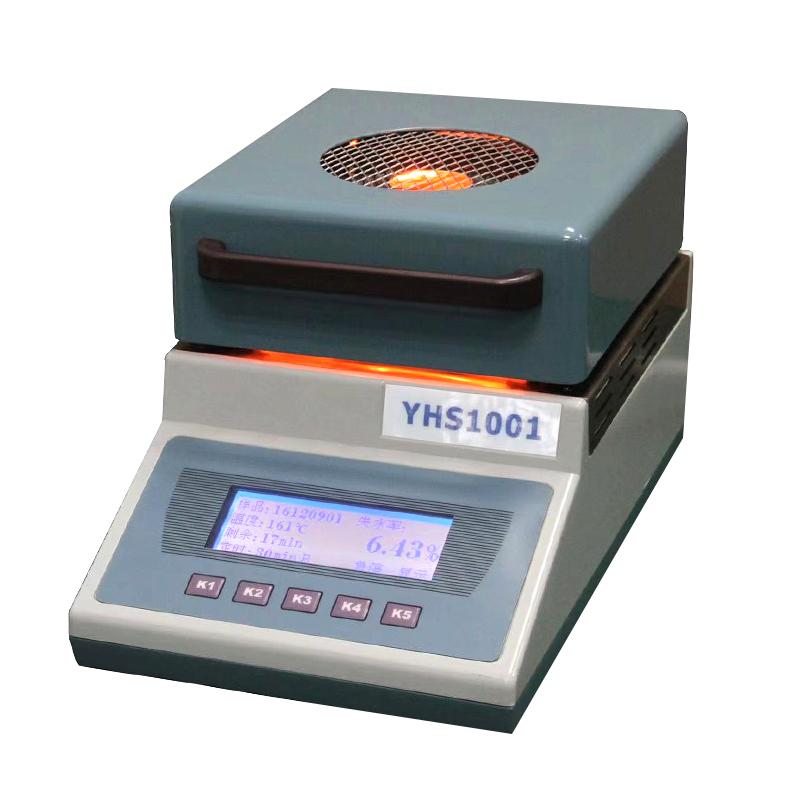

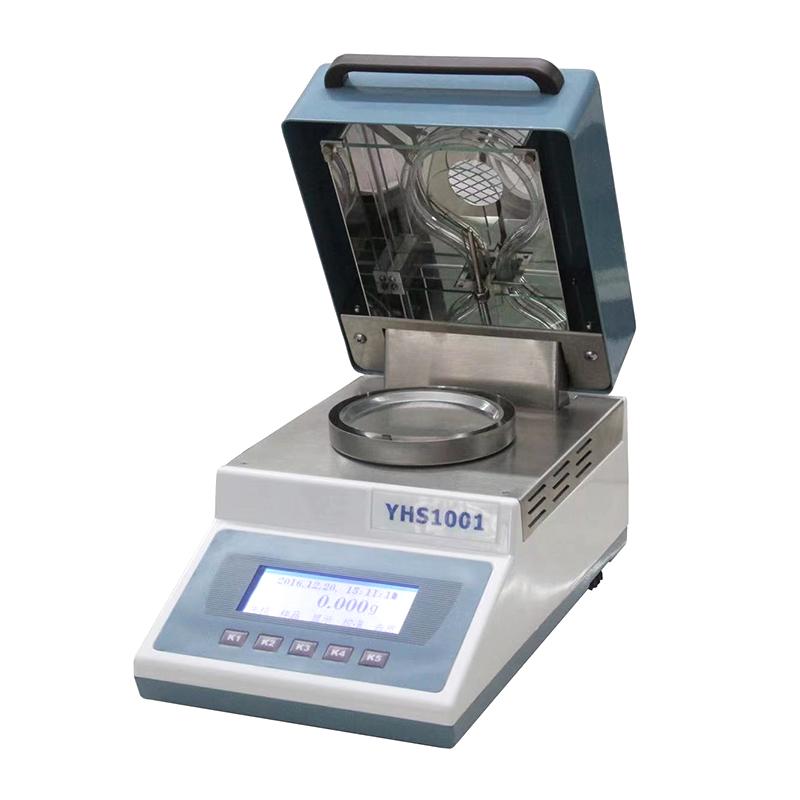

Drying method Moisture Analyzer is a new product that integrates electronic Balance technology, halogen radiation technology and temperature control technology of strain equilibrate. It is small in size, perfect in function, easy to use, sturdy and durable. Under the control of a single-chip microcomputer, it has various functions such as weighing calibrate, temperature and time setting, manual automatic heating selection, adjustable display parameters, and buzzer prompt for heating end. It also supports RS232 serial port printer or computer output 8 parameters and 4 output mode selections. The instrument works fast and can generally complete the test in a few minutes.
Features
1. Compact size, perfect function, easy to use, sturdy and durable
2. Integrated strain equilibrating Electronic Balance technology, halogen radiation technology and temperature control technology
3. Support weighing calibrating, temperature time setting, manual automatic heating selection
4. The display parameters are adjustable, and the heating end buzzer prompts
5. Can be connected to RS232 serial printer or computer, output 8 parameters and 4 output modes
6. Work quickly, usually completing the test in a few minutes
Principle
Drying Moisture Analyzer Based on the Electronic Balance technology of strain equilibrate, combined with halogen radiation heating and temperature control technology, under the program control of a single-chip microcomputer, the water evaporates by heating the sample, and the mass change of the sample is accurately weighed to determine the Moisture content.
Applications
Laboratory and daily purchase and process control in the food, grain, chemical and other industries
Steps
1. Weigh and calibrate
2. Set temperature and time parameters
3. Select manual or automatic heating mode
Step 4 Start the heating assay
5. Read the result after the heating end buzzer prompts
Notice
• Power supply voltage 220V/50Hz before use
• Note that the Heating Temperature range is between RT +~ 160 ℃
• Timer Range not exceeding 120 minutes
• Select the appropriate heating mode according to the characteristics of the sample
Periodically check Sensor and Control system status
