Overview

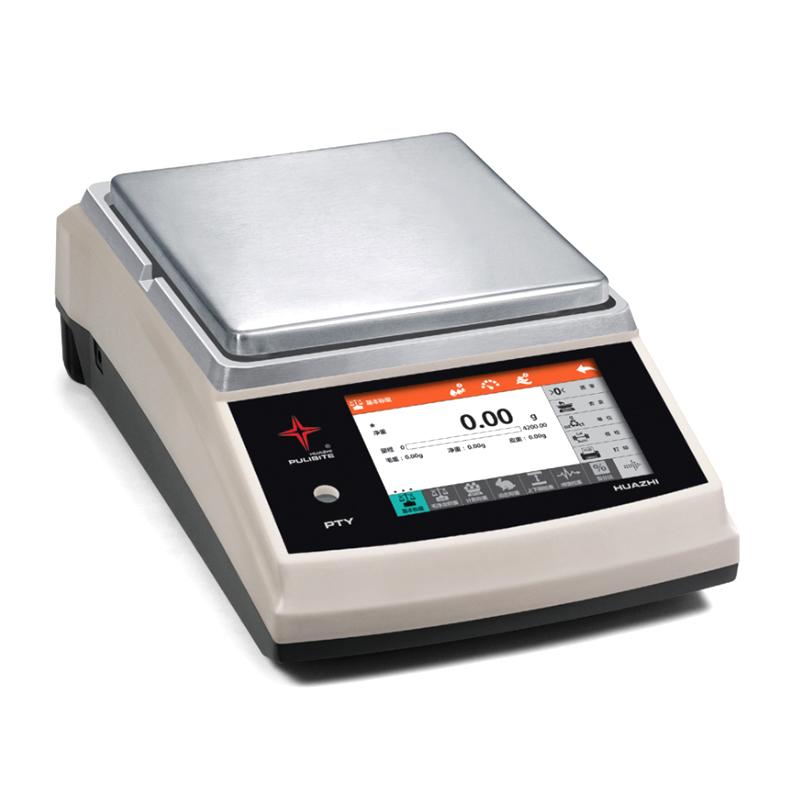

PTY series advanced Precision Balance is a powerful and high-performance precision weighing device from HUAZHI brand. Based on years of professional experience, this product is based on optimizing traditional Sensor technology, using custom time and temperature change control internal correction, combined with software programming to achieve a new generation of single sensor technology breakthroughs, with fast Response, strong durability, high conformity and sensitivity and Stability compatibility characteristics.
Features
1. Single precision mass Sensor
2. Automatic dual range, dual accuracy function
3. Custom Dual Smart Internal Adjustment
4. Six-stage filter adjustable function
5. Anti-interference, anti-static metal shell
6. LCD large interface VATN display
7. Stabilization time adjustable function
8. Shielding units (grams, carats, ounces, etc.)
9. RS232 communication port to connect peripheral devices
10. The switch machine automatically locks the current mode
11. Built-in date and time adjustable function
12. Built-in temperature display function
13. Lower hook weighing device
14. Anti-static Metal Draft Shield Backplane
15. Range progress bar function
16. Weighing data cursor transfer to Excel/Word
17. Wireless communication function (optional)
Principle
The Precision Balance uses a new generation of monolithic sensing technology that triggers internal correction through custom time and temperature change control, combined with corresponding software programming to achieve weighing function. Sensing technology features include fast weighing Response, strong durability, strong conformity, conformity equalization, and compatibility between sensitivity and Stability.
Applications
Percentage weighing, density weighing direct reading, animal (dynamic) weighing, set object weighing counting, cost accounting (pricing), upper and lower limit checking, fur net skin weighing, peak holding, cumulative function
Standards
Internal calibrated
Steps
1. Automatically lock the current mode when powered on.
2. Adjust the weighing Stabilization time as needed
3. Select the appropriate weighing application mode
4. Use RS232 communication port to connect peripheral devices (if required)
5. Operation and Setup via LCD Touchscreen
Notice
Operating Conditions: 10~ 30 ℃, 80% RH, non-condensing environment
Capacity: 1200g/2200g
Repeatability error ： +/- 0.01g/+/- 0.02g
Linearity ： +/- 0.02g/+/- 0.04g
Stabilization time: 3-10s adjustable
Use Anti-Static Metal Draft Shield to Ensure Weighing Accuracy
