Overview

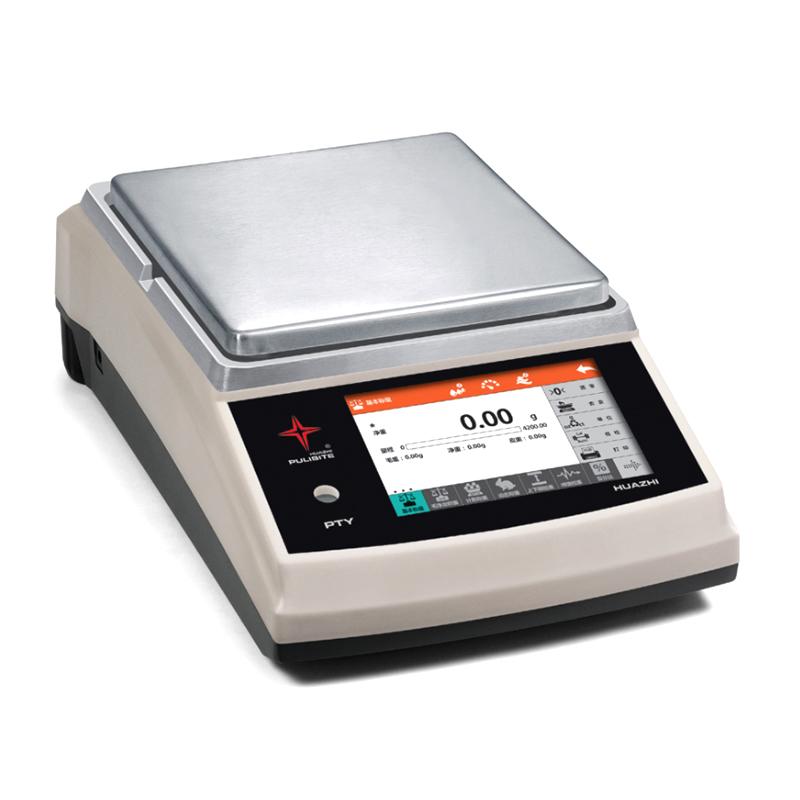

PTY Series is a powerful and high performance Precision Balance, based on years of professional experience, through custom time and temperature change control trigger internal correction and software programming, to achieve a breakthrough in the next generation of single sensing technology. The technology has the characteristics of fast weighing Response, durability, good conformity, sensitivity and Stability compatibility.
Features
1. Single precision mass Sensor
2. Automatic dual range, dual accuracy function
3. Custom Dual Smart Internal Adjustment
4. Six-stage filter adjustable function
5. Anti-interference, anti-static metal shell
6. LCD large interface VATN display
7. Stabilization time adjustable function
8. With twenty kinds of Shielding units such as grams, carats, and Xinsi
9. Equipped with RS232 communication port to connect peripheral devices
10. The switch machine automatically locks the current mode
11. Built-in date and time adjustable function
12. Built-in temperature display function
13. Lower hook weighing device
14. Anti-static Metal Draft Shield Backplane
15. Range progress bar function
16. Weighing data cursor transfer to Excel/Word
17. Wireless communication function (optional)
Principle
The product uses a new generation of single sensor technology, which triggers internal correction through custom time and temperature change control, and combines corresponding software programming to achieve precision weighing. Sensor technology features include fast weighing Response, strong durability, strong conformity, conformity Balance, sensitivity and Stability are compatible with each other.
Applications
Percentage weighing, density weighing direct reading, animal (dynamic) weighing, set object weighing counting, cost accounting (pricing), upper and lower limit checking, fur net skin weighing, peak holding, accumulation
Standards
Internal calibrated
Steps
1. Automatically lock the current mode when powered on.
2. Adjust the weighing Stabilization time as needed
3. Select the appropriate weighing application mode
4. Use the RS232 communication port to connect peripherals
5. Operation and data reading through the large LCD interface
6. Weighing data can be transferred to Excel/Word
Notice
• Operating Conditions: 10~ 30 ℃, 80% RH, non-condensing
• Capacity: 3200g/4200g models are 1200g/2200g respectively
• Repeatability error ： +/- 0.01g/+/- 0.02g
• Linearity ： +/- 0.02g/+/- 0.04g
• Stabilization time: 3-10s adjustable
