Overview

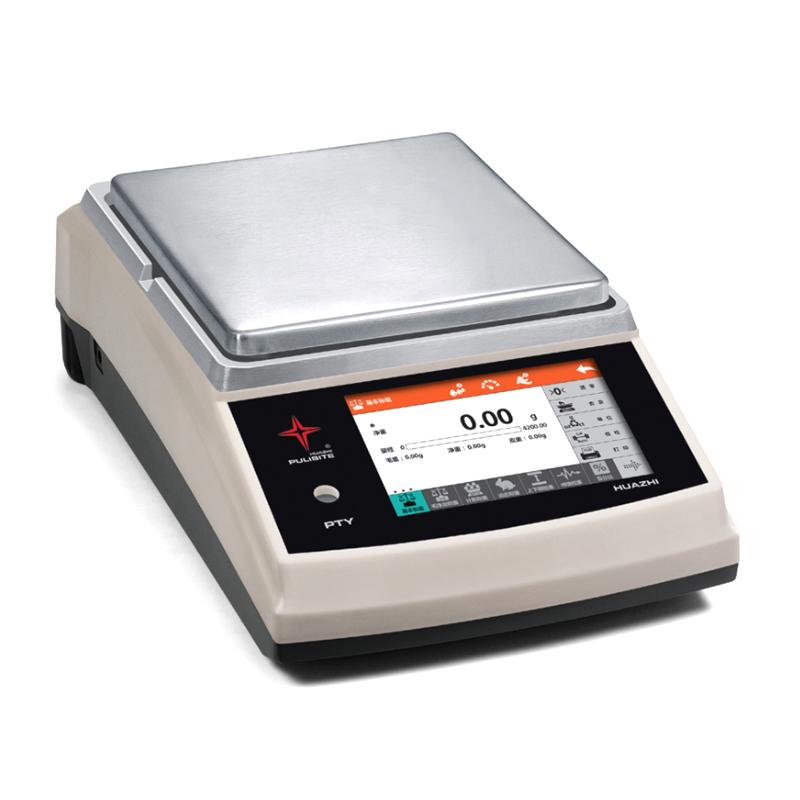

PTY Series is a powerful and excellent performance Precision Balance, using a new generation of single sensor technology, through custom time and temperature change control trigger internal correction, to achieve rapid weighing Response, durability, conformity, sensitivity and Stability compatible excellent performance.
Features
1. Single precision mass Sensor
2. Automatic dual range, dual accuracy function
3. Custom Dual Smart Internal Adjustment
4. Six-stage filter adjustable function
5. Anti-interference, anti-static metal shell
6. LCD large interface VATN display
7. Stabilization time adjustable function
8. Shielding units (grams, carats, ounces, etc.)
9. RS232 communication port to connect peripheral devices
10. The switch machine automatically locks the current mode
11. Built-in date and time adjustable function
12. Built-in temperature display function
13. Lower hook weighing device
14. Anti-static Metal Draft Shield Backplane
15. Range progress bar function
16. Transfer weighing data directly to Excel/Word
17. Wireless communication function (optional)
Principle
Adopting a new generation of single-sensor technology, it controls and triggers internal corrections through custom time and temperature changes, and combines corresponding software programming to achieve precise control of the weighing process to ensure the accuracy and Stability of the weighing results.
Applications
Percentage weighing, density weighing direct reading, animal (dynamic) weighing, set object weighing counting, cost accounting (pricing), upper and lower limit checking, fur net skin weighing, peak holding, cumulative function
Standards
Internal calibrated
Steps
1. Automatically lock the current mode when powered on.
2. Select the weighing application mode as needed
3. Adjust Filter Level and Stabilization time settings
Step 4 Perform weighing operations
5. Transmit data through RS232 interface or wireless communication
6. Use the lower hook device for special weighing
Notice
※ Operating Ambient Temperature: 10~30°C
※ Operating Ambient Humidity: Below 80% RH, non-condensing
※ Avoid Static Interference
※ Note Weighting Range Limitation
※ Perform Internal Calibration Regularly
※ Use Anti-static Metal Draft Shield
