Overview

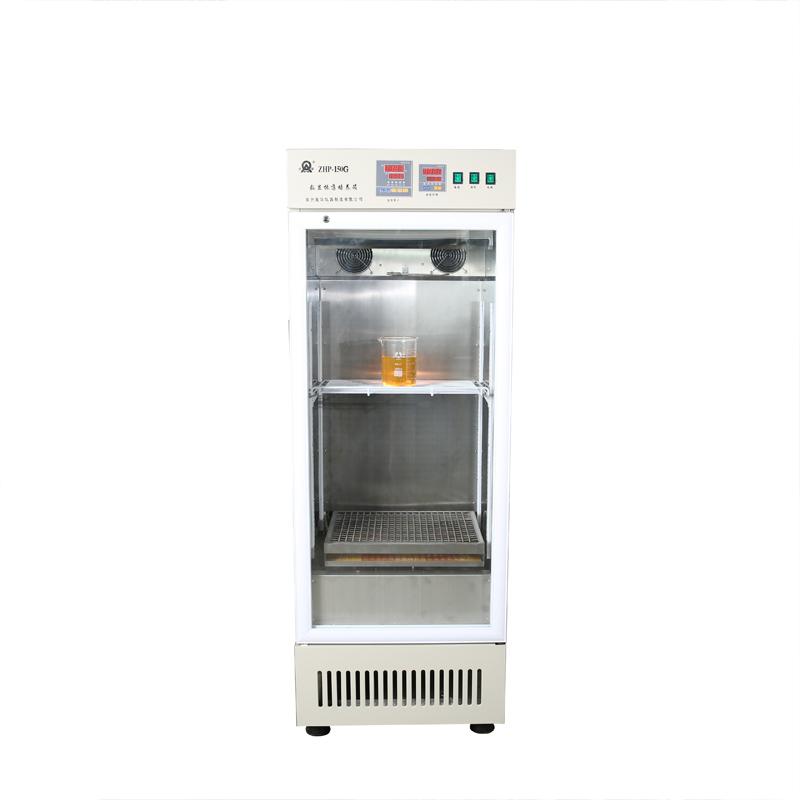

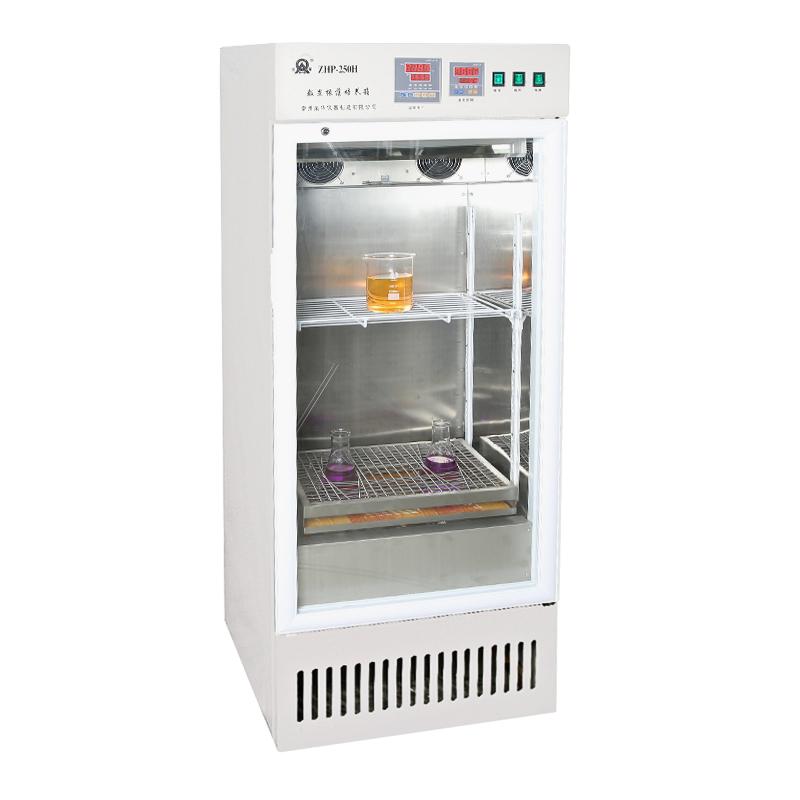

RONGHUA INSTRUMENT ZHP-150G digital display shaking incubator has a two-way temperature regulation system for refrigeration and heating, and the temperature is controllable. It is an indispensable laboratory equipment for scientific research and education departments such as plants, organisms, microorganisms, genetics, viruses, and environmental protection. Widely used in low temperature thermostatic testing, foster testing, environmental testing, etc.
Features
1. The heat insulation material of the box is made of polyurethane foamed foam on site, which has strong anti-interference ability against external heat (cold) sources

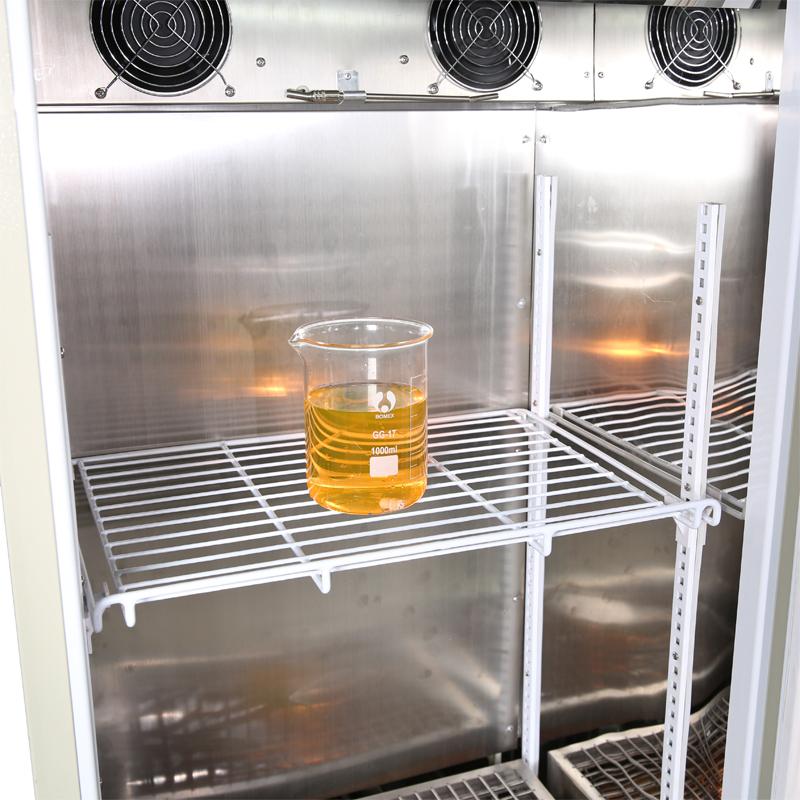

2. The inner cavity is made of stainless steel forming process, which has strong corrosion resistance

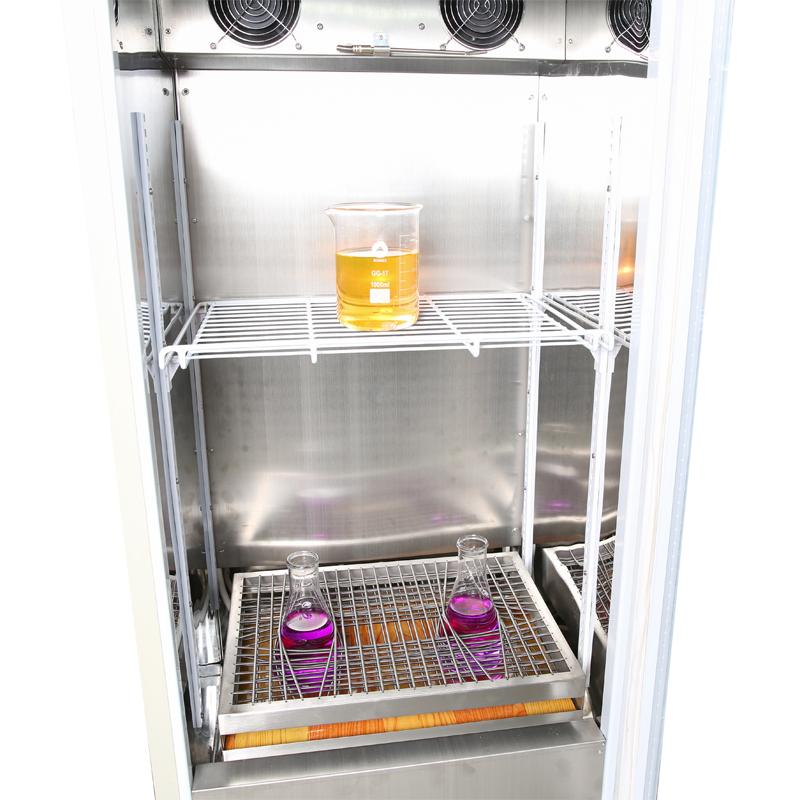

3. Glass box door is convenient for observing the working cavity
4. To protect the refrigeration Compressor, the control circuit is designed with power-off protection and 4-minute delay function
5. Temperature automatic control, using red LED display to display numbers intuitively and clearly
6. Shaker adopts stepless speed regulation, stable and noise-free
Principle
The product realizes temperature control through two-way temperature control system of cooling and heating, and adopts automatic Control system and red LED display for temperature monitoring display. Shaker realizes smooth oscillation operation through stepless speed control device.
Applications
Plant, biological, microbial, genetic, virus, environmental protection and other scientific research, education department laboratory, low temperature thermostatic test, foster test, environmental test
Steps
1. Connect the AC 220V 50Hz power supply
2. Set the required Temperature range (5~ 50 ℃)
3. Set Oscillation Frequency (Start~ 200rpm)
4. Start the device running
5. Glass box door to observe the working cavity
Notice
• The incubator needs to be at an Ambient Temperature of 16~ 32 ° C during refrigeration
• Power supply voltage is 220V 50Hz
• Please confirm that the equipment is in good condition and nondestructive before use
• Pay attention to safety protection during operation
