Overview

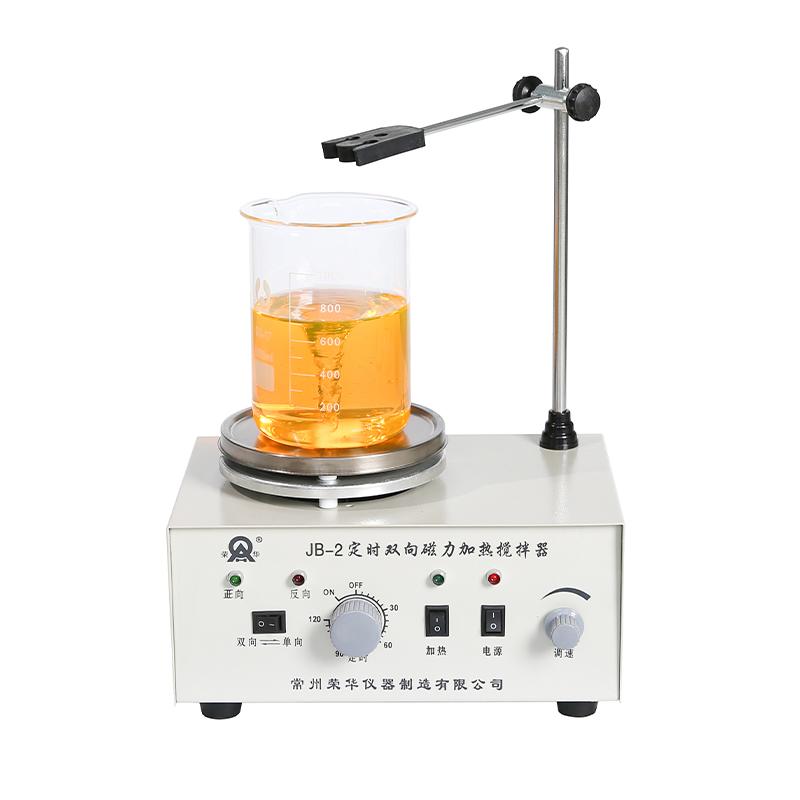

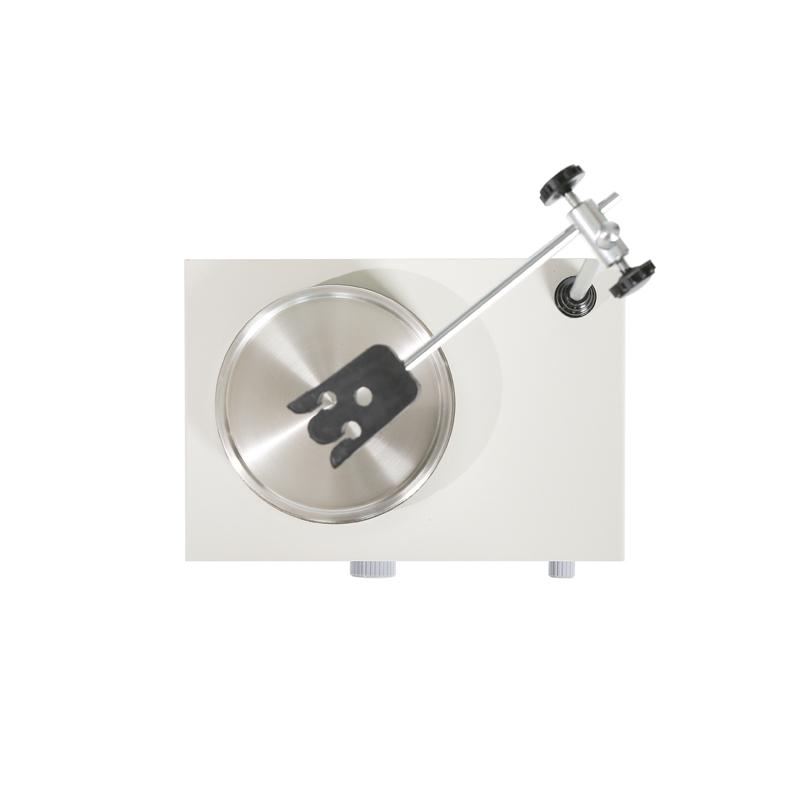

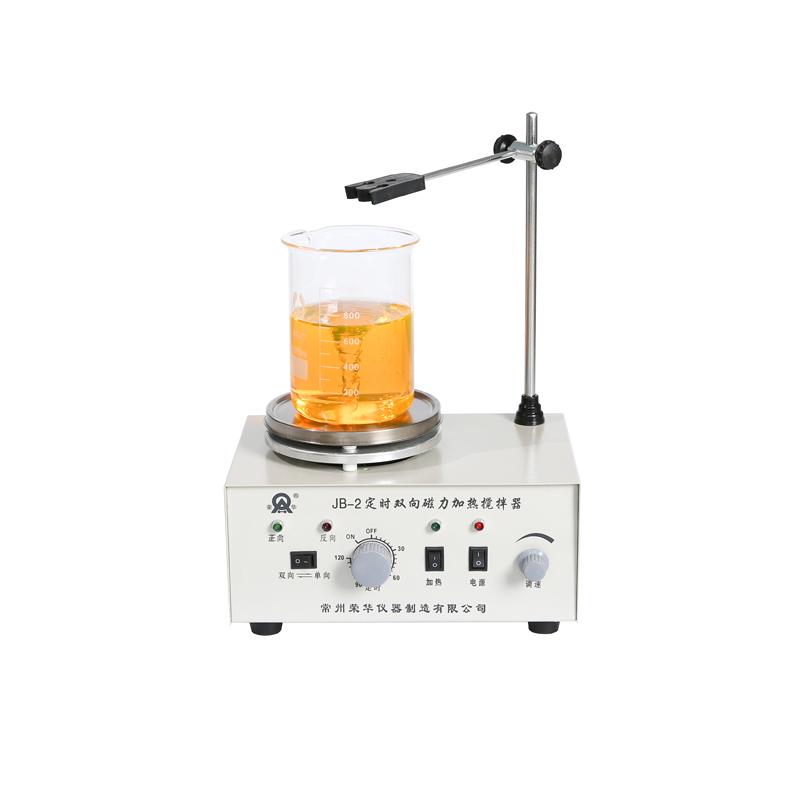

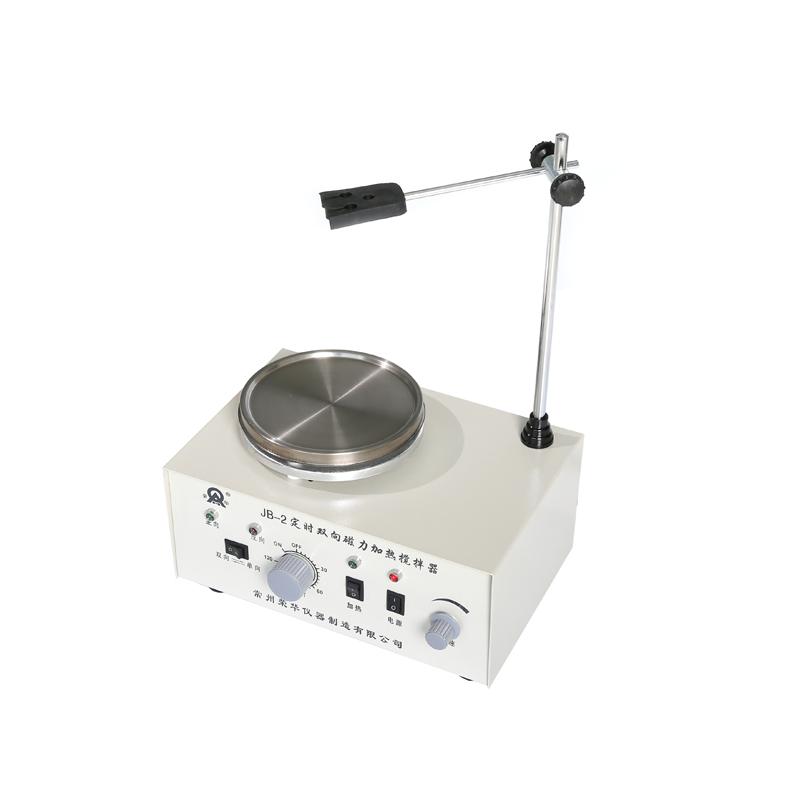

JB-2 timed bi-directional Magnetic Stirrer is a JB series product of RONGHUA INSTRUMENT brand. It is easy to operate and runs smoothly. It has the function of stepless speed regulation. It can precisely and stably stir liquids in a wide speed range, and is especially suitable for small volume samples. The product uses strong magnets and large-capacity stirring motors. The whole machine is beautiful in shape and has two-way, timed stirring functions. It is an ideal tool for laboratories and scientific research fields.
Features
1. Two-way mixing function
2. Timed mixing function
3. Stepless speed regulation, speed range 0~ 2600rpm
4. Heating function, Heating power 400W
5. Easy to operate, smooth operation
6. The whole machine is beautiful in appearance
7. Using strong magnets and large-capacity stirring motors
Principle
The JB-2 magnetic heating Stirrer generates a magnetic field through a strong magnet and drives the stirrer swirl/spin to achieve liquid stirring. Using stepless speed regulation technology, the stirring speed can be precisely controlled in the range of 0~ 2600rpm, and it has a heating function to heat and stir the sample.
Applications
Petroleum, chemical, environmental protection, biochemical laboratories, analysis rooms, education and research
Standards
Power supply voltage: 220V 50HZ
Steps
1. Place the Stirrer on a smooth work surface
2. Connect 220V 50HZ power supply
3. Place the container to be stirred on the Stirrer work surface
Step 4 Put in the appropriate stirrer
5. Set the required stirring speed (0~ 2600rpm)
6. Set the timing time (0~ 120min)
7. If heating is required, turn on the heating function
8. Stirrer starts working
Notice
• The maximum stirring capacity is 3L, please do not use in excess
• Power supply voltage 220V 50HZ before use
• Timer Range should be set within 0 to 120 minutes
• The stirring speed should be adjusted within the range of 0~ 2600rpm
• Please pay attention to safety protection when using the heating function
• Stirrer face clean and drying
Do not use in humid environments
