Overview

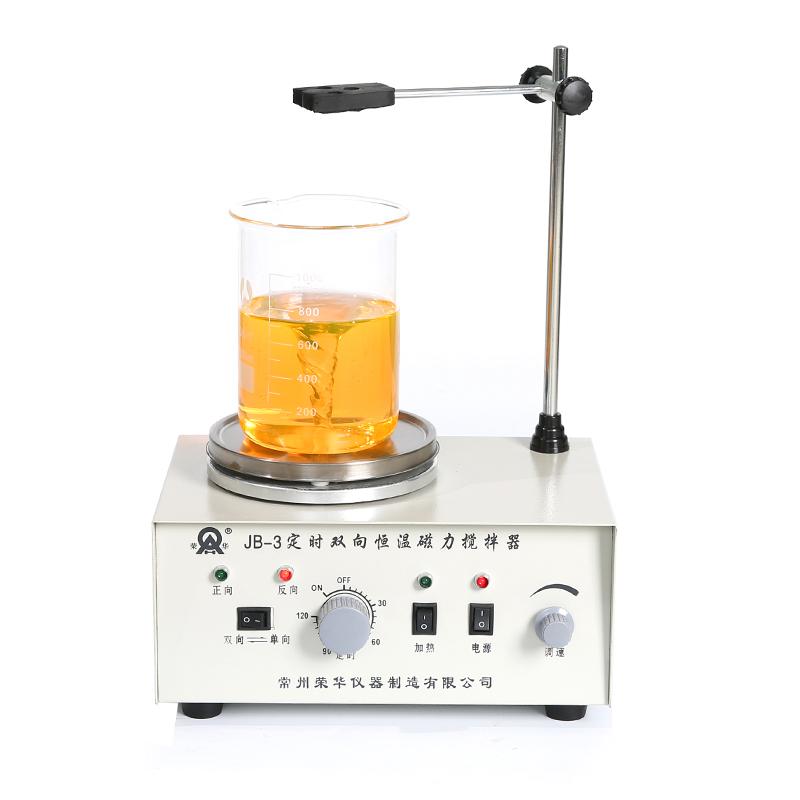

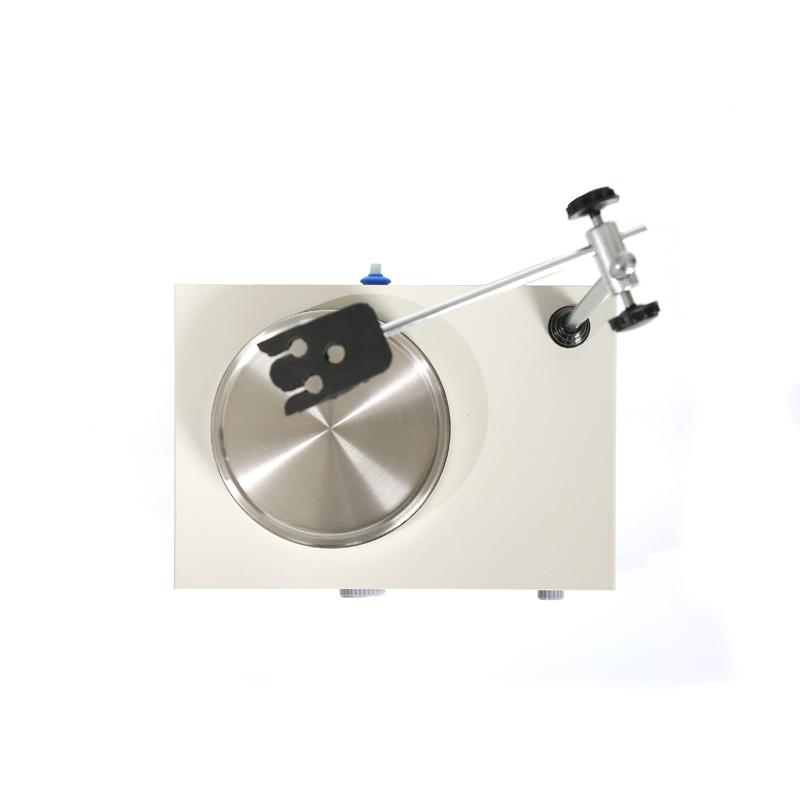

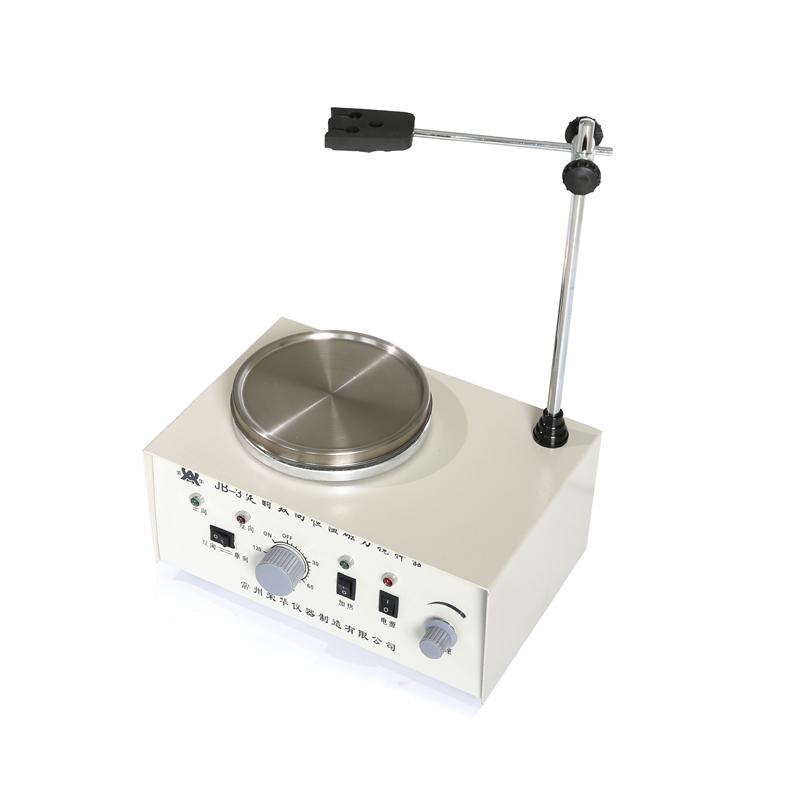

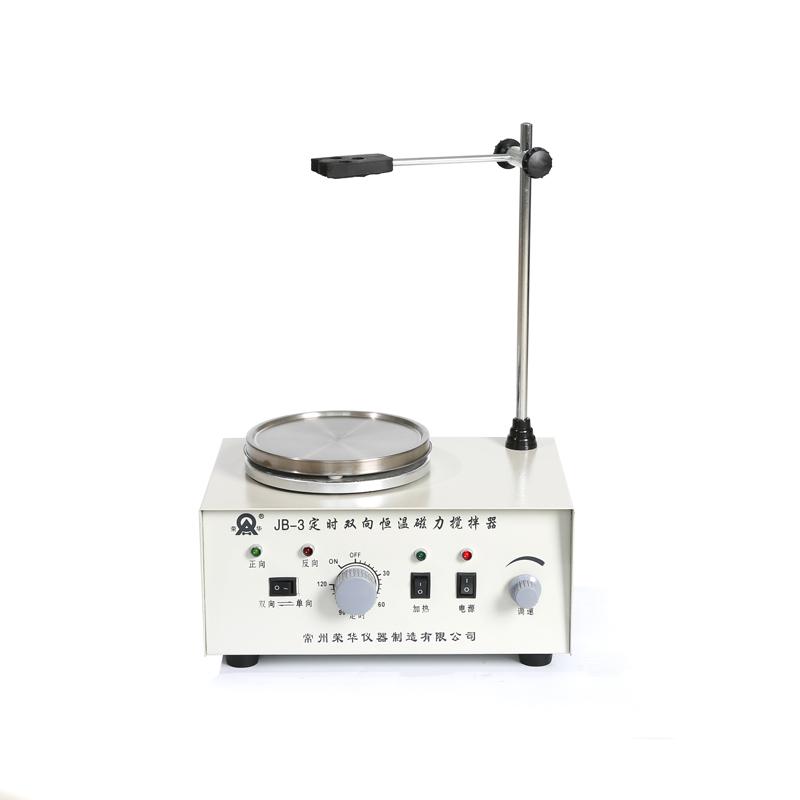

The RONGHUA INSTRUMENT JB-3 timing two-way Magnetic Stirrer is easy to operate and runs smoothly. It adopts stepless speed regulation technology, which can precisely and stably stir liquids in a wide speed range, especially suitable for small-volume samples. The equipment uses strong magnets and large-capacity stirring motors. The whole machine is beautiful in shape and has two-way and regular stirring functions. It is an ideal tool for petroleum, chemical, environmental protection, biochemical laboratories, analysis rooms and education and scientific research fields.
Features
1. Two-way mixing function to enhance the mixing effect
2. Timed stirring, support 0~ 120 minutes setting
3. Stepless speed regulation, speed range 0~ 2600rpm
4. Heating function, Temperature range from room temperature to 100 ℃
5. Strong magnet design for smooth operation
6. Large capacity stirring motor, support Max. Stirring Capacity 3L
7. Easy to operate, beautiful appearance of the whole machine
Principle
The device generates a magnetic field through a strong magnetic steel, which drives the stirrer swirl/spin to realize liquid stirring. The stepless speed control system is used to precisely control the stirring speed, and the temperature control of the sample is combined with the heating element. The stirring time is set by the timer to realize two-way alternating stirring to ensure that the liquid is mixed evenly.
Applications
Petroleum, chemical, environmental protection, biochemical laboratories, analysis rooms, education and research
Standards
Power supply voltage: 220V 50HZ
Steps
1. Connect the device to a 220V power supply
2. Place the mixing container on the working panel
Step 3 Put the stirrer into the liquid
4. Set the required stirring speed (0~ 2600rpm)
5. Set the heating temperature (room temperature to 100 ° C)
6. Set the timing time (0 to 120 minutes)
7. Activate the two-way mixing function
8. Turn off the power after stirring
Notice
• Power supply voltage 220V 50HZ before use
• Max. Capacity of stirring not more than 3L
• Pay attention to temperature control when heating to avoid overheating
• Timing setting should be within the range of 0 to 120 minutes
• The stirring speed setting should be adjusted according to the nature of the liquid
• Clean the work panel in time after use
Avoid operating equipment in humid environments
