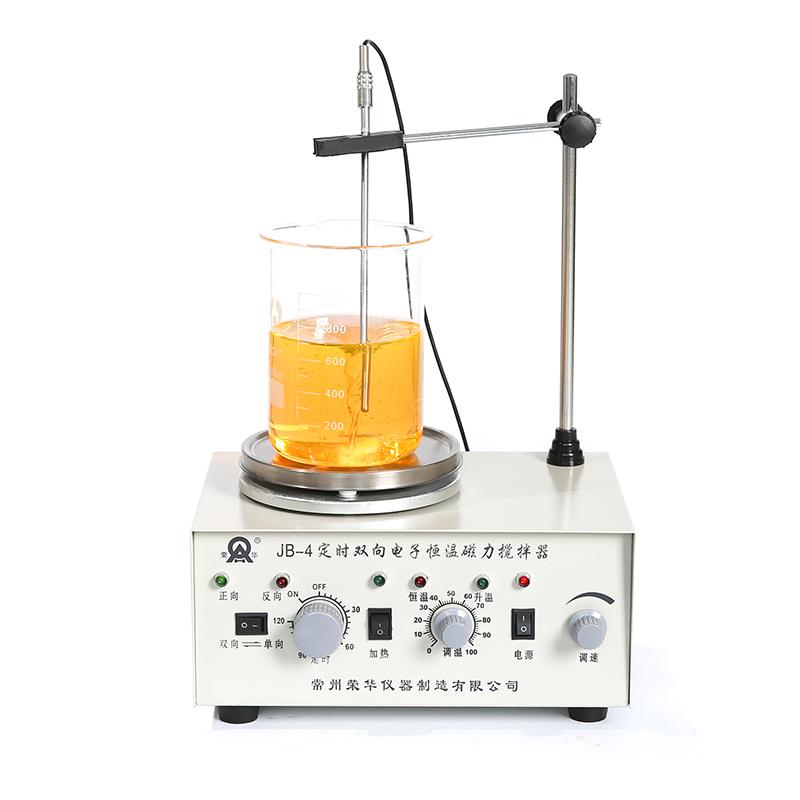

Overview
The RONGHUA INSTRUMENT JB-4 timing two-way Magnetic Stirrer is easy to operate and runs smoothly. It adopts stepless speed regulation technology, which can precisely and stably stir liquids in a wide speed range, especially suitable for small-volume samples. The equipment uses strong magnets and large-capacity stirring motors. The machine is beautiful in shape and has two-way, regular stirring functions. It is an ideal tool for petroleum, chemical, environmental protection, biochemical laboratories, analysis rooms and education and scientific research fields.
Features
1. Two-way mixing function to provide a more uniform mixing effect
2. Timed stirring function, can set 0~ 120 minutes Timer Range
3. Stepless speed regulation technology, speed range 0~ 2600rpm
4. Electronic temperature control system, Temperature range from room temperature to 100 ℃
5. Strong magnet design to ensure smooth operation
6. Large capacity stirring motor, support Max. Stirring Capacity 3L
7. Easy to operate, beautiful appearance of the whole machine
Principle
The Magnetic Stirrer generates a magnetic field through a strong magnetic steel, which drives the stirrer to swirl/spin in the container to achieve liquid mixing. The stepless speed control system is used to precisely control the stirring speed, the electronic temperature control system maintains the set temperature, the two-way stirring function realizes forward and reverse stirring by changing the direction of the magnetic field, and the timing function can preset the Working time.
Applications
Petroleum, chemical, environmental protection, biochemical laboratories, analysis rooms, education and research
Standards
Power supply voltage: 220V 50HZ
Steps
1. Place the device on a stable countertop and connect it to the power supply
2. Place the container containing the sample in the Stirrer work area
Step 3 Put in the appropriate stirrer
4. Set the required stirring speed (0~ 2600rpm)
5. Set the required temperature (room temperature to 100 ° C)
6. Set the timing time (0 to 120 minutes)
7. Select the mixing direction (two-way)
8. Start the equipment and start stirring
Notice
• Make sure the equipment is placed on a smooth surface before use
• Max. Capacity of stirring not more than 3L
• The setting temperature must not exceed 100 ° C
• Timer Range should be within 0 to 120 minutes
• Power supply voltage 220V 50HZ
• Regularly clean equipment surfaces
• Avoid use in humid environments
