Overview

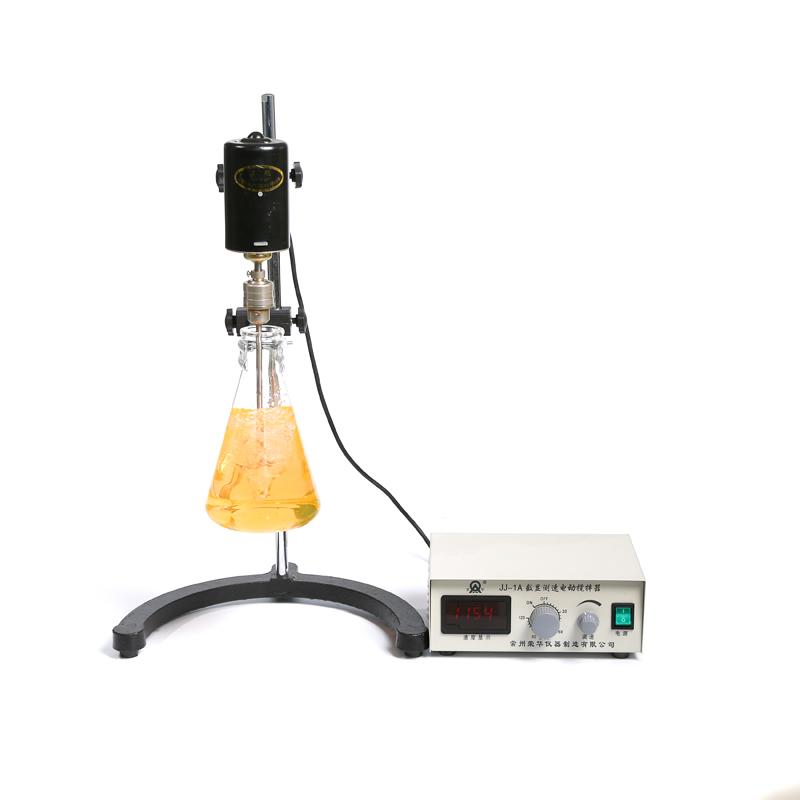

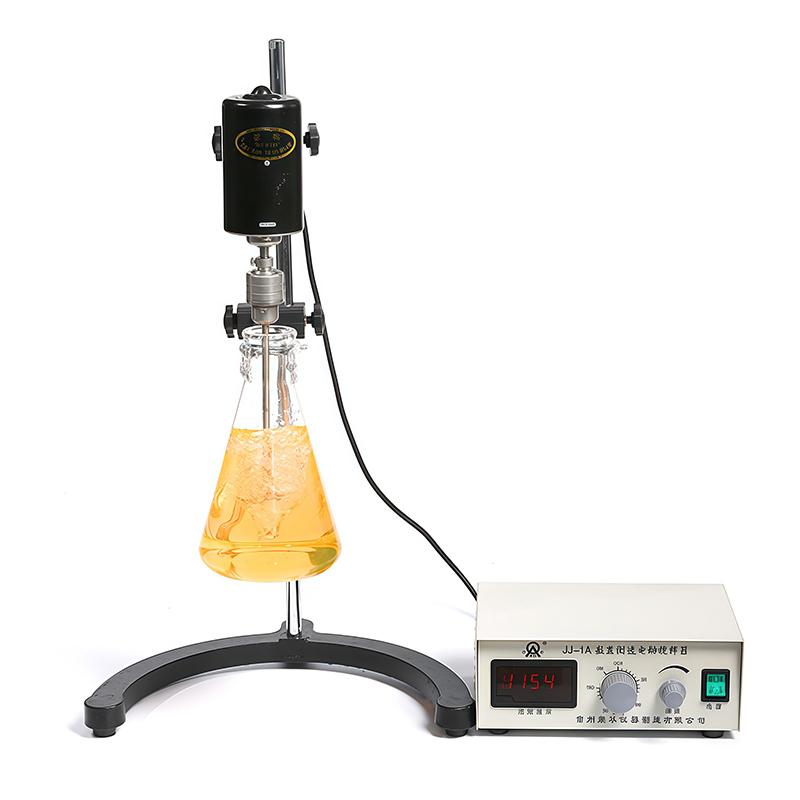

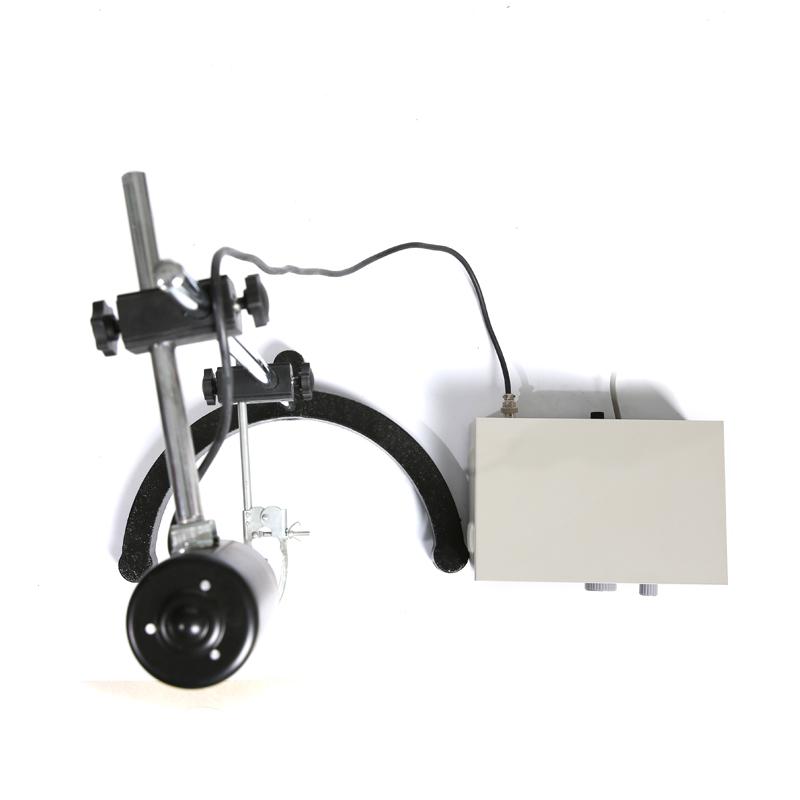

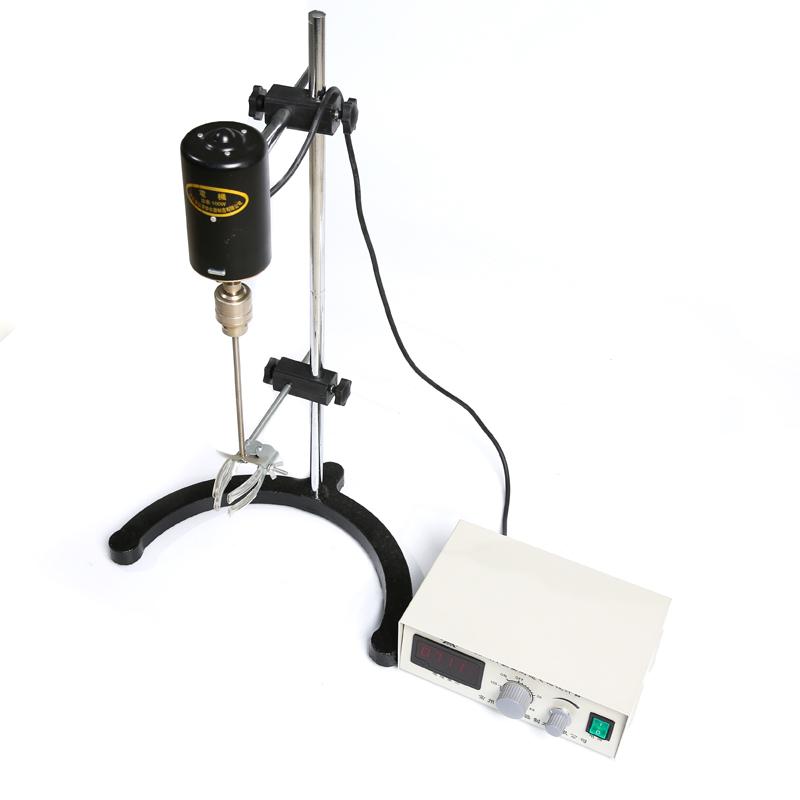

RONGHUA INSTRUMENT JJ-1A (160W) precision booster powerbasic stirrer is a digital display precision powerbasic stirrer with reasonable design and novel structure. It adopts DC motor and stepless speed regulation technology, and quotes professional booster speed line. It has the characteristics of stable Rotation speed, large torque, low noise, intuitive number display, simple and safe operation. It is the basic equipment required by universities, R & D institutions, chemical industry and other units.
Features
1. Using DC motor and stepless speed regulation, Speed range 0~ 3000rpm
2. Refer to professional augmented speed line to ensure stable Rotation speed and large torque
3. Low noise, intuitive number display, easy and safe operation
4. Reasonable design, novel structure, suitable for a variety of application scenarios
Principle
The Stirrer is driven by a DC motor, adopts stepless speed regulation technology, and combines the force-increasing speed-stabilizing circuit to achieve stable Rotation speed and large torque output. Users can adjust the stirring speed through the speed control knob, and the parameters are displayed intuitively on the digital display screen to ensure accurate operation.
Applications
Universities, R & D institutions, chemical units
Steps
1. First support the stirringrod on the motor shaft clamp
2. Adjust the speed knob to the lowest speed position
3. Place the solution to be stirred in the center of the stirringrod
4. Turn on the power switch
5. Adjust the speed knob to the desired stirring speed
6. When timing operation is required, select the required time or normally open
Notice
• Be sure to ground the wire when using it
• If you find that the stirringrod is not centered and the stirring is unstable during work, please turn off the power supply and adjust the support chuck to make the stirringrod concentric
• Medium speed stirring can reduce vibration and prolong service life
• Instruments should be kept dry and clean
