Overview

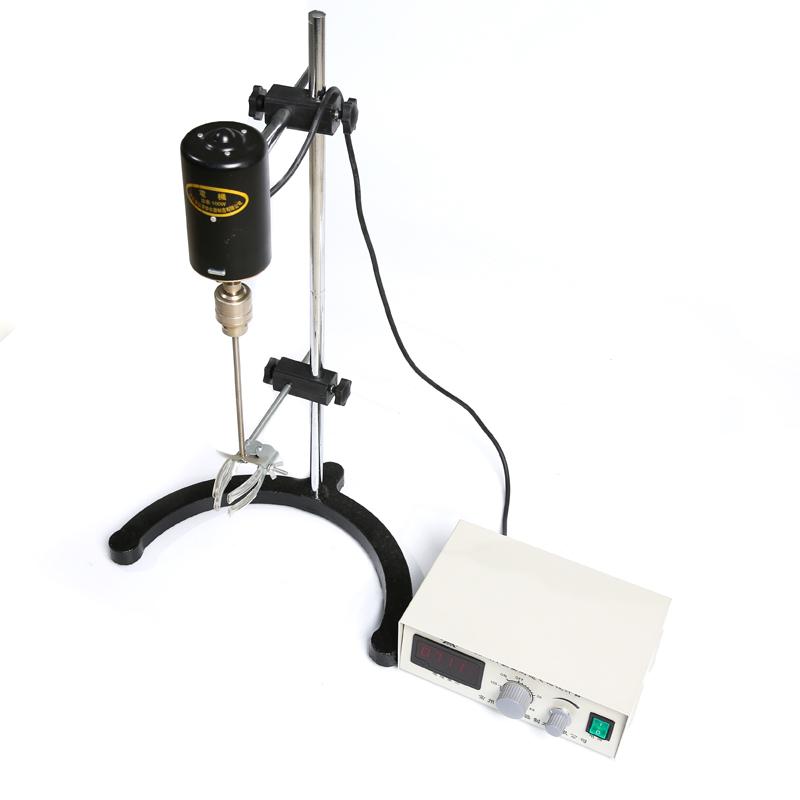

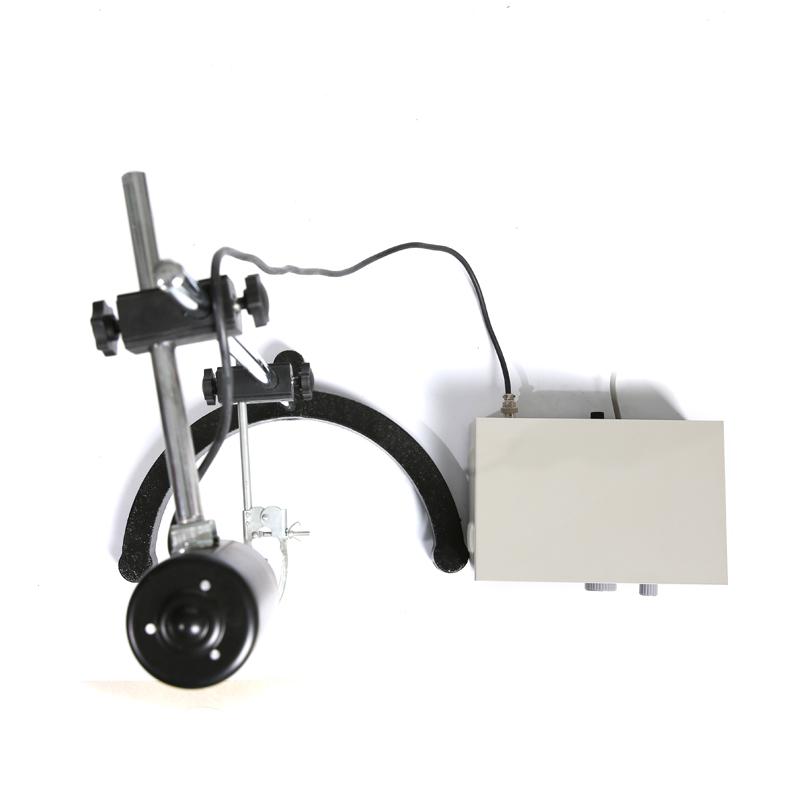

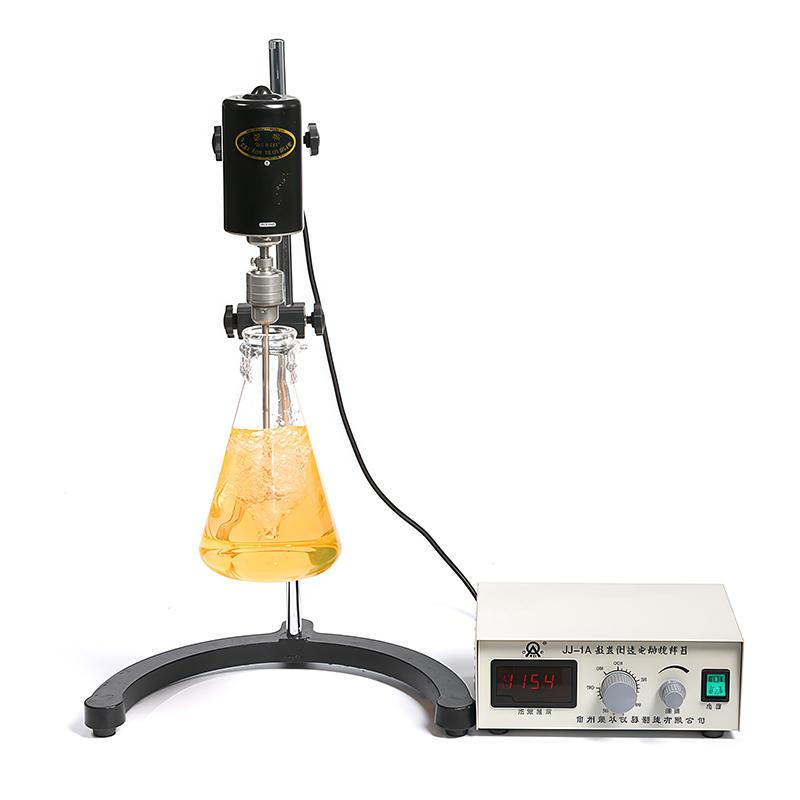

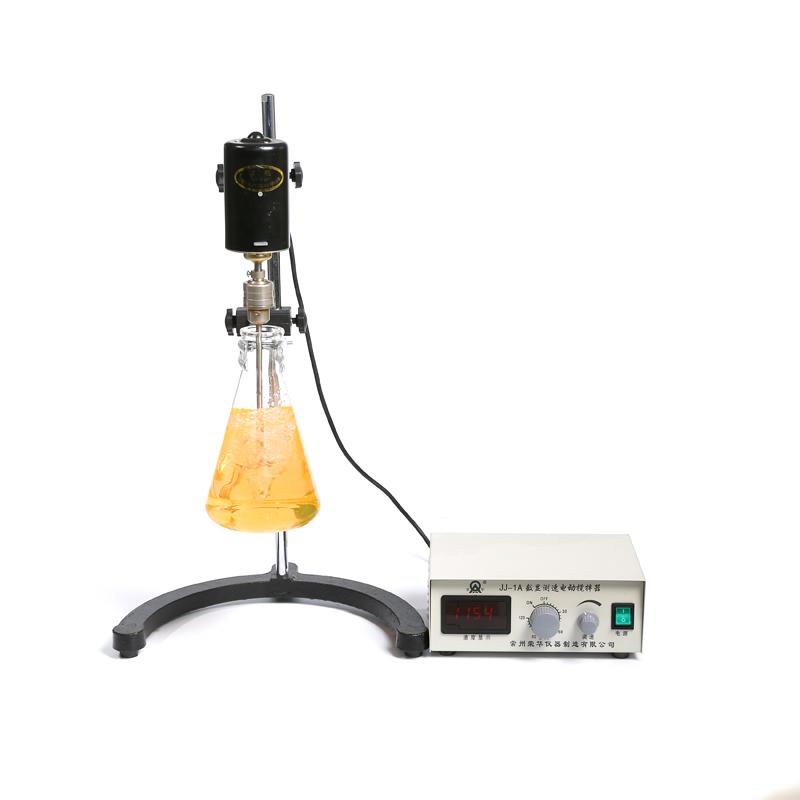

RONGHUA INSTRUMENT JJ-1A (200W) precision booster powerbasic stirrer is a well-designed and novel equipment. It adopts DC motor to realize stepless speed regulation and is equipped with professional booster speed line. It has the characteristics of stable Rotation speed, large torque, low noise, intuitive digital display and simple and safe operation. It is the basic equipment required by universities, R & D institutions and chemical industries.
Features
1. Adopt DC motor to achieve stepless speed regulation
2. Equipped with professional augmented speed line to ensure stable Rotation speed
3. Large torque and low noise
4. Digital display is intuitive, easy and safe to operate
5. Rational design and novel structure
Principle
The device drives stirringrod swirl/spin through DC motor, and uses professional augmented speed line to control Rotation speed to achieve stepless speed regulation and stable operation.
Applications
Universities, R & D institutions, chemical units
Steps
1. First support the stirringrod on the motor shaft clamp, and adjust the speed control knob to the lowest speed position
2. Place the solution to be stirred in the center of the stirringrod
3. Turn on the power switch, adjust the speed knob to the desired stirring speed
4. When timing operation is required, select the required time or normally open
Notice
• Be sure to ground the wire when using it
• If you find that the stirringrod is not centered and the stirring is unstable during work, please turn off the power supply and adjust the support chuck to make the stirringrod concentric
• Medium speed stirring can reduce vibration and prolong service life, the instrument should be kept drying and clean
