Overview

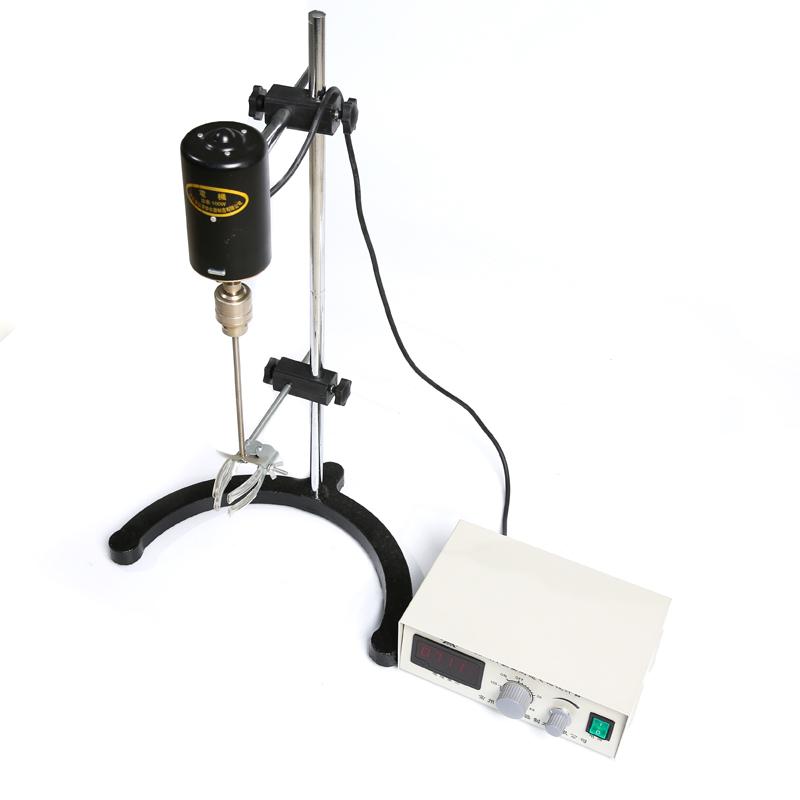

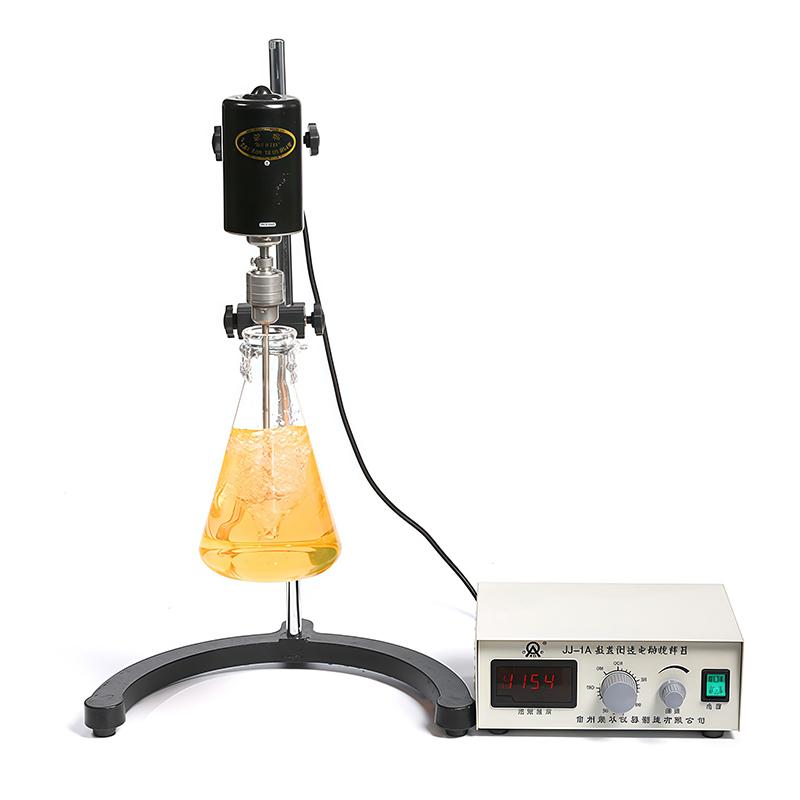

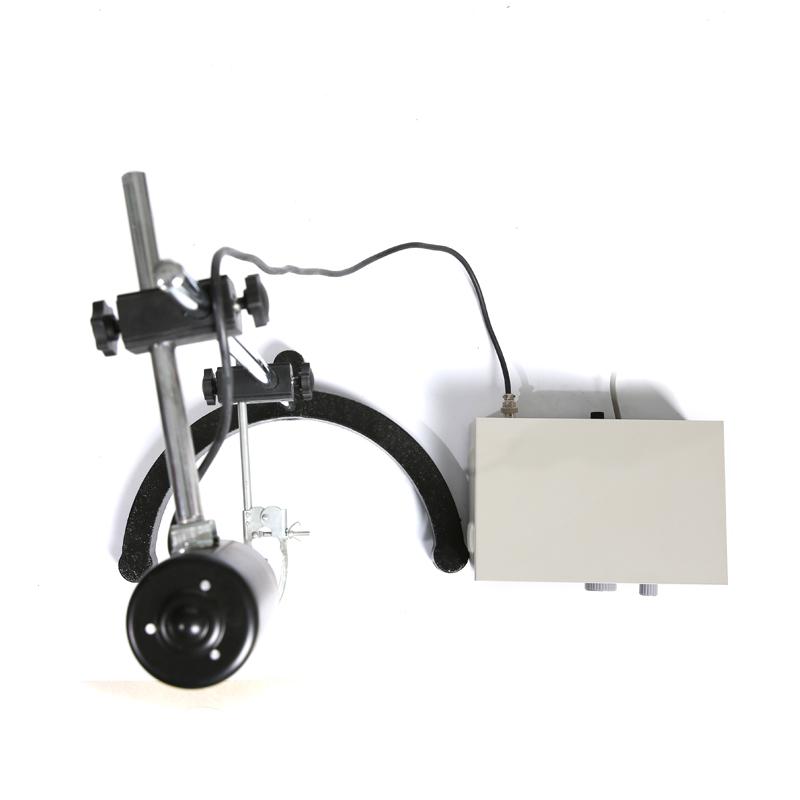

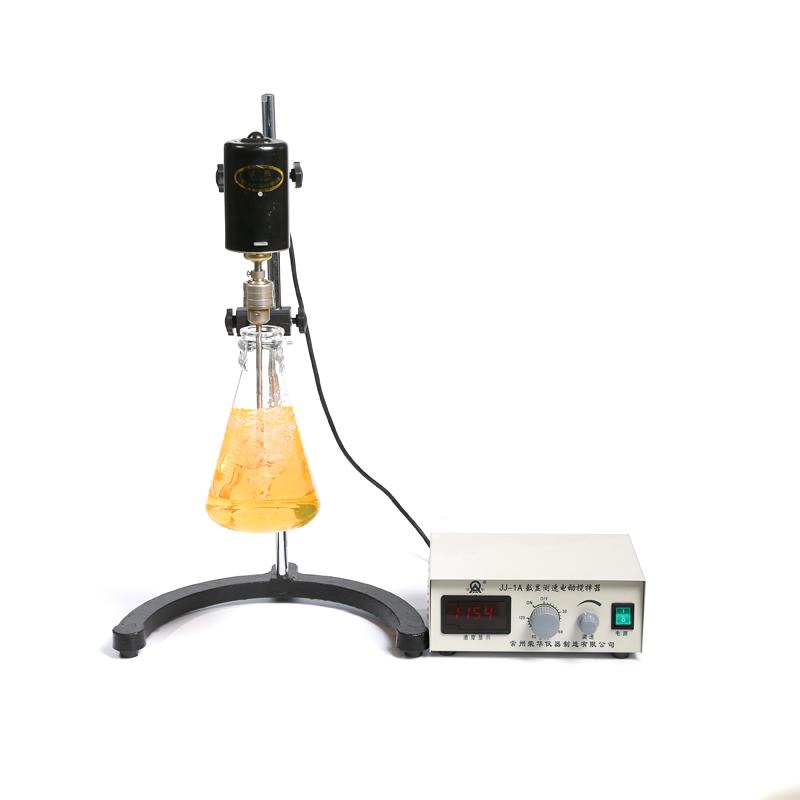

RONGHUA INSTRUMENT JJ-1A (300W) precision booster powerbasic stirrer is a reasonable design, novel structure of digital display precision powerbasic stirrer, using DC motor to achieve stepless speed regulation, equipped with professional booster speed line, with Rotation speed stability, large torque, low noise, number display intuitive and easy and safe operation, is the basic equipment required by universities, R & D institutions, chemical industry and other units.
Features
1. DC motor and stepless speed regulation design
2. Equipped with professional augmented speed line to ensure stable Rotation speed
3. Large torque and low noise
4. The number display is intuitive, easy and safe to operate
5. Rational design and novel structure
Principle
The Stirrer is driven by a DC motor, adopts a stepless speed regulation mode, and cooperates with a professional force-increasing speed-stabilizing circuit to achieve stable Rotation speed control and large torque output, ensuring a smooth and reliable mixing process.
Applications
Universities, R & D institutions, chemical units
Standards
Power supply voltage: 220V 50HZ
Steps
1. Support the stirringrod on the motor shaft clamp
2. Adjust the speed knob to the lowest speed position
3. Place the solution to be stirred in the center of the stirringrod
4. Turn on the power switch
5. Adjust the speed knob to the desired stirring speed
6. When timing operation is required, select the required time or normally open
Notice
• Be sure to ground the wire when using it
• If you find that the stirringrod is not centered and the stirring is unstable during work, please turn off the power supply and adjust the support chuck to make the stirringrod concentric
• Medium speed stirring can reduce vibration and prolong service life
• Instruments should be kept dry and clean
