Overview

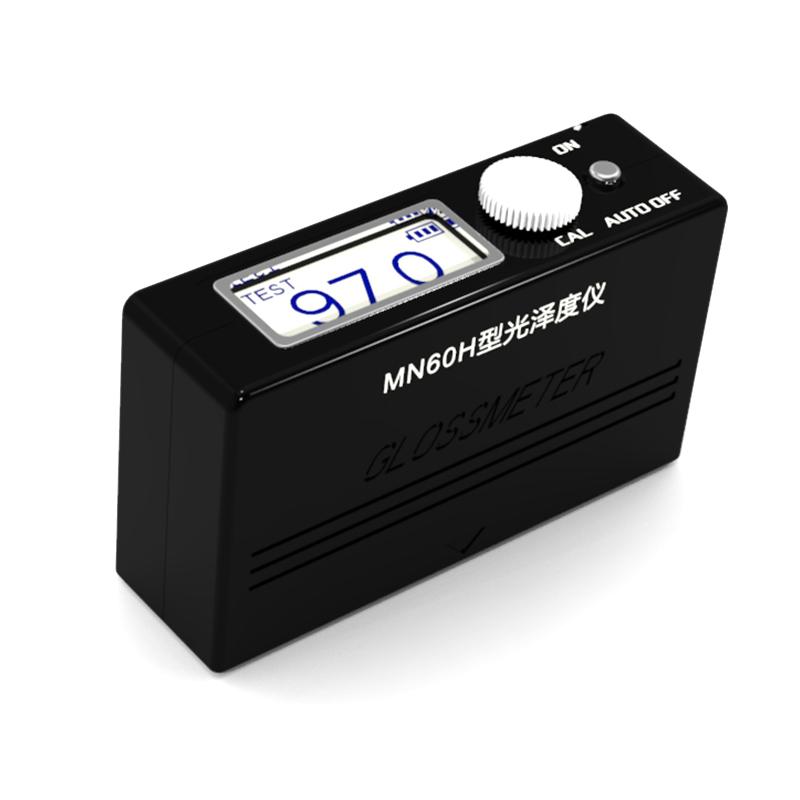

QILI MN60-H glossmeter is a Portable measuring instrument designed for high Gloss surfaces such as metals, platings, and Glass mirrors. The instrument is designed and produced in strict accordance with international standards ISO2813, foreign standards ASTMD523, DIN67530 and national standards GB9754, GB9966, GB/T13891, and the technical indicators meet and exceed the requirements of the first-level working machine in the JJG696-2002 "Mirror-to-Glossiness Meter and Glossiness Board" appraisal regulations.
Features
1. Small size, light weight, real laptop
2. Power saving, worry-free and effective, one battery can be used continuously for nearly 60 hours to measure nearly 10,000 data
3. High Stability, Instant Testing
4. Quartz crystal standard version, with extremely low annual change rate
5. LED Long Life Illuminant
6. Automatic shutdown, saving power and avoiding battery failure caused by liquid flow
Principle
The Glossmeter irradiates the measured surface through 60 ° Measurement Angles, the Measuring Area is 10 * 20mm, and the Glossiness value is calculated according to the reflected light intensity of the surface. Measurement range is 0~ 1999GU.
Applications
Gloss measurement of metal, platings, Glass
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB9966、GB/T13891、JJG696-2002、ISO7668
Steps
1. Install a AA dry battery
2. Turn on the measurement
3. Align the measurement port with the measured surface for measurement
Notice
• Different batches of shell Color is different, shell Color is randomly sent
• Powered by a AA dry battery
• Measurement port size is 14 * 28mm
• The instrument has an automatic shutdown function to save power
