Overview

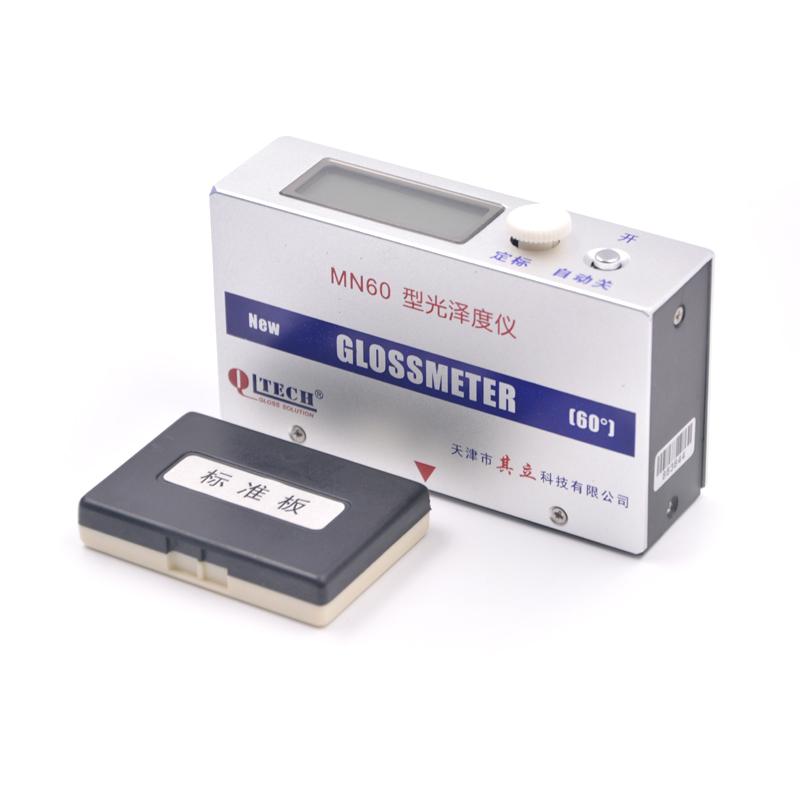

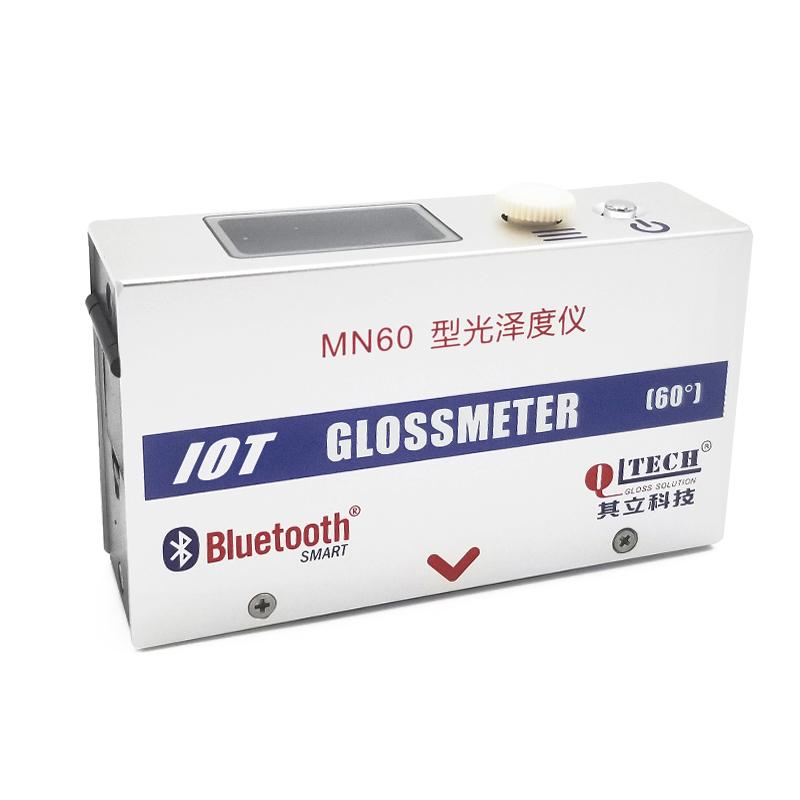

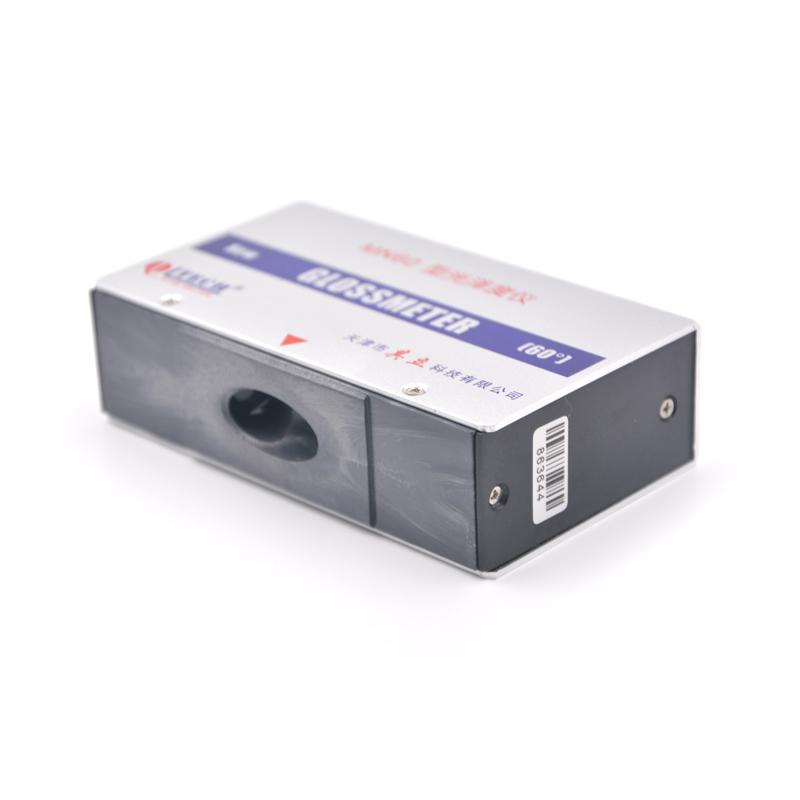

QILI MN60 glossmeter is a general-purpose gloss measurement instrument, designed and produced in accordance with international standards ISO2813, foreign standards ASTMD523, DIN67530 and national standards GB9754, GB9966, GB/T13891, all technical indicators meet and exceed JJG696-2002 "Mirror-oriented Glossiness Meter and Glossiness Board" first-class working machine requirements.
Features
1. Small size, light weight, easy to carry
2. Power-saving design, a No. 5 dry battery can be used continuously for nearly 60 hours, and the measurement of nearly 10,000 data
3. Stability, measurement can be started
4. Using quartz crystal standard version, the annual change rate is extremely low
5. Equipped with LED Long Life Illuminant
6. Equipped with automatic shutdown function to save power and prevent battery flow failure
Principle
The glossmeter through 60 ° Measurement Angles, using LED Illuminant irradiation of the sample surface, measurement of reflected light intensity, Glossiness unit (GU) represents the degree of Gloss of the sample surface, Measurement range of 0~ 199.9GU.
Applications
Automobile, Home Appliances, Musical Instruments, Furniture, Construction, Decoration, Printing, Encasement and other industries
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB9966、GB/T13891
Steps
1. Install a AA dry battery
2. Turn on the measurement
3. Align the Instrument Measuring Area to the Surface of the Sample
4. Read measurement results
Notice
• Color of shell of different batches of products may be different, subject to actual delivery
• It is recommended to use high-quality AA dry batteries
• Ensure that the light spot completely covers the surface of the sample to be tested during measurement
• Regularly Check Instrument Stability
