Overview

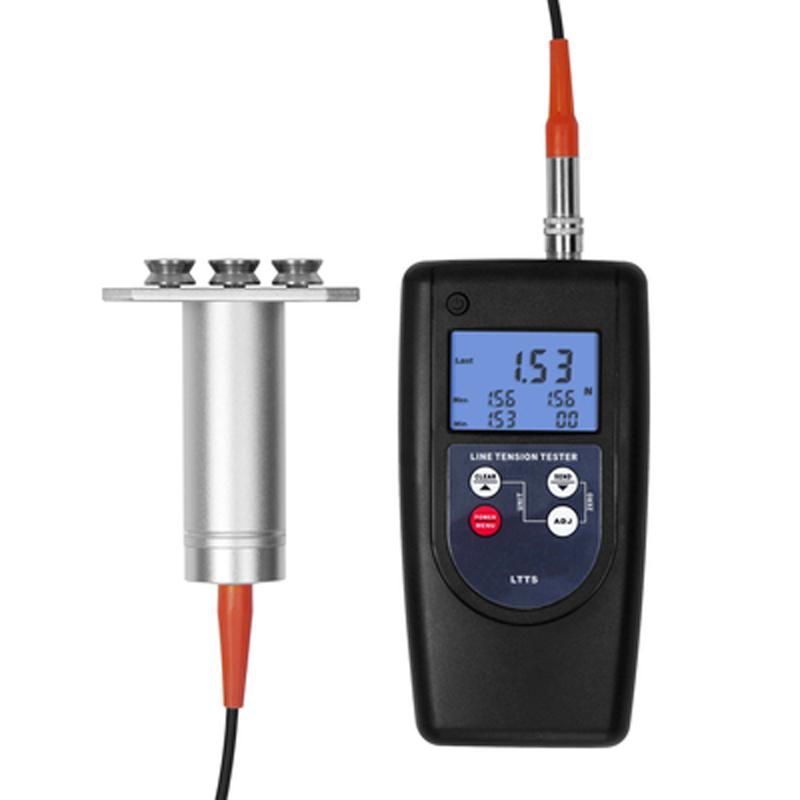

The LANDTEK LTTS-1K Digital Wire Tensiometer is a Handheld device for accurate measurement of the tension of various process materials, including yarns, fibers, wires, and fibers, in motion or at rest.
Features
1. Adopt the "Three-Wheel Tension Measurement principle".
2. High Accuracy and high resolution, digital display ignores poor.
3. Powered by 4 AAA batteries.
4. Provide N (newton), kg (kilogram), lb (pound), g (gram) four measurement units to choose from and convert to each other.
5. Displays the current value, MAX Maximum, Peak and MIN Minimum for the measurement period.
6. It can be set to shut down automatically or manually for 10 minutes without operation.
62 measurements are made per second and the average of the measurements is displayed according to the time interval selected by the user.
8. Optional USB data cable output and Bluetooth data output to communicate with PC.
Principle
The product uses the "three-wheel tension Measurement principle" for tension measurement.
Applications
Yarn, fiber, wire, fiber
Steps
1. Install 4 AAA batteries for power supply.
2. Select the N, kg, lb, or g measurement unit.
3. Set the automatic shutdown time or manual operation.
Starting the measurement, the device takes 62 measurements per second and displays the average.
5. Optional connection USB data cable or Bluetooth to communicate with PC.
Notice
* Measurement range: 0~ 1.0kgf/0~ 1000gf/0~ 9.8N/0~ 2.2Lbf.
* Load Graduation: 0.001kgf, 1gf, 0.001N, 0.001N.
* Precision ： +/- 1.5%.
