Overview

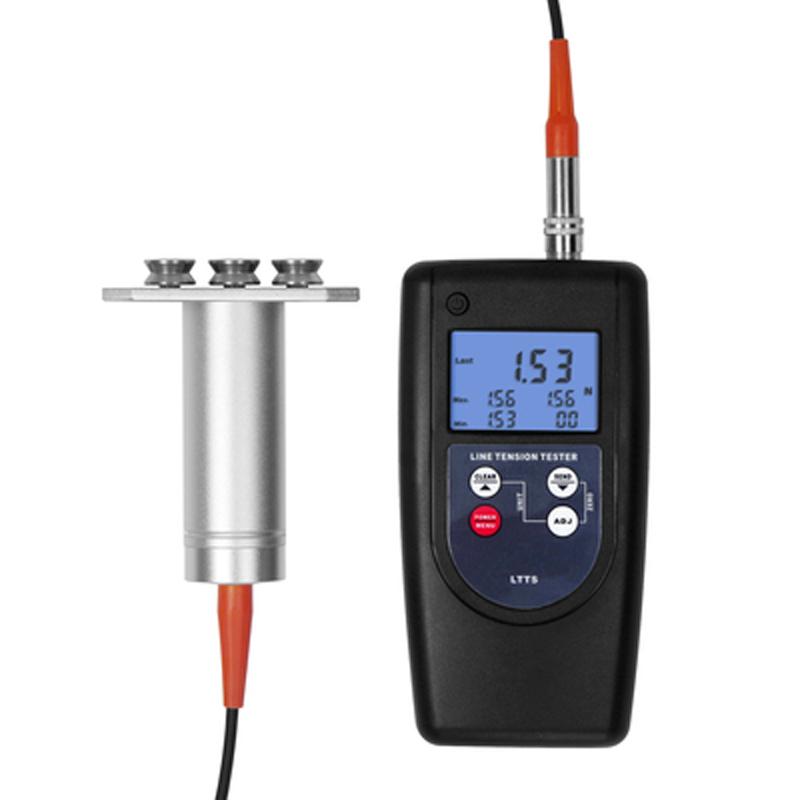

The LANDTEK LTTS-2K Digital Wire Tensiometer is a Handheld device for accurate measurement of the tension of various process materials, including yarns, fibers, wires, and fibers, in motion or at rest.
Features
1. Adopt the "Three-Wheel Tension Measurement principle".
2. High Accuracy and high resolution, digital display ignores poor.
3. Powered by 4 AAA batteries.
4. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available and converted to each other.
5. Displays the current value, MAX Maximum, Peak and MIN Minimum for the measurement period.
6. It can be set to shut down automatically without operation for 10 minutes, or it can be shut down manually.
62 measurements are made per second and the average of the measurements is displayed according to the time interval selected by the user.
8. Optional USB data cable output and Bluetooth data output to communicate with PC.
Principle
The product uses the "three-wheel tension Measurement principle" for tension measurement.
Applications
Yarn, fiber, wire, fiber
Steps
1. Install 4 AAA batteries for power supply.
2. Select the N, kg, lb, or g measurement unit.
3. For tension measurement, the device makes 62 measurements per second.
4. View the current value, MAX Maximum, Peak, and MIN Minimum displayed.
5. Optional to use USB data cable or Bluetooth to communicate with PC.
6. It can be set to shut down automatically or manually for 10 minutes without operation.
Notice
* Precision is +/- 1.5%.
* Measurement range is 0~ 2.0kgf/0~ 2000gf/0~ 19.6N/0~ 4.4Lbf.
* Graduation load is 0.001kgf, 1gf, 0.001N, 0.01N.
