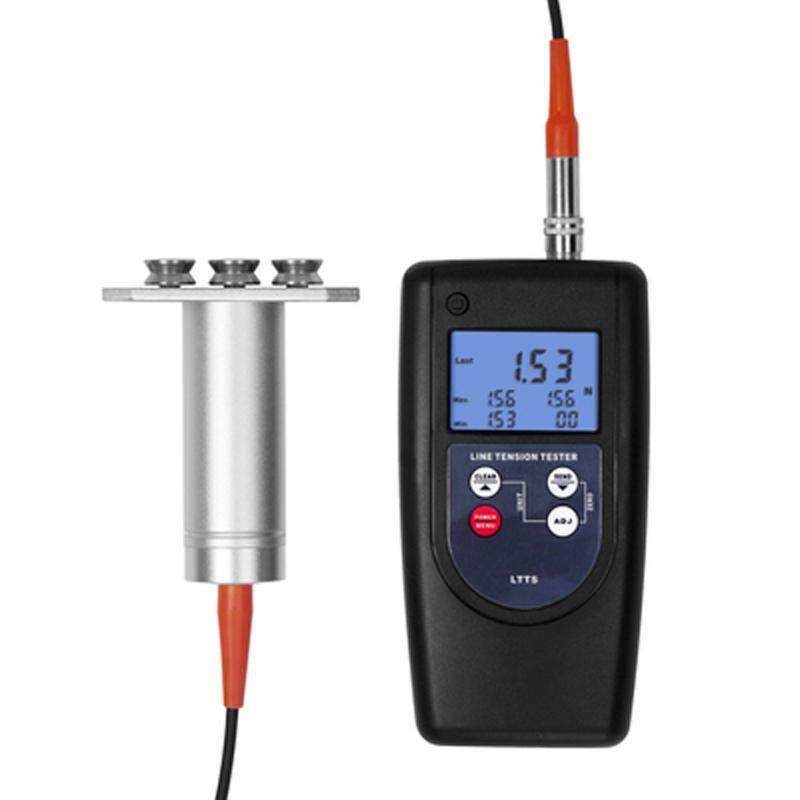

LANDTEK LTTS-50K digital wire tension Meter, three-wheel tension Measurement principle High Accuracy Handheld

Name: LANDTEK LTTS-50K digital wire tension Meter, three-wheel tension Measurement principle High Accuracy Handheld
Brand: LANDTEK
SKU: NB020756
Price: 441.0 USD
Availability: InStock

$ 441.00Ex works

Measurement principle using three rounds of tension, Measurement range 0~ 50kgf, accuracy +/- 1.5%, 62 measurements per second, support USB and Bluetooth data output.

Model

LTTS-50K

Get Quote

Category : Tensiometer

Brand : LANDTEK

SKU : NB020756

Service :The delivery and service By NBCLab.Com

Overview

The LANDTEK LTTS-50K Digital Wire Tensiometer is a Handheld device for accurate measurement of the tension of various process materials, including yarns, fibers, wires, and fibers, in motion or at rest.

Features

1. Adopt "Three-wheel Tension Measurement principle" 2. High Accuracy and high resolution, digital display ignoring poor 3. Powered by 4 AAA batteries 4. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other 5. Display the current value, MAX Maximum, Peak and MIN Minimum during the measurement period 6. It can be set to shut down automatically without operation for 10 minutes, or it can be shut down manually. 62 measurements per second and displays the average of the measurements according to the time interval selected by the user 8. Optional USB data cable output and Bluetooth data output, communicate with PC

Principle

Adopt "Three-wheel Tension Measurement principle" for tension measurement.

Applications

Yarn, fiber, wire, fiber

Measurement Range
0~50.0kgf、0~490N、0~110Lbf
resolution
0.01kgf、0.1N、0.1Lbf
Precision
+/- 1.5% or better
