TQC sheen VF1589 Film Applicator Bird type Film Applicator Stainless steel material Acid and alkali resistance

Name: TQC sheen VF1589 Film Applicator Bird type Film Applicator Stainless steel material Acid and alkali resistance
Brand: TQC sheen
SKU: NB020781
Price: 1389.0 USD
Availability: InStock

$ 1389.00Ex works

Using stainless steel material to ensure acid and alkaline resistance, wet film thickness 100μm accuracy of +/- 2μm, suitable for a variety of pRoduct coating and in line with industry standards.

Model

VF1589

Get Quote

Category : Film Applicator

Brand : TQC sheen

SKU : NB020781

Service :The delivery and service By NBCLab.Com

Overview

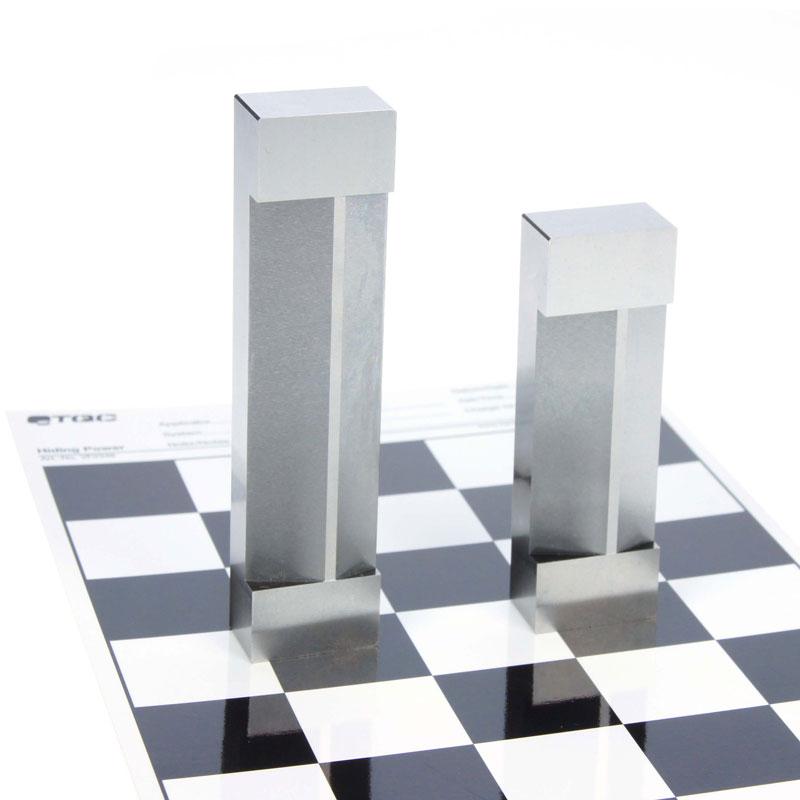

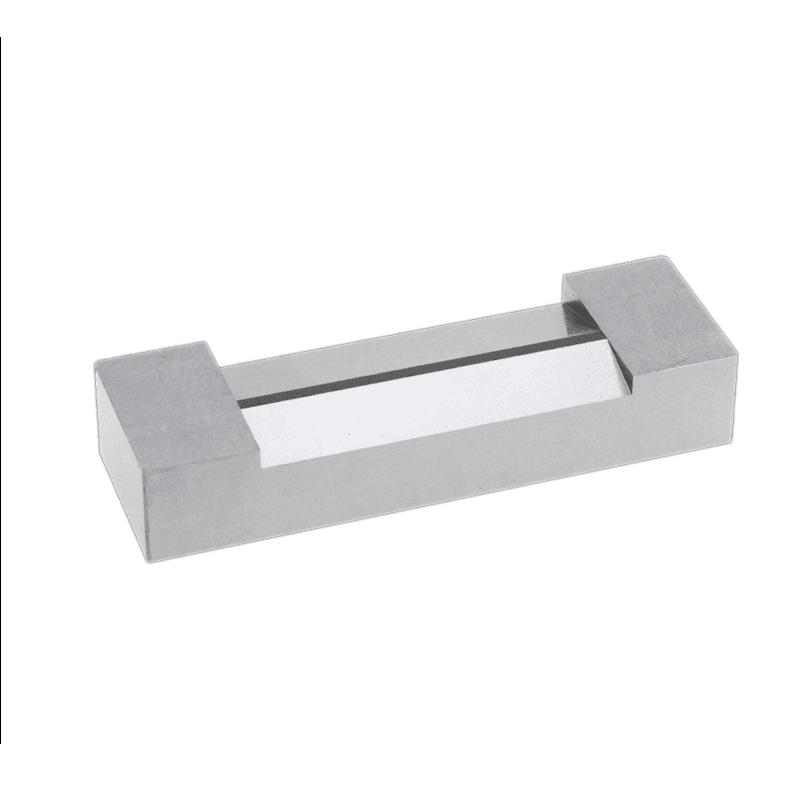

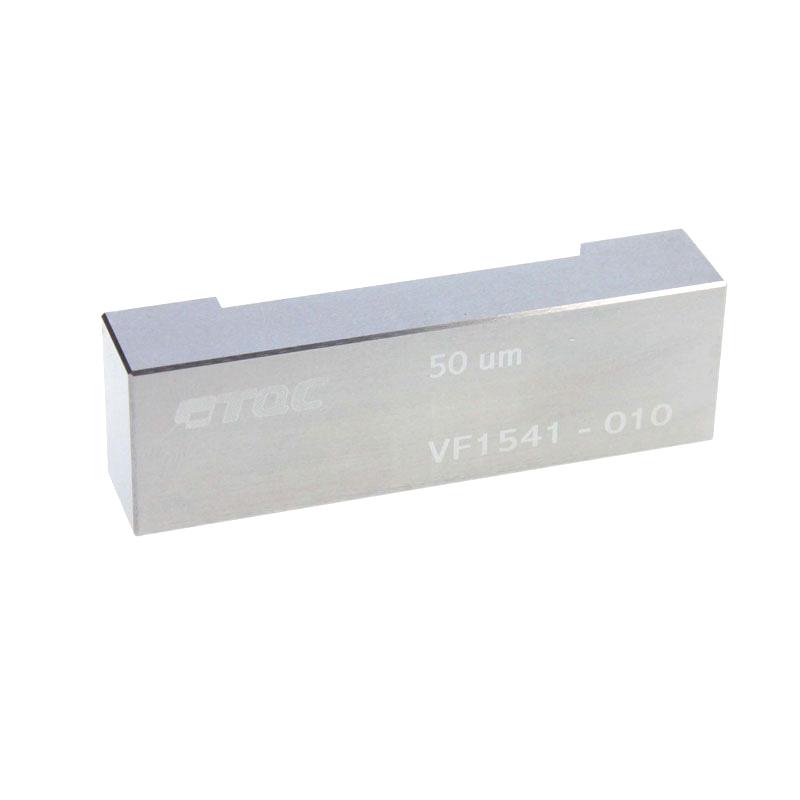

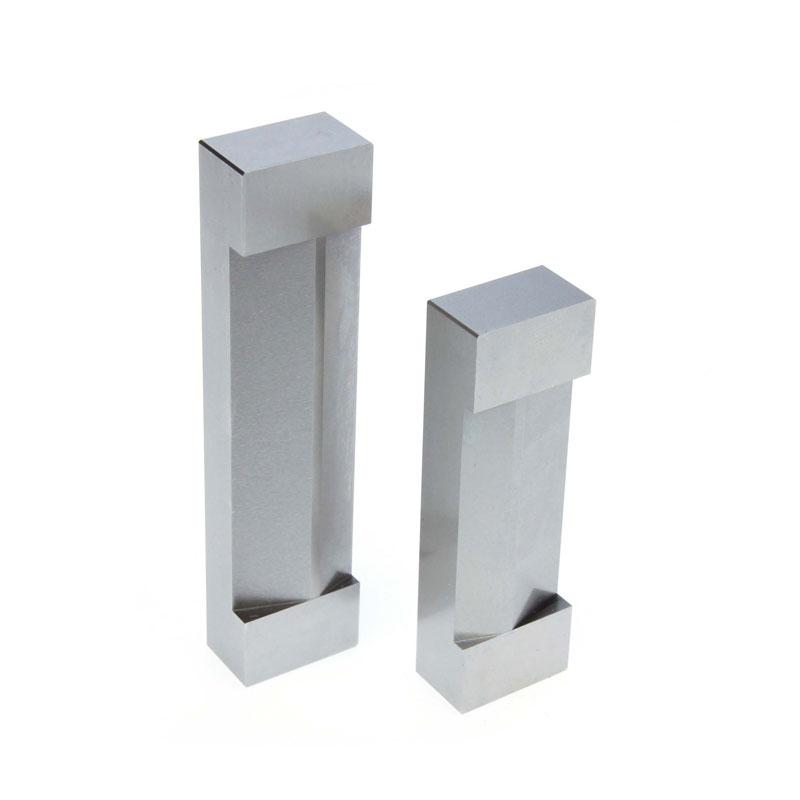

The TQC Sheen VF1589 Film Applicator is a bird type film applicator with a flat edge and the other side for coating a film of a specific thickness. With an application width of 90mm, it is suitable for applying a large number of different products on flat and relatively strong substrates, made of stainless steel for good acid and alkaline resistance.

Features

1. Bird design, with flat edges and specific coated edges; 2. Application width is 90mm; 3. Suitable for flat and strong substrates; 4. Stainless steel material, good acid and alkaline resistance; 5. Wet film thickness 100μm, accuracy +/- 2μm; 6. Material is DAIDO 440C, surface polishing.

Principle

The Film Applicator uses a bird-shaped design to evenly apply a specific thickness of wet-film on the substrate using flat edges and coating edges to achieve accurate Spreader.

Standards

ASTM D3258、ASTM D3265、ASTM D333、ASTM D823、ASTM D2486

Steps

1. Prepare a flat and strong substrate; 2. Select the VF1589 model coating applicator; 3. Place the coating applicator on the substrate; 4. Apply the product evenly to form a 100μm wet-film; 5. Check the film uniformity and thickness.

Notice

• Only suitable for flat and relatively strong substrates; • Make sure the coating applicator surface is clean when using; • Avoid using on non-specified substrates; • Note that the accuracy is +/- 2μm, which needs to be calibrated regularly; • Avoid collisions when storing to maintain accuracy.

Type
single-sided
wet film thickness
100μm
accuracy
+/- 2μm (better than 3μm)
material
DAIDO 440C martensitic stainless steel tool steel. Sub Zero vacuum hardening (-70℃~ 1756 ℃), Hardness HRC 55 (through hardening) and tempering
Size
120*25*15mm
surface preparation
polishing
