TQC sheen VF1587 Film Applicator Bird type coating Applicator Stainless steel material Acid and alkali resistance

Name: TQC sheen VF1587 Film Applicator Bird type coating Applicator Stainless steel material Acid and alkali resistance
Brand: TQC sheen
SKU: NB020784
Price: 1389.0 USD
Availability: InStock

$ 1389.00Ex works

Using stainless steel material acid and alkali, wet film thickness 50μm accuracy +/- 2μm, suitable for flat and solid substrate coating different pRoducts, surface polishing.

Model

VF1587

Get Quote

Category : Film Applicator

Brand : TQC sheen

SKU : NB020784

Service :The delivery and service By NBCLab.Com

Overview

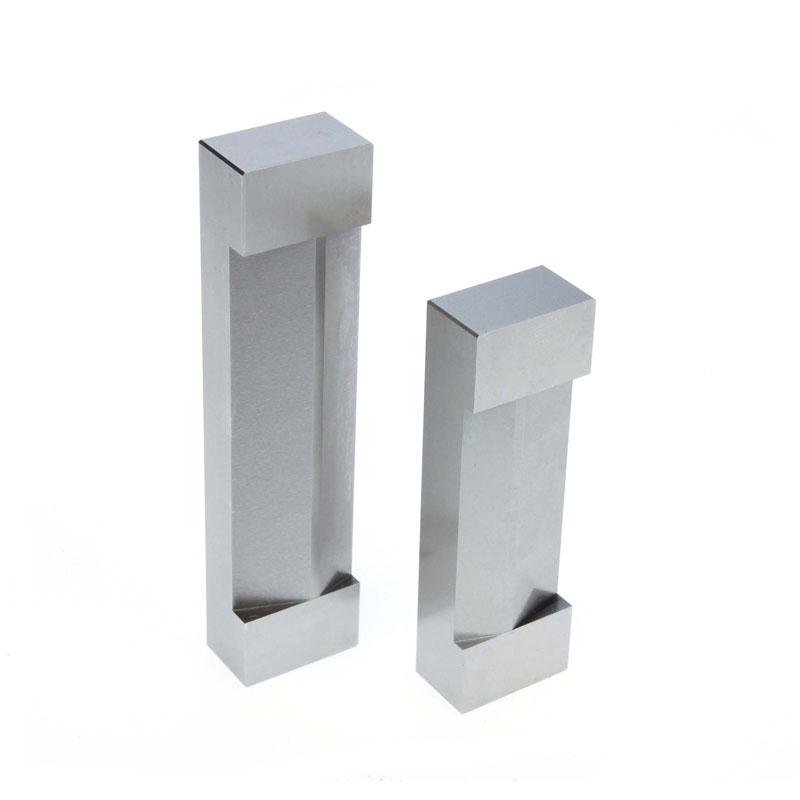

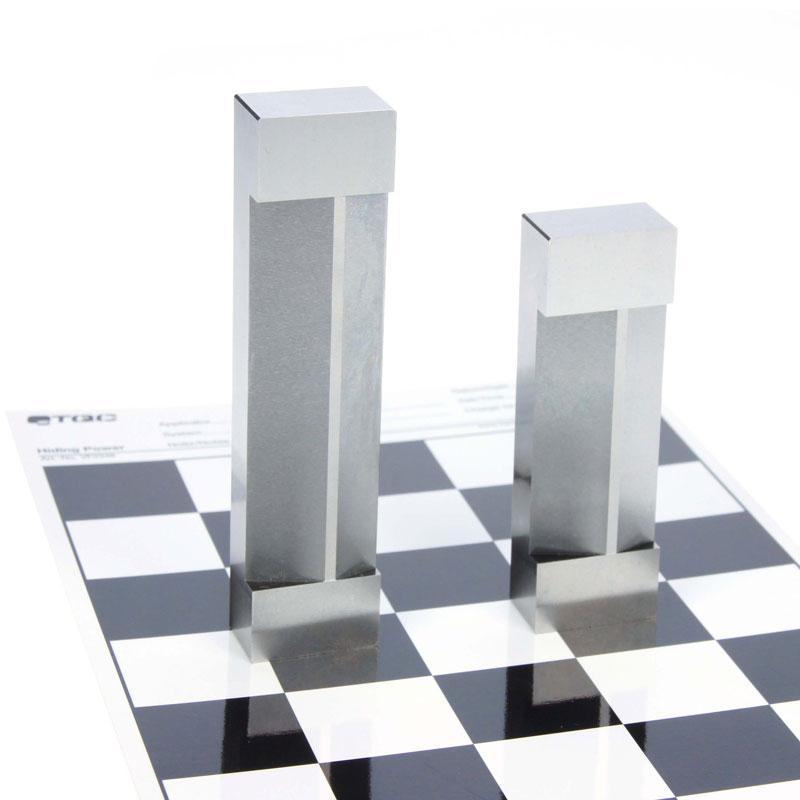

The TQC Sheen VF1587 Film Applicator is a bird type film applicator with a flat edge and the other side for coating a film layer of a specific thickness. The coating applicator is made of stainless steel and has good acid and alkaline resistance, making it suitable for applying a large number of different products on flat and relatively strong substrates.

Features

1. Bird-shaped design with flat edges for easy coating of specific thickness films 2. Optional application width 50mm, 75mm or 90mm 3. Stainless steel material, good acid and alkaline resistance 4. Suitable for flat and strong substrates 5. accuracy up to +/- 2μm 6. Surface polishing

Principle

Spreader the coating uniformly into a wet-film of a specific thickness by moving the coating applicator over the substrate surface with its specially designed flat edge. Its precise construction ensures film thickness conformity.

Standards

ASTM D3258、ASTM D3265、ASTM D333、ASTM D823、ASTM D2486

Notice

• Only suitable for flat and relatively strong substrates • Check the surface condition of the coating applicator before use • Keep the coating applicator clean to avoid contamination • Make sure the surface of the substrate is flat when using

Type
single-sided
wet film thickness
50μm
accuracy
+/- 2μm (better than 3μm)
material
DAIDO 440C martensitic stainless steel tool steel. Sub Zero vacuum hardening (-70℃~ 1756 ℃), Hardness HRC 55 (through hardening) and tempering
Size
120*25*15mm
surface preparation
polishing
