Overview

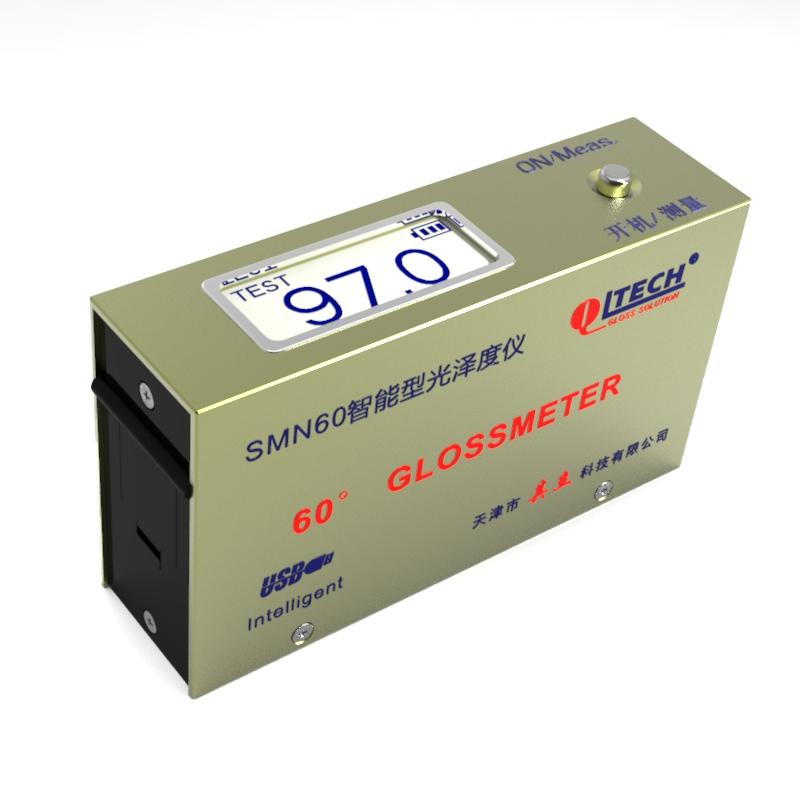

SMN60-C full smart curved glossmeter is a Portable gloss measurement device of QILI brand. The product is designed and produced in accordance with international standards ISO2813, foreign standards ASTMD523, DIN67530 and national standards GB9754, GB9966, GB/T13891. The technical indicators meet and exceed the requirements of the first-level working machine in the JJG696-2002 "Mirror Glossiness Meter and Glossiness Board" identification regulations. It is cost-effective and a good substitute for imported models.
Features
1. Small size, light weight, true intelligent portable model
2. Calibration and measurement are completed with one click, which is convenient and fast
3. Accurate Surface Measurement mode, a good solution for the measurement of curved objects
4. Data statistical measurement, automatic calculation of average and deviation values
5. True USB data communication interface
6. Super power saving design, automatic shutdown in two minutes for the last operation, a AA battery can measure 100,000 sets of data
Principle
The glossmeter uses Optical inspection Measurement principle to detect the reflected light on the surface of the object through 60 ° Measurement Angles, converts the reflected light intensity into Glossiness value (GU), and realizes accurate measurement of Glossiness on the surface of various materials.
Applications
Paintings, Wood, Auto Parts, Plastics, Daily Necessities, Ceramics, Pipes and Cylinders, Eletroplating, Matte Glass Bottles
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB9966、GB/T13891、JJG696-2002
Steps
1. Boot preparation
2. Perform calibration operations
3. Select Measurement mode
4. Align the measurement port to the surface of the measured object
5. Press the measurement button to complete the measurement
6. View measurement results and statistics
Notice
• Ensure equipment is properly calibrated before use
• Keep the measurement port in close contact with the measured surface during measurement
• Avoid measurement in a strong light environment
• Regularly check the battery power and replace it in time
• Keep the measurement port clean to avoid contamination affecting Measurement accuracy
• Please remove the battery when not in use for a long time
