Overview

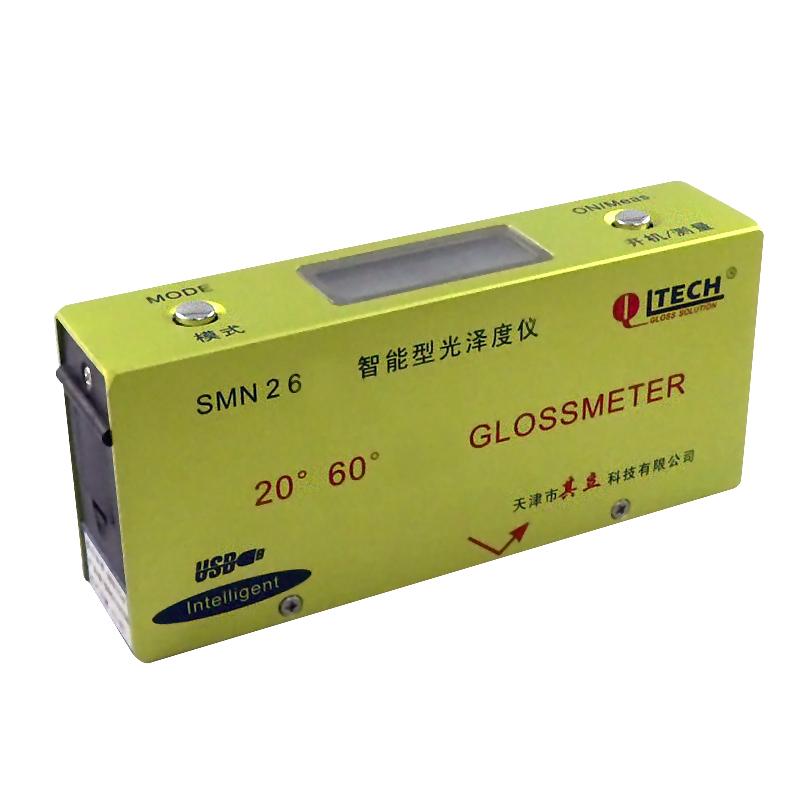

SMN26-H fog shadow glossmeter is a fully intelligent Portable gloss measurement instrument. It is designed and produced with fog shadow standard ASTM D4093 and Glossiness standard ISO2813, ASTM D523, DIN67530 and Chinese standard GB9754, GB9966, GB/T13891. The technical indicators meet and exceed the requirements of JJG696-2002 first-class working machine. The instrument is mainly used for the measurement of Glossiness and fog shadow value on high Gloss surfaces. It automatically calculates fog shadow value through 60 ° and 20 ° dual angle measurement. It is suitable for high Gloss paints, Coatings and metal and platings surfaces in automobiles, home appliances, musical instruments, furniture and other industries.
Features
1. Small size, light weight, true fully intelligent portable model
2. Double angle calibration, one-click measurement, convenient and fast
3. Two key operation, one key measurement, one key conversion
4. Data statistical measurement, automatic calculation of average and deviation values
5. True USB data communication interface
6. Super power saving design, automatic shutdown function, one AA battery can measure 100,000 sets of data
7. Automatically calculate the fog shadow value
Principle
The SMN26-H glossmeter is designed according to the American standard ASTM D4039. By measuring the Glossiness value of 60 ° and 20 ° angles, the fog shadow value is defined by the difference between the two, that is, the fog shadow value = 60 ° Gloss -20 ° Gloss. The instrument adopts the dual-angle Measurement principle, which can distinguish the milky Appearance (fog shadow) caused by the surface microstructure, and the full intelligence system automatically completes the measurement and calculation.
Applications
High Gloss Surfaces for Automobiles, Home Appliances, Musical Instruments, Furniture, Metals, Platings
Standards
ISO2813、ASTM D523、DIN67530、GB9754、GB9966、GB/T13891、JJG696-2002
Steps
1. Power on and prepare the instrument
2. Select Measurement Angles (20 °/60 °)
3. Align the measurement port with the measured surface
4. Press the measurement button for one-click measurement
5. The instrument automatically calculates and displays Glossiness and Fog Shadow values
6. The display data can be switched through the conversion key
7. Use the USB interface for data transfer
Notice
• Ensure the measurement surface is clean and drying
• Keep the instrument in vertical contact with the measured surface during measurement
• Avoid measurement in a strong light environment
• Regularly calibrate instruments to ensure Measurement accuracy
• Use the appropriate battery type (AA dry battery or rechargeable battery)
• Pay attention to the automatic shutdown function and save the data in time
