Overview

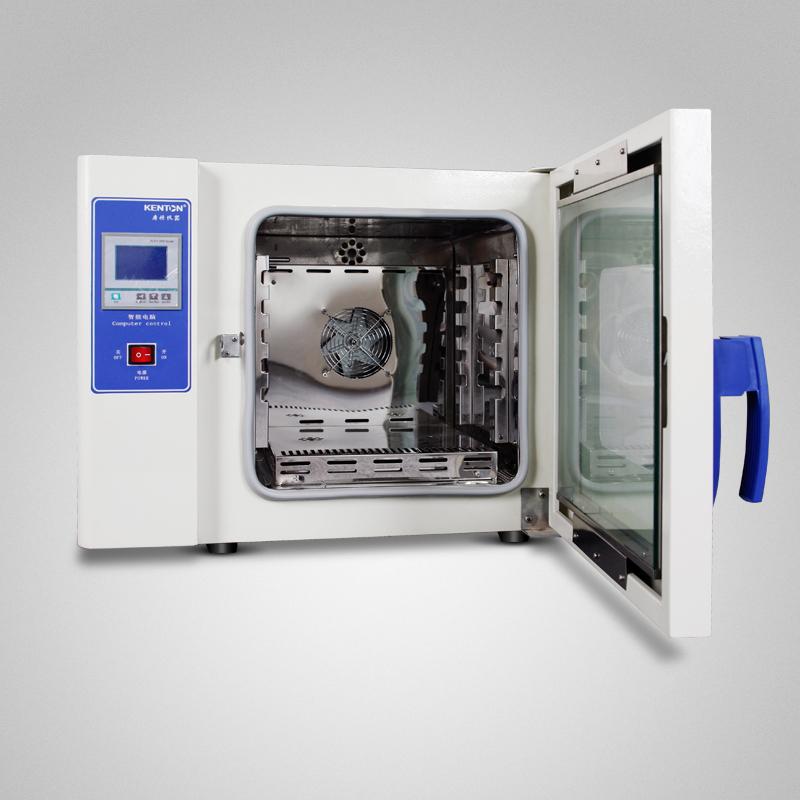

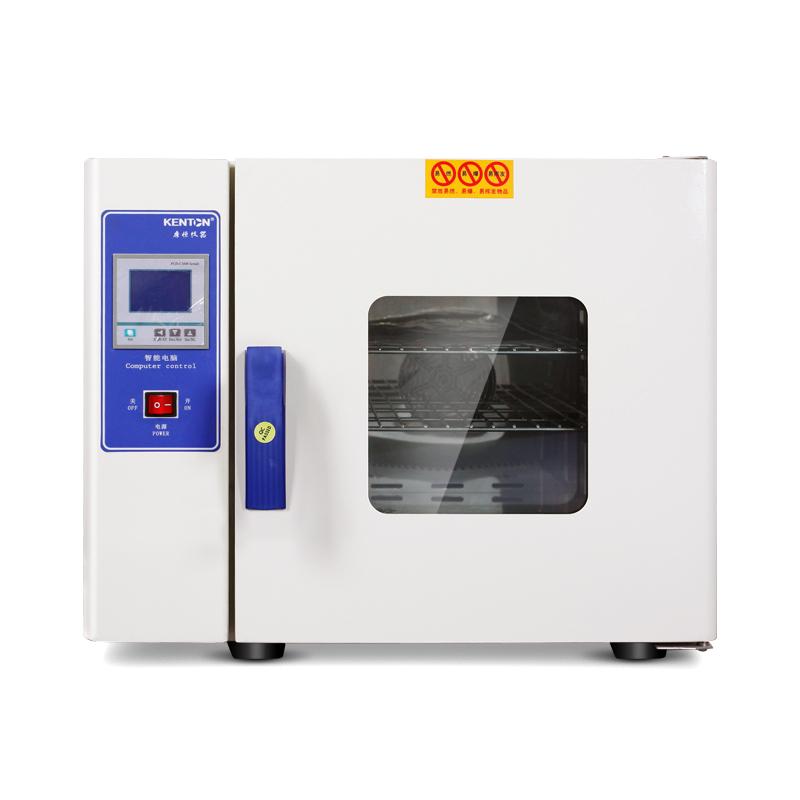

The Kenton DHG-9230 Precision LCD Thermostatic Drying Oven is a microcomputer intelligent PID control technology laboratory equipment with temperature control, timing and over-temperature alarm functions. It is suitable for applications with high temperature uniformity requirements. The mirrored stainless steel liner and good air duct design ensure uniform temperature in the working cavity, making it an ideal choice for modern intermediate and advanced laboratories.
Features

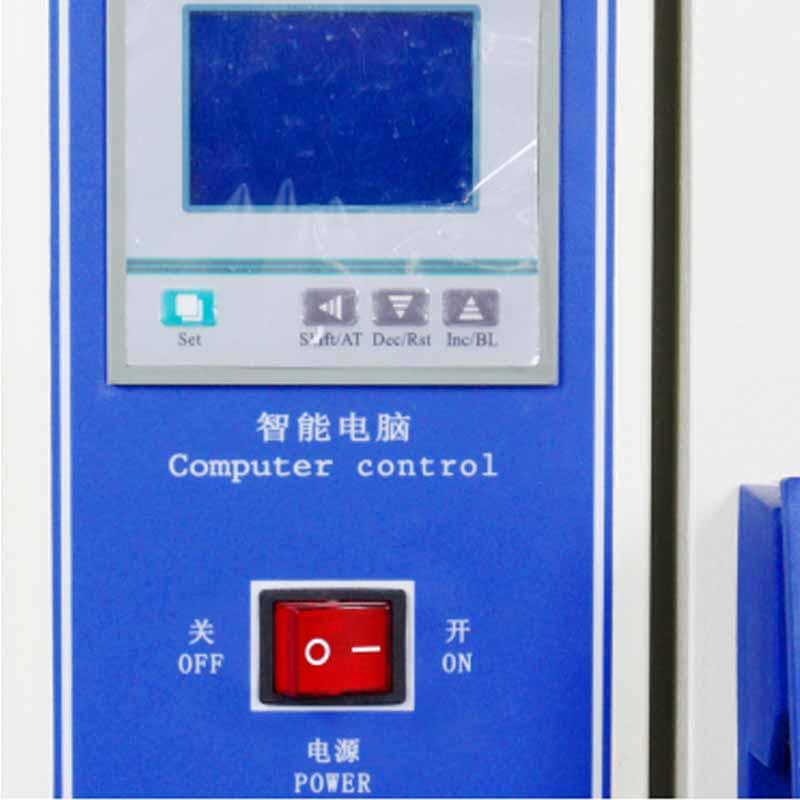

1. Adopt precision LCD microcomputer intelligent PID control technology, optional digital display, the system has temperature control, timing, over-temperature alarm function, with RS485 microcomputer interface (digital display does not have this interface);
2. Standard brand with cooling fan, maintenance-free, high durability, combined with good air duct design to ensure uniform temperature in the working cavity;

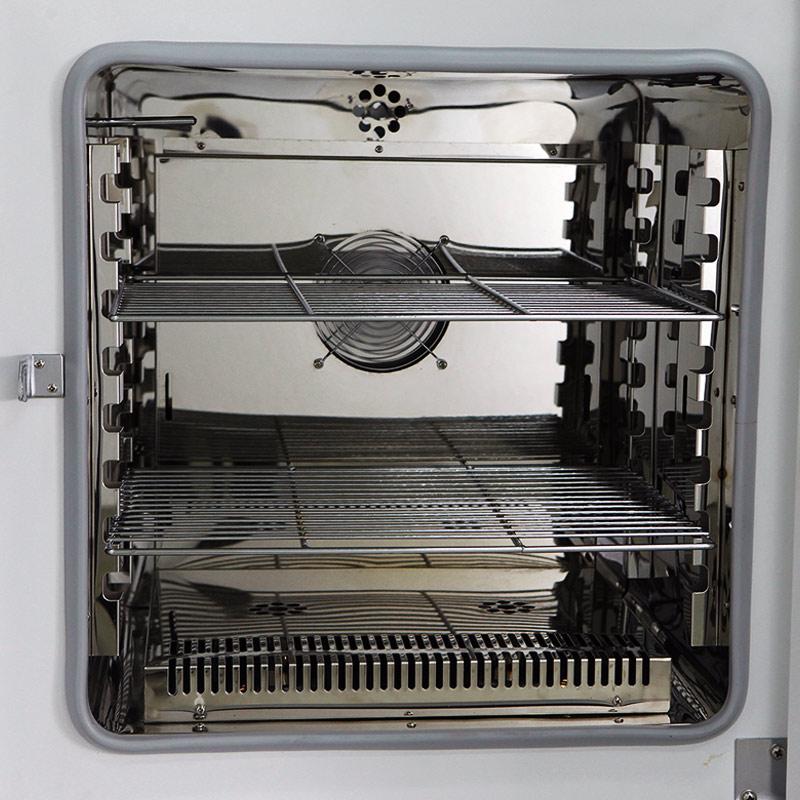

3. Mirror stainless steel liner, with anti-acid and alkali, anti-corrosion and other characteristics;
4. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The drying oven precisely adjusts the temperature through microcomputer intelligent PID control technology, uses a high-temperature heating tube as a heating element to generate heat, and combines good air duct design and cooling fan to ensure uniform temperature distribution in the working cavity. The system can set Temperature range, timing time, and has over-temperature alarm function to realize thermostatic drying, sterilizing and other processes.
Applications
Drying process, sterilizing, thermostatic storage, heat treatment
Notice
Modern intermediate and advanced laboratories are recommended for users with high Temperature uniformity.
- For more expensive samples, it is recommended to install an independent temperature limiting controller.
- Widely used in drying process, sterilizing, thermostatic storage, heat treatment and other fields, it is the basic supporting equipment of laboratories and R & D institutions, but it is not suitable for volatile, flammable, explosive and other items to avoid explosion.
- Warning! Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box.
For the heating of high-value materials, it is better to install an independent temperature limiter, set the maximum temperature limit, and double insurance to ensure that the materials will not be damaged due to the failure of the electronic components of the box.
