Overview

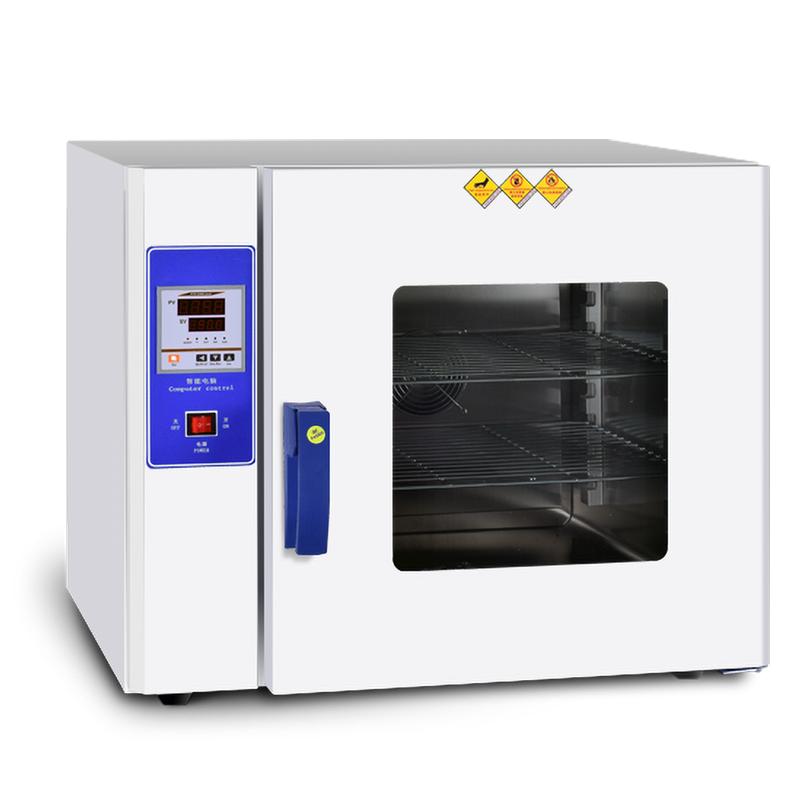

Kenton KH-45A digital display electric air blowing dryer is a drying equipment using microcomputer intelligent PID control technology, with temperature control, timing and over-temperature alarm functions. Suitable for routine experiments and tests, cost-effective, for drying, heat treatment and heating in various industries.
Features
1. Using microcomputer intelligent PID control technology, the system has temperature control, timing, over-temperature alarm functions;
2. The external hot air circulation system is composed of low-noise fans and air ducts, and the reasonable air duct and circulation system make the temperature in the working room stable;
3. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
4. The liner is divided into two types of mirror stainless steel and galvanized steel plate, and the semi-arc four corners are easy to clean;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The temperature is precisely adjusted by the microcomputer intelligent PID control technology, and the external hot air circulation system is composed of a low-noise fan and an air duct to achieve uniform distribution and stable control of the temperature in the working room. The heating element adopts a high-temperature heating tube to ensure efficient heating.
Applications
Industry, biology, agriculture, scientific research
Steps
1. Connect the device to the power supply and ensure that the voltage is 220V.
2. Adjust the spacing and number of shelves in the studio as needed;
3. Temperature range (RT + 5~ 250 ℃) and timing time (0~ 999 minutes);
4. Start equipment, monitor temperature fluctuations and Accuracy;
5. After use, turn off the power and clean the liner.
Notice
• Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box to avoid explosion;
• For heating high-value materials, it is recommended to install an independent temperature limiter, set the maximum temperature limit, and double insurance to ensure material safety;
• Not suitable for volatile, flammable, explosive and other items;
• It is recommended to use for routine experiments and tests, and independent temperature limiting controllers must be installed for more expensive samples.
