Overview

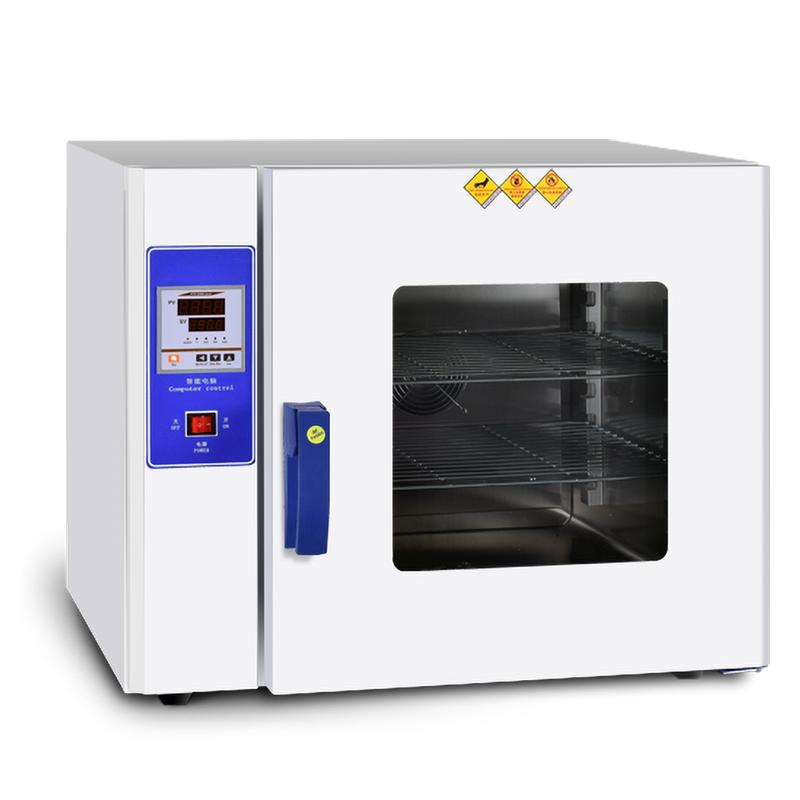

Kenton KH-30AS digital display electric air blowing dryer is a drying equipment using microcomputer intelligent PID control technology, with temperature control, timing and over-temperature alarm functions. It is suitable for routine experiments and tests, cost-effective, and is used in various industries for drying, heat treatment and heating.
Features
1. Using microcomputer intelligent PID control technology, the system has temperature control, timing, over-temperature alarm functions;
2. The external hot air circulation system is composed of low-noise fans and air ducts, and the reasonable air duct and circulation system make the temperature in the working room stable;
3. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
4. The liner is divided into two types of mirror stainless steel and galvanized steel plate, and the semi-arc four corners are easy to clean;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The drying oven precisely adjusts the temperature through microcomputer intelligent PID control technology, combines with the external hot air circulation system, consists of a low-noise fan and an air duct, to achieve stable control of the temperature in the working room. The high-temperature heating tube is used as a heating element to ensure uniform heating.
Applications
Drying, heat treatment, heating in various industries, biology, agriculture, scientific research and other departments
Steps
Connect the device to a 220V power supply.
2. Adjust the spacing and number of shelves in the studio as needed;
3. Set Temperature range (RT + 5~ 250 ℃) and Timer Range (0~ 999 minutes);
4. Start the device and monitor the sample through the observation window.
5. Turn off the power after use.
Notice
• Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box to avoid explosion;
• For the heating of high-value materials, it is recommended to install an independent temperature limiter, set the maximum temperature limit, and double insurance to ensure that the materials will not be damaged due to the failure of the electronic components of the box and the excessive heating;
• Not suitable for volatile, flammable, explosive and other items;
• For more expensive samples, it is recommended to install an independent temperature limiting controller.
