Overview

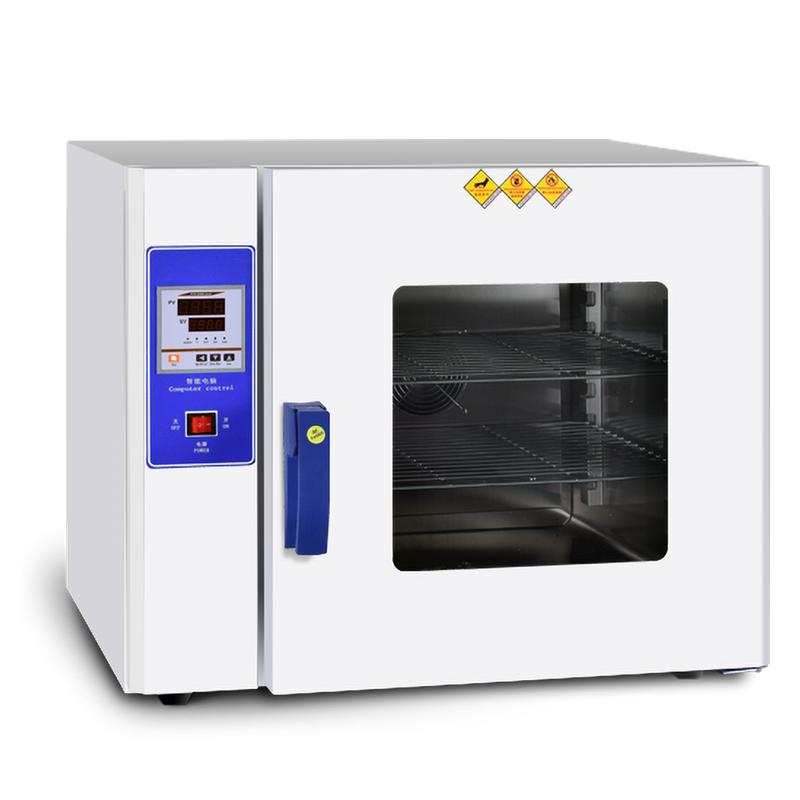

Kenton KH-35AS digital display electric air blowing dryer is a device using microcomputer intelligent PID control technology, suitable for routine experiments and tests, with high cost performance. The device provides drying, heat treatment and heating functions, but is not suitable for volatile, flammable and explosive materials.
Features
1. Using microcomputer intelligent PID control technology, the system has temperature control, timing, over-temperature alarm functions;
2. The external hot air circulation system is composed of low-noise fans and air ducts, and the reasonable air duct and circulation system make the temperature in the working room stable;
3. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
4. The liner is divided into two types of mirror stainless steel and galvanized steel plate, and the semi-arc four corners are easy to clean;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The equipment through the microcomputer intelligent PID control technology implementation of precise temperature control, combined with the external hot air circulation system, by the low noise fan and air duct composition, to ensure that the indoor temperature stability. High temperature heating tube as a heating element, with high temperature silicone sealing door edge, to achieve safe and efficient heating process.
Applications
Industry, biology, agriculture, scientific research
Steps
1. Connect the device to a power supply.
2. Set the required temperature and time parameters.
3. Start the equipment for heating.
4. Monitor the operating status to ensure that there are no abnormalities.
5. Turn off the equipment after finishing heating.
Notice
• Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box;
• For heating high-value materials, it is recommended to install an independent temperature limiter and set the maximum temperature limit;
• It is recommended to use for routine experiments and tests, and independent temperature limiting controllers must be installed for more expensive samples;
• Not suitable for volatile, flammable, explosive and other items to avoid explosion.
