Overview

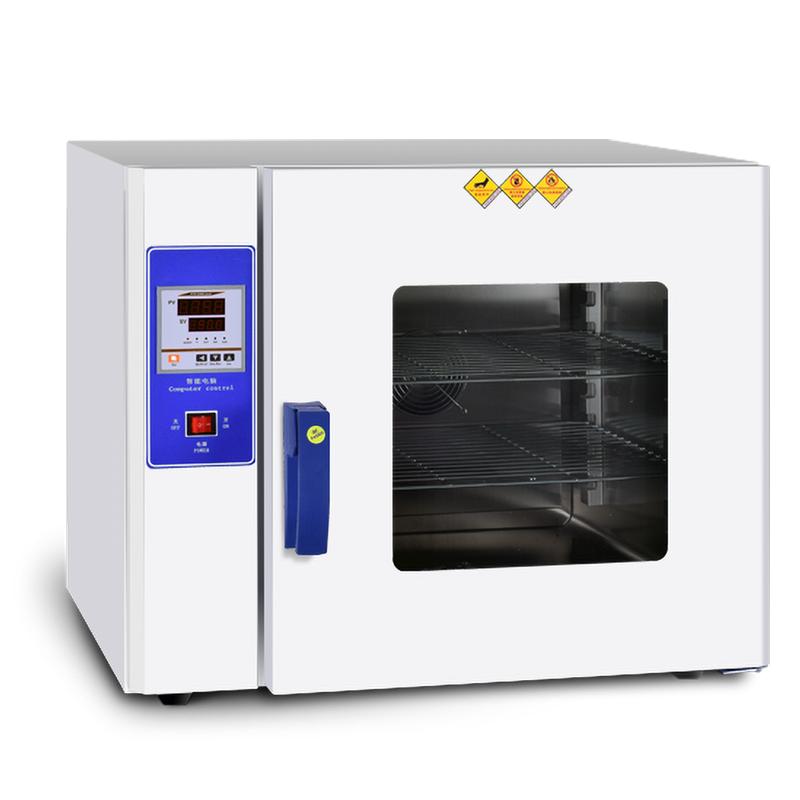

Kenton KH-55AS digital display electric air blowing dryer is a device with microcomputer intelligent PID control technology, suitable for routine experiments and tests, with temperature control, timing and over-temperature alarm functions. Its Inner chamber dimensions are 550 × 550 × 450mm, Temperature range is room temperature + 5~ 250 ℃, Temperature Accuracy +/- 0.5 ℃, Fluctuation +/- 1%, stainless steel liner and Cold rolled steel plate shell, beautiful design and easy operation.
Features
1. Using microcomputer intelligent PID control technology, the system has temperature control, timing, over-temperature alarm functions;
2. The external hot air circulation system is composed of low-noise fans and air ducts, and the reasonable air duct and circulation system make the temperature in the working room stable;
3. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
4. The liner is divided into two types of mirror stainless steel and galvanized steel plate, and the semi-arc four corners are easy to clean;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The drying oven precisely adjusts the temperature through microcomputer intelligent PID control technology, and uses the external hot air circulation system composed of low-noise fans and air ducts to achieve uniform temperature distribution and stable control in the working room. The high-temperature heating tube is used as a heating element, combined with the high-temperature silicone sealing door edge to ensure efficient heat transfer and sealing.
Applications
Industry, biology, agriculture, scientific research
Steps
Connect the device to a 220V power supply.
2. Adjust the spacing and number of shelves in the studio as needed;
3. Temperature range is room temperature + 5~ 250 ℃;
4. Set the Timer Range to 0~ 999 minutes;
5. Start equipment, monitor temperature fluctuations and Accuracy;
6. Turn off the power and clean the studio after use.
Notice
• Routine experiments and tests are recommended for use, with high cost performance.
• For more expensive samples, it is recommended to install an independent temperature limiting controller;
• Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box;
• For high-value materials to be heated, it is better to install an independent temperature limiter, set the maximum temperature limit, and double insurance to ensure that the material will not be damaged due to the failure of the electronic components of the box and the overheating;
• Not suitable for volatile, flammable, explosive and other items to avoid explosion.
