Overview

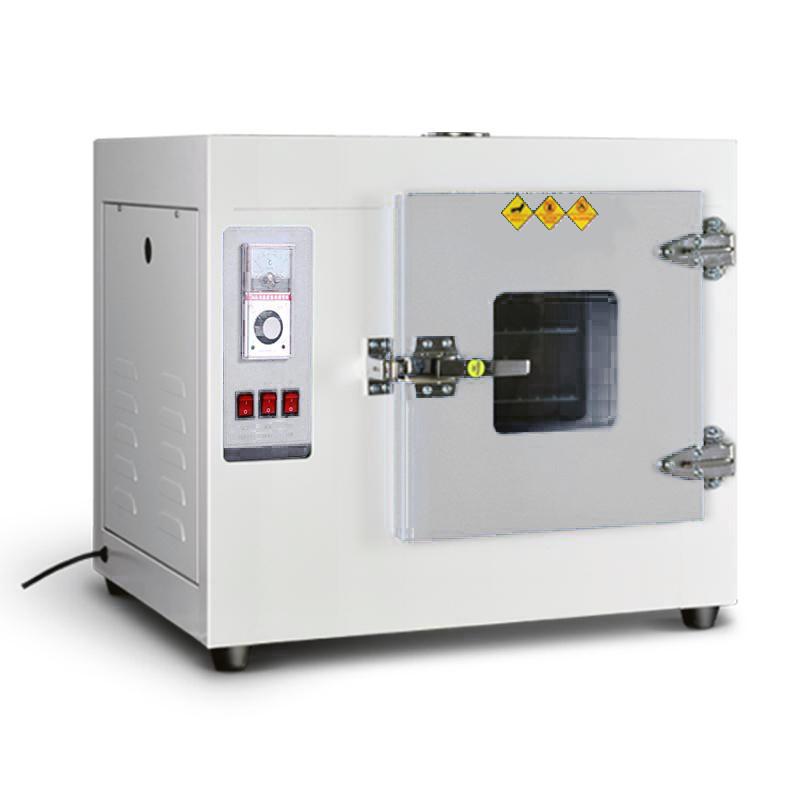

Kenton 101-1 Dial electric air blowing dryer is a drying equipment for industrial and mining enterprises, laboratories and R & D institutions. It uses Dial thermostat, Temperature range is RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Fluctuation +/- 1%. Inner chamber dimensions are 450 × 450 × 350mm, liner is made of galvanized steel, and the shell is sprayed with metallic paint, which is beautiful and elegant.
Features
1. The thermostat can be selected from Dial or microcomputer smart PID digital display two types
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be selected from mirror stainless steel or galvanized steel plate
5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven is heated by an electric heating element, and a hot air circulation system composed of a low-noise fan and air duct makes the temperature inside the studio evenly distributed, realizing the functions of drying, baking and heat treatment. The Dial thermostat is used to set and monitor the temperature to ensure that the temperature is controlled within the set range.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops Routine testing
Steps
1. Turn on the power supply and set the required temperature
2. Place the sample on the shelf in the studio, adjust the shelf height and quantity to suit the sample specifications
3. Close the box door and monitor the contents of the box through the observation window
4. Start the equipment for drying, baking or heat treatment
5. Turn off the power after use and take out the sample.
Notice
• It is not recommended to use it uninterrupted for a long time
• Temperature uniformity requirements and high water content samples are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
