Overview
Kenton 101-2A digital display electric air blowing dryer is a drying equipment with microcomputer intelligent PID digital display thermostat, suitable for drying, baking, heat treatment and other operations in industrial and mining enterprises, laboratories and R & D institutions. Its Inner chamber dimensions are 550 × 550 × 450mm, Temperature range is RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Fluctuation +/- 1%.
Features
1. The thermostat can be selected from Dial or microcomputer smart PID digital display two types
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be made of mirror stainless steel or galvanized steel

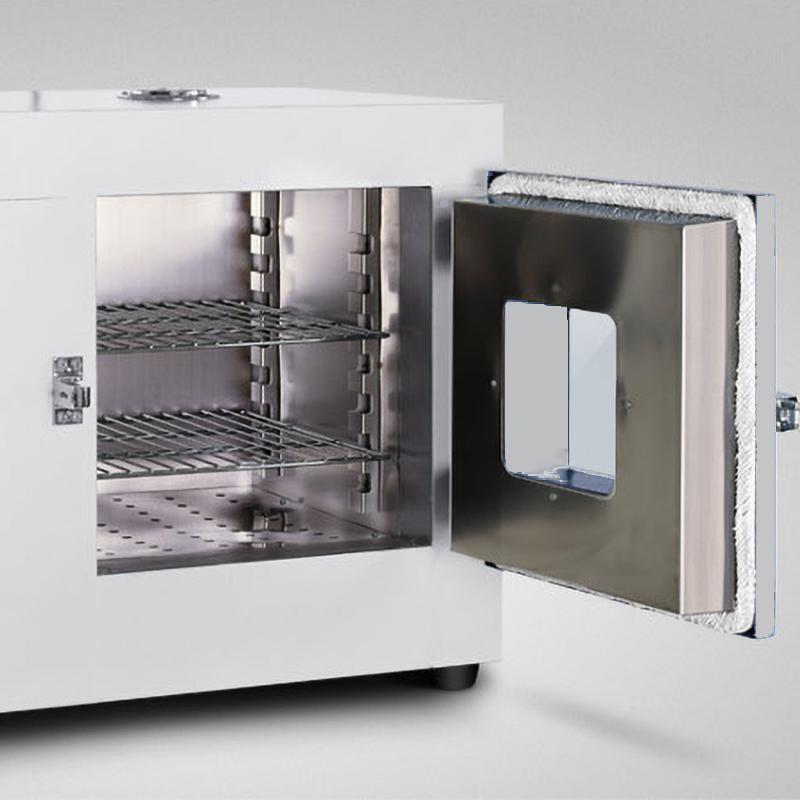

5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven generates heat through an electric heating system, and the hot air circulation system composed of a low-noise fan and an air duct makes the temperature inside the studio evenly distributed. The microcomputer intelligent PID thermostat precisely controls the temperature to achieve a stable heating environment.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Turn on the power supply and set the required temperature
2. Adjust shelf height and quantity as needed
3. Monitor the status of the items in the box through the observation window
4. Turn off the power after use
Notice
• It is not recommended to use it uninterrupted for a long time
• Temperature uniformity requirements and high water content samples are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
