Overview

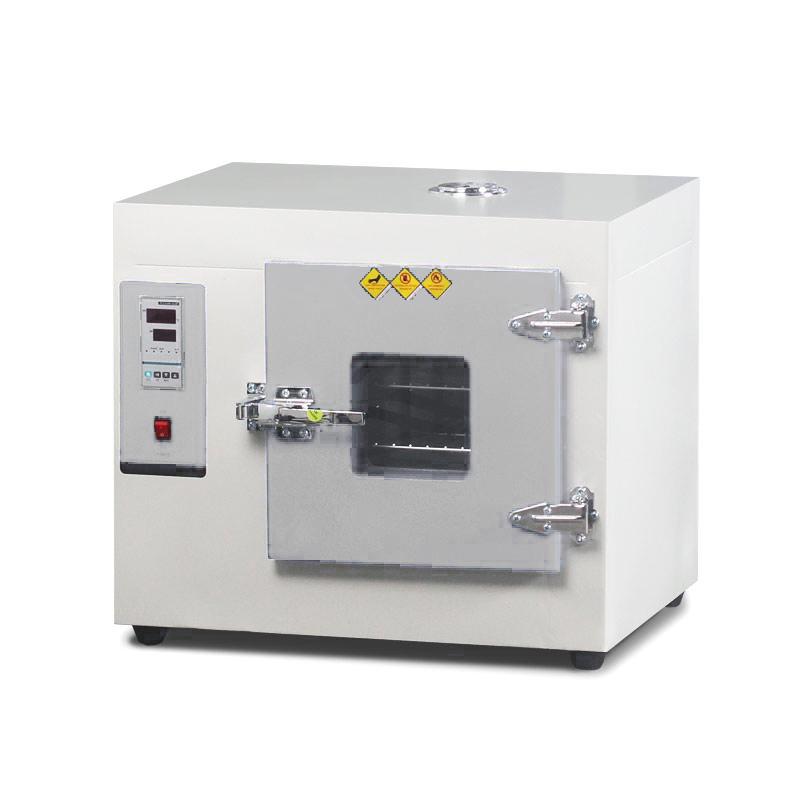

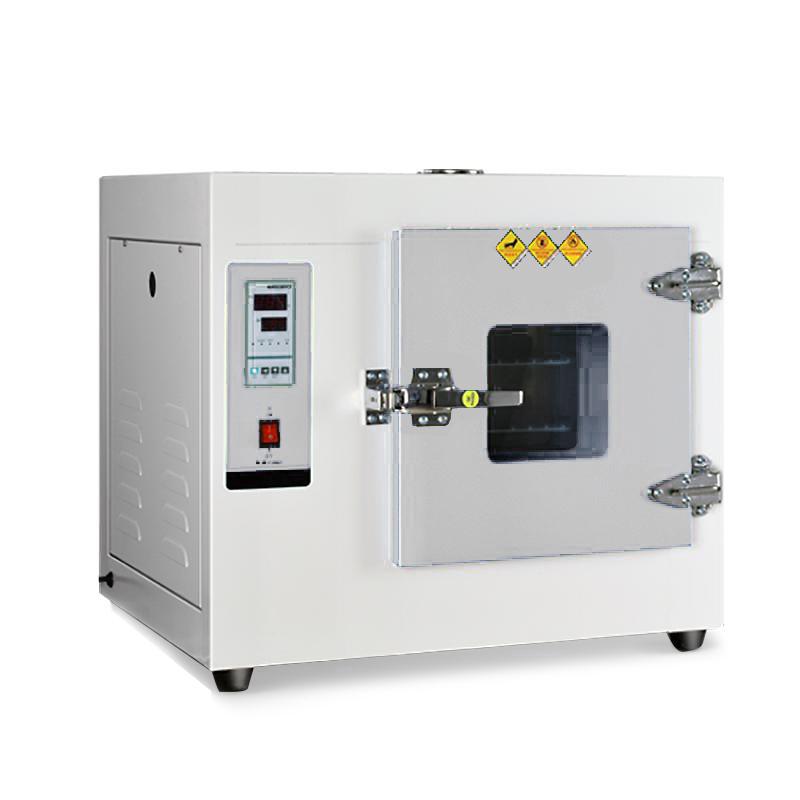

Kenton 101-3A digital display electric air blowing dryer is a drying equipment with microcomputer intelligent PID digital display thermostat, suitable for routine tests such as drying, baking, heat treatment and heating in industrial and mining enterprises, laboratories and R & D institutions. The model Inner chamber dimensions are 750 × 600 × 500mm, Temperature range is RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Fluctuation +/- 2%, Power 2~ 3Kw, Voltage 220V.
Features
1. The thermostat uses a microcomputer intelligent PID digital display for accurate temperature control.
2. The shell is painted with metallic paint, and the overall design is beautiful and elegant.
3. The hot air circulation system consists of low-noise fans and air ducts.
4. The liner is made of galvanized steel sheet.
5. The height and quantity of shelves in the studio can be adjusted to facilitate access to samples of different specifications.
6. The box door is equipped with a double-decked tempered Glass observation window, which can clearly observe the contents of the box.
Principle
The drying oven is heated by electric heating elements, and the hot air circulation system is composed of low-noise fans and air ducts, so that the temperature inside the studio is evenly distributed, and the microcomputer intelligent PID thermostat precisely controls the temperature within the set range to realize functions such as drying and baking.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Place the device in a smooth and ventilated place and connect it to the power supply.
2. Open the box door, adjust the shelf height and quantity as needed, and place the sample.
3. Close the box door and set the required temperature through the microcomputer intelligent PID thermostat.
4. Start the equipment and start heating and hot air circulation.
5. Monitor the sample status through the observation window, and turn off the power after the operation is completed.
Notice
• It is not recommended to use it uninterrupted for a long time.
• Temperature uniformity and high water content samples are not recommended.
• For more expensive samples, it is recommended to install an independent temperature limiting controller.
• Not suitable for volatile, flammable, explosive and other items to avoid explosion.
