Overview

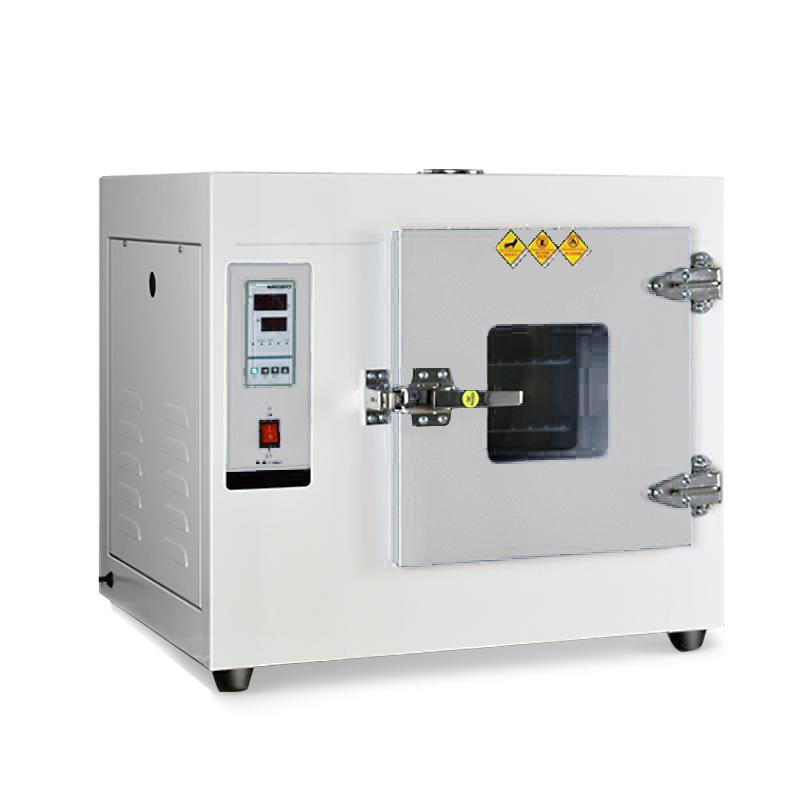

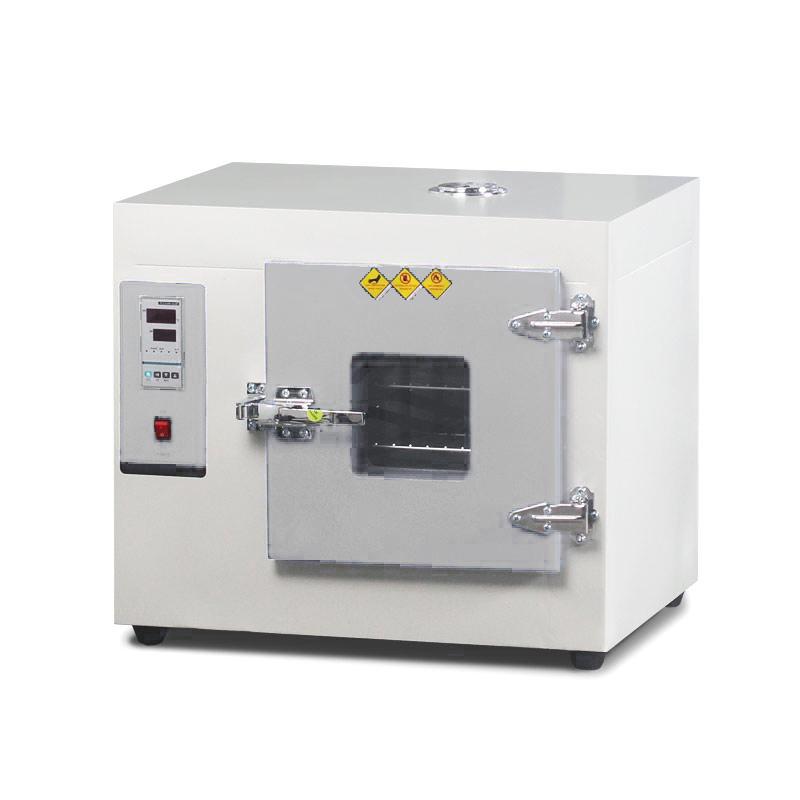

Kenton 101-5A digital display electric air blowing dryer is a drying equipment specially designed for industrial and mining enterprises, laboratories and R & D institutions, using microcomputer intelligent PID digital display thermostat, Temperature range RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, suitable for drying, baking, heat treatment and other routine operations.
Features
1. The thermostat can be selected from Dial or microcomputer smart PID digital display two types
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be selected from mirror stainless steel or galvanized steel plate
5. The height and number of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven generates heat through electric heating elements, and the hot air circulation system composed of low-noise fans and air ducts makes the temperature inside the studio evenly distributed. The microcomputer intelligent PID thermostat precisely adjusts the temperature to achieve a stable heating process.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, workshops
Steps
1. Place the device in a smoothly ventilated place and connect it to the power supply
2. Open the box door and adjust the shelf height and quantity as needed
3. Place the sample and close the box door
4. Set the required temperature and time parameters
5. Start the equipment and start the heating process
6. Monitor sample status through the observation window
7. Turn off the power after completion, and remove the sample after chilling down
Notice
• It is not recommended to use it uninterrupted for a long time
• Temperature uniformity requirements and high water content samples are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
• Power supply voltage matching before use (380V for 101-5A models)
• Pay attention to the high temperature surface during operation to avoid burns
