Overview

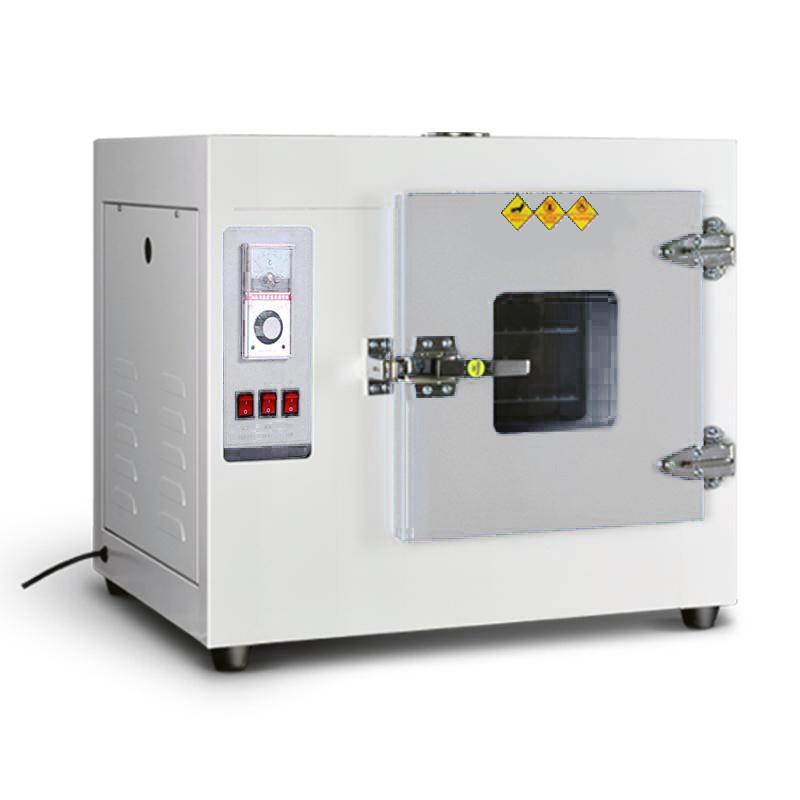

The Kenton 101-1S Dial electric air blowing dryer is a drying device for industrial and mining enterprises, laboratories and R & D institutions, providing drying, baking, heat treatment and heating functions. This model features a Dial thermostat with a Temperature range of RT + 5 to 300 ° C, Temperature Accuracy +/- 1 ° C, Fluctuation +/- 1%, Inner chamber dimensions of 450 × 450 × 350mm, and the liner is stainless steel.
Features
1. The thermostat can be selected from Dial or microcomputer smart PID digital display two types
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be selected from mirror stainless steel or galvanized steel plate
5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
Principle
The drying oven is heated by an electric heating element, combined with a hot air circulation system composed of a low-noise fan and an air duct, to achieve a uniform temperature distribution in the working room. The Dial thermostat is used to set and maintain the temperature, ensuring stable operation within the range of RT + 5 to 300 ° C.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Connect the power supply to ensure that the voltage meets the equipment requirements (220V).
2. Adjust shelf height and quantity as needed
3. Set the desired temperature through the Dial thermostat
4. Start the device, observe that the temperature stabilizes and put in the sample.
5. Turn off the power after use and clean the studio
Notice
• It is not recommended to use it uninterrupted for a long time
• Temperature uniformity requirements and high water content samples are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
