Overview

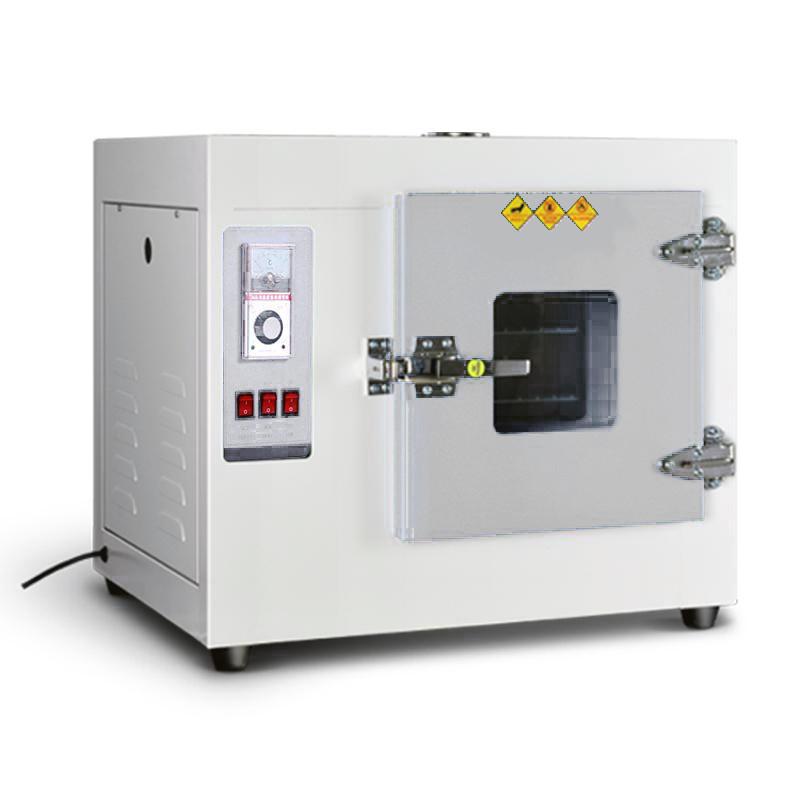

The Kenton 101-3S Dial electric air blowing dryer is a drying device for industrial and mining enterprises, laboratories and R & D institutions, providing drying, baking, heat treatment and heating functions. This model features a stainless steel liner with a Temperature range of RT + 5~ 300 ° C, Temperature Accuracy +/- 1 ° C, Fluctuation +/- 2%, suitable for routine test use.
Features
1. The thermostat can be selected from Dial or microcomputer smart PID digital display two types
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4. The liner is divided into two types: mirror stainless steel and galvanized steel

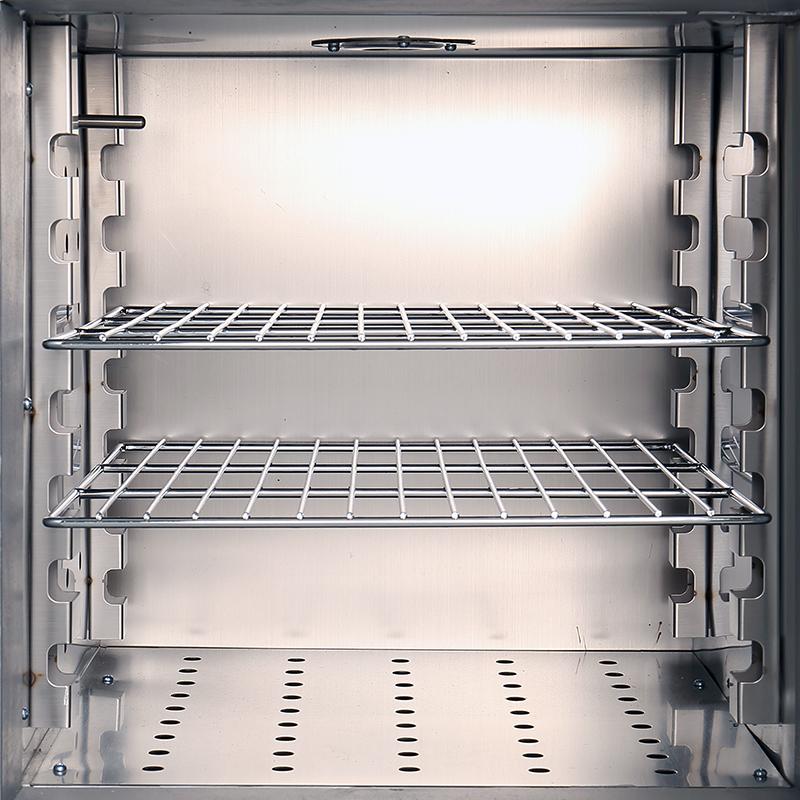

5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven is heated by an electric heating element and uniformly heated by a hot air circulation system consisting of a low-noise fan and an air duct. The temperature is precisely controlled by a thermostat (Dial or microcomputer intelligent PID) to ensure that the temperature in the working room is stable within the set range.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, workshops
Steps
1. Connect the power supply and ensure that the voltage matches (220V).
2. Adjust the height and number of shelves in the studio to fit the sample
3. Set the desired temperature through the Dial thermostat
4. Start the device and observe the temperature change
5. Turn off the power after use and clean the studio
Notice
• It is not recommended to use it uninterrupted for a long time
• Temperature uniformity requirements and high water content samples are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
