Overview

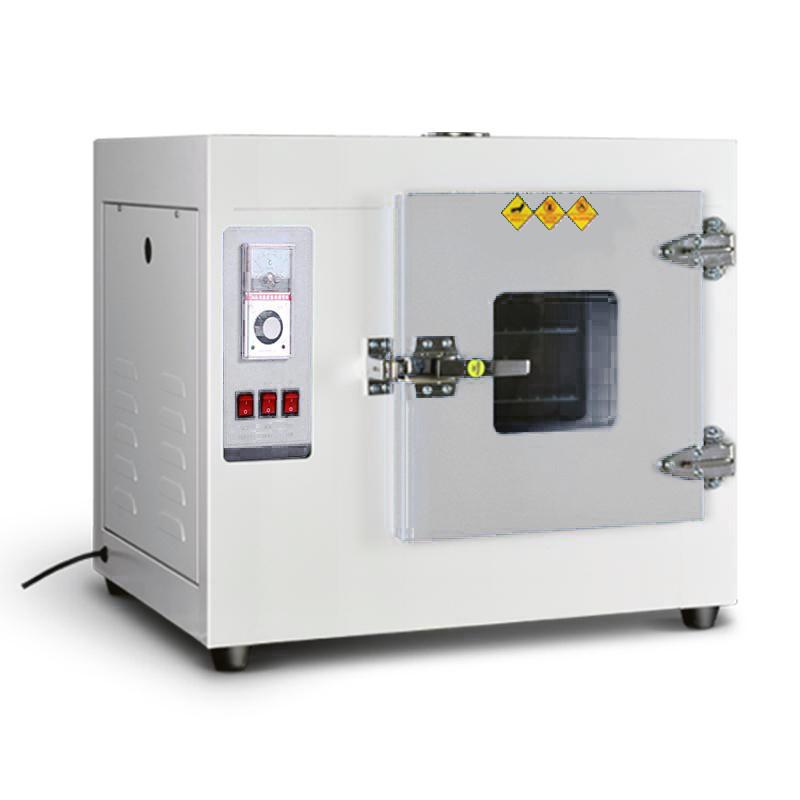

The Kenton 101-4S Dial electric air blowing dryer is a drying device for industrial and mining enterprises, laboratories and R & D institutions, providing drying, baking, heat treatment and heating functions. This model features stainless steel liner, Temperature range is RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Fluctuation +/- 2%, Indoor size is 1000 × 800 × 800mm, Power supply voltage 380V, Power input 3~ 4.8Kw.
Features
1. The thermostat can be selected from Dial or microcomputer smart PID digital display.
2. The shell is painted with metallic paint, and the overall design is beautiful and elegant.
3. The hot air circulation system consists of low-noise fans and air ducts.
4. The liner can be selected from mirror stainless steel or galvanized steel plate.

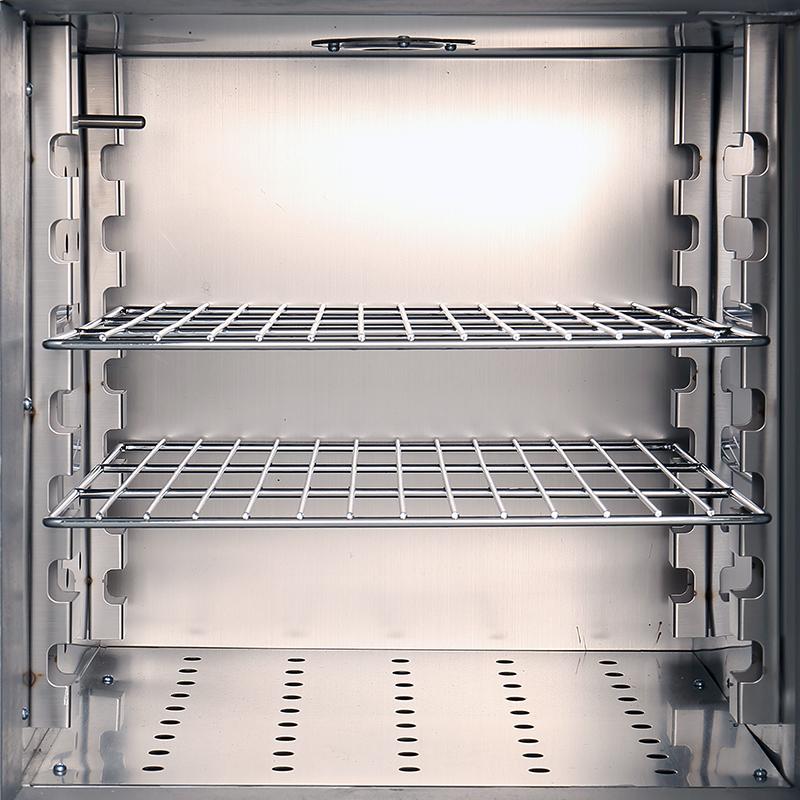

5. The height and quantity of shelves in the studio can be adjusted to facilitate access to samples of different specifications.
6. The box door is equipped with a double-decked tempered Glass observation window, which can clearly observe the contents of the box.
Principle
The drying oven is heated by an electric heating element, combined with a hot air circulation system (including a low-noise fan and air duct) to achieve uniform heating and air circulation for drying, baking and heat treatment processes. The Dial thermostat is used to set and monitor the temperature, ensuring stable operation in the range of RT + 5~ 300 ° C.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, workshops
Steps
1. Place the device in a smooth and ventilated place and connect it to a power supply (380V).
2. Adjust the height and quantity of shelves in the studio as needed.
3. Use the Dial thermostat to set the desired temperature (RT + 5 to 300 ° C).
4. Turn on the equipment and start the hot air circulation system for heating.
5. Monitor the status of the items in the box through the observation window, and turn off the power after the operation is completed.
Notice
• It is not recommended to use it uninterrupted for a long time.
• Temperature uniformity and high water content samples are not recommended.
• For more expensive samples, it is recommended to install an independent temperature limiting controller.
• Not suitable for volatile, flammable, explosive and other items to avoid explosion.
