Overview

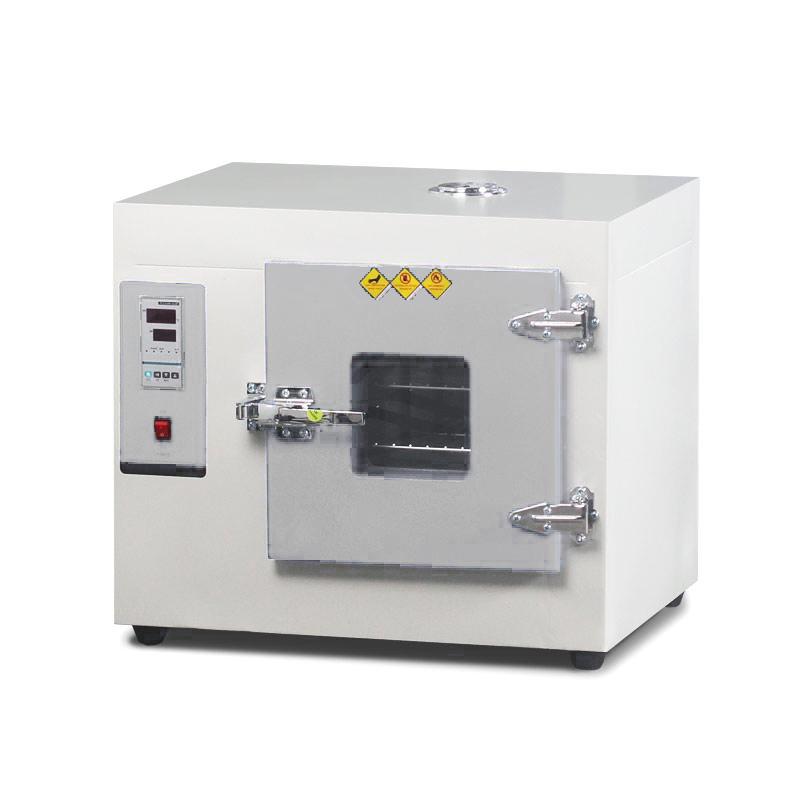

Kenton 101-1AS digital display electric air blowing dryer is a drying equipment with microcomputer intelligent PID digital display thermostat, with hot air circulation system, suitable for drying, baking, heat treatment and other operations in industrial and mining enterprises, laboratories and R & D institutions. Inner chamber dimensions are 450 × 450 × 350mm, Temperature range RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Fluctuation +/- 1%.
Features
1. The thermostat can be selected from Dial or microcomputer smart PID digital display two types
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4. The liner is divided into two types: mirror stainless steel and galvanized steel

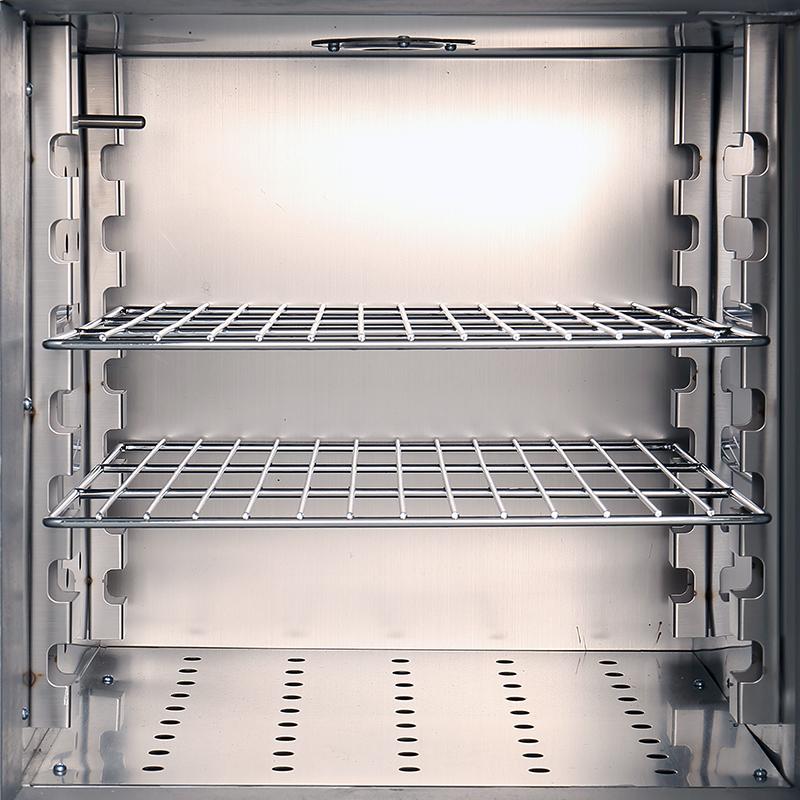

5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven generates heat through electric heating elements, and cooperates with a hot air circulation system composed of low-noise fans and air ducts to distribute the temperature evenly inside the studio. The microcomputer intelligent PID thermostat precisely adjusts the temperature and keeps the set temperature stable.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, workshops
Steps
1. Place the device in a smoothly ventilated place and connect it to the power supply
2. Open the box door and adjust the shelf height and quantity as needed
3. Place the sample and close the box door
4. Set the required temperature and time (e.g. using the timing function)
5. Start the device and monitor the sample status through the observation window
6. After the work is completed, turn off the power and take out the sample after chilling down
Notice
• It is not recommended to use it uninterrupted for a long time
• Temperature uniformity requirements and high water content samples are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
• Before use, please confirm that the Power supply voltage is consistent with the equipment requirements
• Avoid direct contact with high-temperature components during operation
